Premium dual-adhesive industrial tape for silicone bonding with acrylic and silicone adhesives, ideal for gasketing, filters, and foam applications with exceptional temperature and chemical resistance.

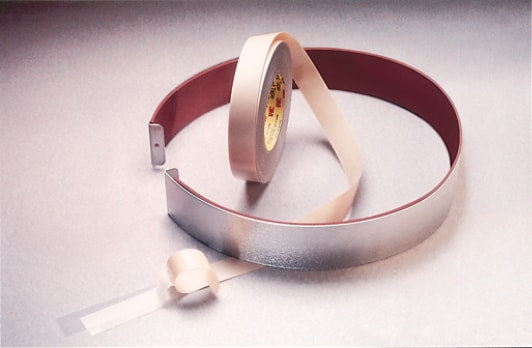

3M™ Double Coated Tape 9731 is a premium industrial adhesive tape specifically engineered for demanding applications requiring bonding of silicone materials to various substrates. This tape features a unique dual-adhesive system with high-performance acrylic adhesive (3M™ Adhesive 350) on the face side and silicone adhesive on the liner side, making it ideal for specialized applications such as silicone gasketing, keypad attachment, and printer toner cartridge refurbishing. The tape is constructed with a 1 mil clear polyester film (PET) carrier that provides exceptional dimensional stability and ease of die-cutting and lamination.
Designed for industrial and occupational use, this double coated tape combines silicone-based and rubber-based adhesives on a flexible, strong polyester carrier to deliver excellent performance across a wide range of applications. The 3M™ Adhesive 350 on the face side provides very high adhesion to a wide variety of materials, while the silicone adhesive on the back side bonds exceptionally well to silicone rubber and elastomers. The tape operates effectively across temperature ranges from -40°F to 250°F (-40°C to 121°C), offering superior temperature and chemical resistance suitable for aerospace, automotive, electronics, and general industrial applications.
The double-linered construction features a 58# polycoated kraft paper (PCK) liner (4.2 mil) on the primary side and a 3 mil polyester film (PET) liner on the secondary side, both providing reliable performance for industrial applications including die-cutting and automated dispensers. This configuration helps reduce edge curl and protects the tape from humidity extremes. With 72 rolls per case, each roll measuring 1/2 inch wide by 36 yards long at 5.5 mil total thickness, this product is ideal for gasketing, filters, and silicone foam and rubber applications where instant adhesion and quick application are essential.
Key Features
- Dual adhesive system with high-performance acrylic adhesive on face side and silicone adhesive on liner side
- Exceptional temperature resistance ranging from -40°F to 250°F (-40°C to 121°C)
- Superior chemical and UV resistance for demanding industrial applications
- Double-linered construction with polycoated kraft paper and polyester film liners
- Ideal for silicone gasketing, foam bonding, and silicone keypad attachment
- Clear 1 mil polyester film carrier provides dimensional stability and easy die-cutting
- Instant adhesion for quick application and process efficiency
- Excellent holding power to silicone rubber and elastomers
- Reduces edge curl and protects from humidity extremes
- 72 rolls per case for industrial bulk purchasing
Technical Specifications
| Specification |
Value |
| Product Number | 9731 |
| Tape Type | Double Coated |
| Adhesive Type | Acrylic/Silicone |
| Face Side Adhesive | High Performance Acrylic Adhesive 350 |
| Back Side Adhesive | Silicone |
| Carrier Material | Polyester Film (PET) |
| Carrier Thickness | 1 mil (0.025 mm) |
| Overall Width | 0.5 in (12.7 mm) |
| Overall Length | 36 yd (32.91 m) |
| Total Thickness | 5.5 mil (0.14 mm) |
| Face Side Adhesive Thickness | 1.6 mil (0.041 mm) |
| Back Side Adhesive Thickness | 2.9 mil (0.07 mm) |
| Primary Liner | 58# Polycoated Kraft Paper (PCK), 4.2 mil |
| Primary Liner Color | Tan |
| Secondary Liner | Polyester Film (PET), 2.9 mil |
| Secondary Liner Color | Transparent |
| Product Color | Transparent |
| Core Size | 3 in (76.2 mm) |
| Maximum Operating Temperature | 250°F (121°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Shelf Life | 18 months from date of manufacture |
| Units per Case | 72 rolls |
| Product Form | Roll |
| Assembly Type | Gasket Attachment |
| Indoor/Outdoor Use | Both |
| UPC Code | 00051138953676 |
Order 3M Double Coated Tape 9731 Clear 1/2 inch 36 Yard Roll at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
