High-performance double-coated tape with acrylic and silicone adhesives for bonding silicone elastomers, foams, and gaskets. Features exceptional temperature and chemical resistance from -40°F to 250°F. Ideal for gasketing, filtration, and industrial assembly applications.

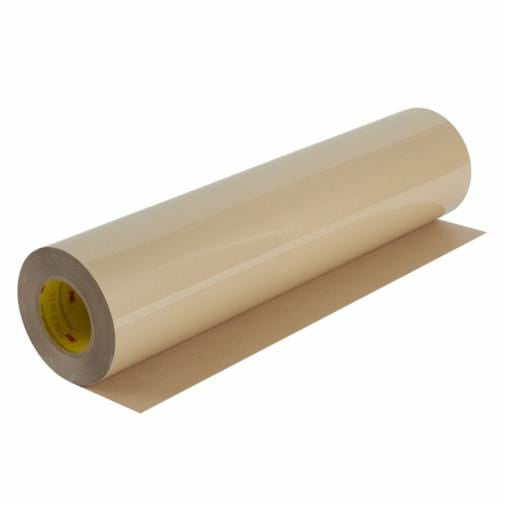

3M™ Double Coated Tape 9731 is a high-performance industrial adhesive tape specifically engineered for demanding applications involving silicone materials and elastomers. This specialized tape features a unique combination of acrylic and silicone adhesives applied to both sides of a 1 mil clear polyester (PET) carrier, making it ideal for bonding silicone rubber elastomers, foams, and gaskets to a wide range of substrates. The face side is coated with 3M™ Adhesive 350, a high-performance acrylic adhesive that provides exceptional adhesion to diverse materials, while the liner side features a silicone adhesive specifically formulated to bond effectively to silicone substrates.
Developed for industrial and occupational use, this double-coated tape delivers superior performance across multiple demanding applications including gasketing, filtration, and silicone component assembly. The tape operates reliably across an extended temperature range from -40°F to 250°F, providing excellent UV resistance, solvent resistance, and holding power in both high and low temperature environments. The thin, flexible polyester carrier ensures dimensional stability while facilitating easy die-cutting and lamination processes, making it suitable for both manual application and automated dispensing systems.
The dual-liner construction features a 58# polycoated kraft paper (PCK) liner on the primary side and a 3 mil polyester film liner on the secondary side, both of which help reduce edge curl and protect the tape from humidity extremes. With an 18-month shelf life and proven performance in automotive, electronics, marine, and general industrial applications, 3M™ Double Coated Tape 9731 provides instant adhesion for quick assembly processes while maintaining reliable long-term bond strength in harsh operating conditions.
Key Features
- Dual adhesive system with acrylic (face side) and silicone (liner side) for specialized bonding applications
- Exceptional temperature performance operating range from -40°F (-40°C) to 250°F (121°C)
- Superior UV resistance and excellent solvent resistance for harsh industrial environments
- Double-linered construction with polycoated kraft paper and polyester film for reduced edge curl
- Thin 1 mil clear polyester carrier provides dimensional stability and ease of die-cutting and lamination
- Instant adhesion for quick assembly processes with reliable long-term bond strength
- Suitable for both manual application and automated dispensing systems
- Ideal for silicone gaskets, filters, foams, and elastomer bonding applications
Technical Specifications
| Specification |
Value |
| Product Number | 9731 |
| 3M ID | 7100133100 |
| Adhesive Type | Acrylic/Silicone (Face: High Performance Acrylic 350, Back: Silicone) |
| Backing Material | Polyester (PET) |
| Carrier Thickness | 1 mil (0.025 mm) |
| Total Tape Thickness without Liner | 5.5 mil (0.14 mm) |
| Overall Width | 0.315 in (8 mm) |
| Face Side Adhesive Thickness | 1.6 mil (0.041 mm) |
| Back Side Adhesive Thickness | 2.9 mil (0.07 mm) |
| Primary Liner | 58# Polycoated Kraft Paper (PCK), 4.2 mil (0.17 mm) thick, Tan color |
| Secondary Liner | Polyester Film (PET), 3 mil thick |
| Product Color | Transparent/Clear |
| Core Size | 3 in (76.2 mm) |
| Maximum Operating Temperature | 250°F (121°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Product Form | Roll |
| Number of Adhesive Sides | Double-sided |
| Shelf Life | 18 months from date of manufacture |
| Indoor/Outdoor Use | Both |
| Smallest Saleable Unit | Roll |
| Industries | Automotive, Electronics, General Industrial, Marine, Metalworking, Transportation, Woodworking |
| Recommended Applications | Gasketing, Filters, Silicone foams and rubber, Silicone keypad attachment, Printer toner cartridge refurbishing |
| Substrate Compatibility | Silicone rubber elastomers, foam, HSE and LSE plastics, various industrial substrates |
| Brand | 3M™ |
| Use Classification | Industrial/Occupational use only - Not for consumer sale or use |
Order 3M Double Coated Tape 9731 Clear 5.5 mil Roll at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
