Description

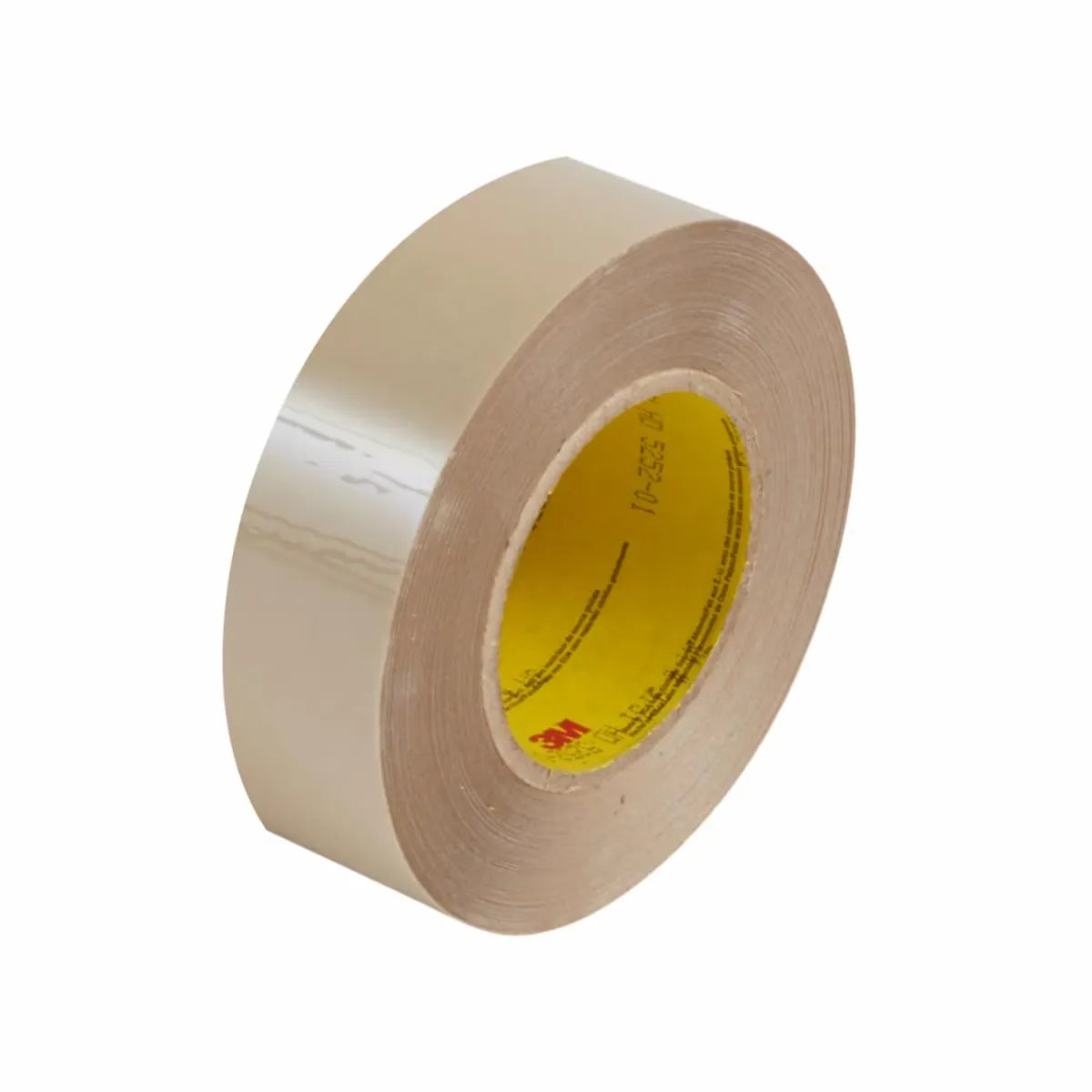

Shop 3M Double Coated Tape 9731 Clear 3 inch 36 yard In Iraq Best Prices

Premium dual-adhesive double coated tape with acrylic and silicone adhesives for bonding silicone materials, gaskets, and foam in demanding industrial applications with exceptional temperature and chemical resistance.

3M™ Double Coated Tape 9731 is a high-performance adhesive tape specifically engineered for demanding applications requiring silicone material bonding. This innovative tape features a unique dual-adhesive system with 3M™ Adhesive 350 (acrylic-based) on the face side and silicone adhesive on the liner side, making it ideal for attaching silicone rubber elastomers, foam, and gaskets to various substrates. The tape is constructed with a 1 mil clear polyester film (PET) carrier that provides excellent dimensional stability and superior handling characteristics. The 3M™ Double Coated Tape 9731 delivers exceptional performance across a wide range of industrial applications including gasketing, filtration, and silicone component assembly. Its dual-liner system consists of a 58# polycoated kraft paper (PCK) primary liner and a 3 mil polyester film secondary liner, both engineered to minimize edge curl and protect against humidity extremes. The tape operates reliably at temperatures ranging from -40°F to 250°F (-40°C to 121°C), providing outstanding temperature and chemical resistance for aerospace, automotive, electronics, and general industrial applications. With a total thickness of 5.5 mil and dimensions of 3 inches wide by 36 yards long, this case contains 12 rolls of premium-grade double-coated tape. The product is specifically formulated for industrial and occupational use, offering instant adhesion, excellent holding power, superior UV resistance, and reliable performance in automated dispensing systems. Whether used for pre-applied gasketing materials, filter assembly, or silicone keypad attachment, 3M™ Double Coated Tape 9731 provides the specialized bonding solution professionals demand.

Key Features

Dual-adhesive system with 3M™ Adhesive 350 on face side and silicone adhesive on liner side for specialized bonding applications
Clear 1 mil polyester film (PET) carrier provides dimensional stability and excellent handling with ease of die-cutting and lamination
Ideal for attaching silicone rubber elastomers, foam, and gaskets to various substrates including HSE and LSE materials
Double-linered design with 58# polycoated kraft paper primary liner and 3 mil PET secondary liner reduces edge curl and protects from humidity extremes
Exceptional temperature range from -40°F to 250°F with outstanding UV resistance, solvent resistance, and holding power for demanding industrial applications

Technical Specifications

Specification	Value
Part Number	9731
Brand	3M™
Product Type	Double Coated Tape
Tape Type	Double Coated with Dual Adhesive System
Overall Width (Imperial)	3 in
Overall Width (Metric)	76.2 mm
Overall Length (Imperial)	36 yd
Overall Length (Metric)	33 m
Overall Thickness (Imperial)	5.5 mil
Total Tape Thickness without Liner (Metric)	0.14 mm
Backing (Carrier) Material	Polyester Film (PET)
Backing (Carrier) Thickness (Imperial)	1 mil
Backing (Carrier) Thickness (Metric)	0.025 mm
Face Side Adhesive Type	High Performance Acrylic Adhesive 350
Face Side Adhesive Thickness (Imperial)	1.6 mil
Face Side Adhesive Thickness (Metric)	0.041 mm
Back Side Adhesive Type	Silicone
Back Side Adhesive Thickness (Imperial)	2.9 mil
Back Side Adhesive Thickness (Metric)	0.07 mm
Primary Liner	58# Polycoated Kraft Paper (PCK)
Primary Liner Color	Tan
Primary Liner Thickness (Imperial)	4.2 mil
Primary Liner Thickness (Metric)	0.17 mm
Secondary Liner	Polyester Film
Secondary Liner Color	Transparent
Secondary Liner Thickness (Imperial)	2.9 mil
Secondary Liner Thickness (Metric)	0.07 mm
Product Color	Transparent
Product Form	Roll
Core Size (Imperial)	3 in
Core Size (Metric)	76.2 mm
Units per Case	12 rolls
Smallest Saleable Unit	Roll
Maximum Operating Temperature (Fahrenheit)	250°F
Maximum Operating Temperature (Celsius)	121°C
Minimum Operating Temperature (Fahrenheit)	-40°F
Minimum Operating Temperature (Celsius)	-40°C
Indoor/Outdoor	Both
Assembly Type	Gasket Attachment
Shelf Life (Months)	12-18 months from date of manufacture
Master Size Length (Metric)	98.8 m
Master Size Width (Metric)	122 cm
UPC Code	00051138954086
3M ID	7000049100
Industries	Aerospace, Appliance, Automotive, Converter Solutions, Electronics, General Industrial, Medical, Metalworking, Military & Government, Oil & Gas, Signage, Specialty Vehicles, Transportation
Recommended Applications	Gasketing, Filters, Silicone foams and rubber, Silicone keypad attachment, Printer toner cartridge refurbishing
Use Environment	Industrial/Occupational use only - Not for consumer sale or use

Order 3M Double Coated Tape 9731 Clear 3 inch 36 yard at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
