Premium dual-adhesive industrial tape with acrylic and silicone adhesives for bonding silicone elastomers, foam, and gaskets with exceptional temperature and chemical resistance.

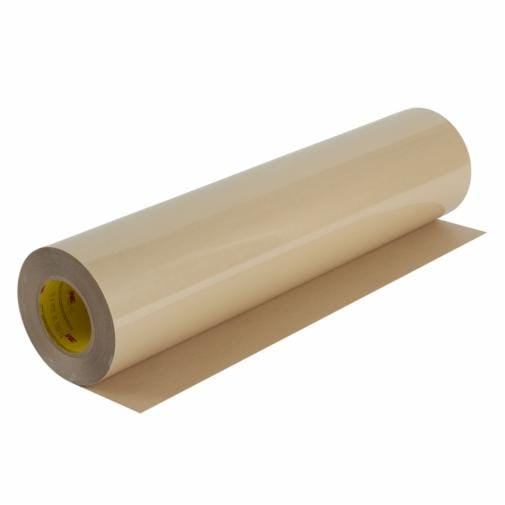

3M™ Double Coated Tape 9731 is a high-performance industrial adhesive tape specifically engineered for demanding applications involving silicone materials and elastomers. This specialized tape features a unique dual-adhesive system with 3M™ Adhesive 350 (acrylic-based) on the face side and silicone adhesive on the liner side, combined with a 1 mil clear polyester film (PET) carrier. The tape measures 38.5 inches wide by 108 yards long with a total thickness of 5.5 mil, making it ideal for large-scale industrial bonding applications.
The differential adhesive design of this double coated tape makes it exceptionally suitable for attaching silicone rubber elastomers, foam gaskets, and other silicone-based components to a wide range of substrates. The high-performance acrylic adhesive on the face side provides exceptional temperature and chemical resistance, with operating temperatures ranging from -40°F to 250°F (-40°C to 121°C). The silicone adhesive on the back side bonds excellently to silicone substrates, making it perfect for applications such as silicone keypad attachment, printer toner cartridge refurbishing, and gasket assembly.
This industrial-grade tape comes with dual liners: a 4.2 mil polycoated kraft paper (PCK) primary liner and a 2.9 mil polyester film secondary liner, both providing reliable performance and protection during storage and handling. The thin polyester carrier ensures dimensional stability and excellent handling characteristics, with ease of die-cutting and lamination capabilities. It is designed for industrial and occupational use only and is not intended for consumer applications.
Key Features
- Dual adhesive system with acrylic (face) and silicone (back) adhesives for specialized bonding
- 3M™ Adhesive 350 provides exceptional temperature and chemical resistance performance
- Ideal for silicone rubber elastomers, foam, and gasket attachment applications
- Clear 1 mil polyester film (PET) carrier ensures dimensional stability and ease of die-cutting
- Double-linered with polycoated kraft paper and polyester film for reliable industrial performance
- Operating temperature range from -40°F to 250°F (-40°C to 121°C)
- Excellent UV resistance and solvent resistance for demanding environments
- Suitable for automated dispensing and manual application methods
- Instant adhesion provides quick process advancement in manufacturing
- Pre-applicable to gasketing materials for die-cut parts production
Technical Specifications
| Specification |
Value |
| Product Number | 9731 |
| Overall Width (Imperial) | 38.5 inches |
| Overall Width (Metric) | 977.9 mm |
| Overall Length (Imperial) | 108 yards |
| Overall Length (Metric) | 98.75 meters |
| Total Tape Thickness | 5.5 mil (0.14 mm) |
| Carrier Material | Polyester Film (PET) |
| Carrier Thickness | 1 mil (0.025 mm) |
| Face Side Adhesive Type | High Performance Acrylic Adhesive 350 |
| Face Side Adhesive Thickness | 1.6 mil (0.041 mm) |
| Back Side Adhesive Type | Silicone |
| Back Side Adhesive Thickness | 2.9 mil (0.07 mm) |
| Primary Liner Material | 58# Polycoated Kraft Paper (PCK) |
| Primary Liner Thickness | 4.2 mil (0.17 mm) |
| Primary Liner Color | Tan |
| Secondary Liner Material | Polyester Film (PET) |
| Secondary Liner Thickness | 2.9 mil (0.07 mm) |
| Secondary Liner Color | Transparent |
| Product Color | Transparent/Clear |
| Product Form | Roll |
| Core Size | 3 inches (76.2 mm) |
| Units per Case | 1 roll |
| Maximum Operating Temperature | 250°F (121°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Shelf Life | 18 months from date of manufacture |
| Tape Type | Double Coated |
| Assembly Type | Gasket Attachment |
| Indoor/Outdoor Use | Both |
| UPC Code | 00051138955694 |
| 3M ID | 7010312670 |
