High-performance dual-adhesive double coated tape with acrylic and silicone formulation for bonding silicone materials, elastomers, and foam. Features exceptional temperature and chemical resistance with instant adhesion for gasketing and industrial applications.

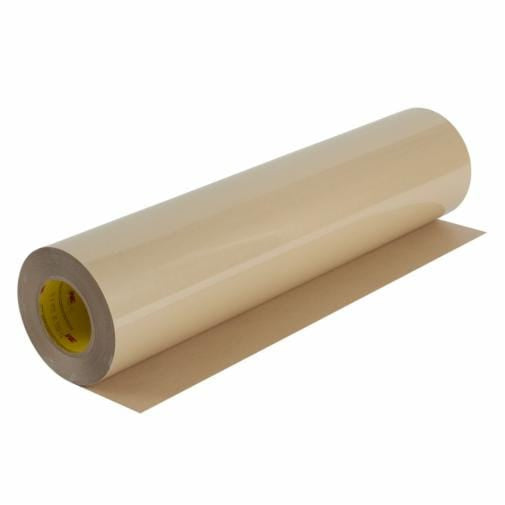

3M™ Double Coated Tape 9731 is a high-performance adhesive tape specifically engineered for demanding applications involving silicone materials and elastomers. This specialized tape features a unique combination of acrylic and silicone adhesives applied to both sides of a thin, flexible 1 mil clear polyester film (PET) carrier. The face side is coated with 3M™ Adhesive 350, a high-performance acrylic adhesive that provides exceptional adhesion to a wide variety of materials, while the liner side features a silicone-based adhesive that bonds exceptionally well to silicone substrates and rubber materials.
The tape comes with dual liners for optimal performance and ease of application: a 58# polycoated kraft paper (PCK) liner on the primary side and a 3 mil polyester film (PET) liner on the secondary side. These liners provide reliable performance for industrial applications including die-cutting and automated dispensers, while also helping to reduce edge curl and protect the tape from humidity extremes. The 1 mil clear polyester carrier provides excellent dimensional stability and improved handling characteristics, making it ideal for precision die-cutting and lamination processes.
3M™ Double Coated Tape 9731 is ideal for gasketing applications, filter assembly, and bonding silicone foams and rubber components. It delivers instant adhesion, exceptional temperature resistance up to 250°F (121°C), outstanding chemical and solvent resistance, very good holding power, and excellent UV resistance. This tape is perfect for pre-applying to gasketing material that is then die-cut to provide finished parts, as well as for replacing gaskets or bonding and sealing simultaneously in air and liquid filters, fluid handling equipment, and heat exchangers.
Key Features
- Dual adhesive system with acrylic on face side and silicone on liner side for specialized bonding applications
- 3M™ Adhesive 350 provides exceptional temperature resistance up to 250°F (121°C) and outstanding chemical resistance
- Silicone adhesive on back side bonds exceptionally well to silicone substrates, rubber, and elastomers
- Double-lined construction with 58# polycoated kraft paper and 3 mil PET liner for reliable industrial performance
- 1 mil clear polyester film carrier provides dimensional stability, easy die-cutting, and excellent lamination properties
- Ideal for gasketing, filter assembly, and bonding silicone foams and rubber components
- Reduces edge curl and protects tape from humidity extremes
- Excellent UV resistance and solvent resistance for demanding environments
- Suitable for both manual hand application and automated dispensers
- Pre-applicable to gasketing material for die-cutting and instant adhesion processes
Technical Specifications
| Specification |
Value |
| Product Number | 9731 |
| Overall Width | 18 inches (457.2 mm) |
| Overall Length | 108 yards (98.75 meters) |
| Core Size | 3 inches (76.2 mm) |
| Backing Material | Polyester Film (PET) |
| Carrier Thickness | 1 mil (0.025 mm) |
| Total Tape Thickness without Liner | 5.5 mil (0.14 mm) |
| Face Side Adhesive Type | High Performance Acrylic Adhesive 350 |
| Face Side Adhesive Thickness | 1.6 mil (0.041 mm) |
| Back Side Adhesive Type | Silicone |
| Back Side Adhesive Thickness | 2.9 mil (0.07 mm) |
| Primary Liner Material | 58# Polycoated Kraft Paper (PCK) |
| Primary Liner Thickness | 4.2 mil (0.17 mm) |
| Primary Liner Color | Tan |
| Secondary Liner Material | Polyester Film (PET) |
| Secondary Liner Thickness | 2.9 mil (0.07 mm) |
| Secondary Liner Color | Transparent |
| Product Color | Transparent |
| Maximum Operating Temperature | 250°F (121°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Adhesive Type | Acrylic/Silicone |
| Assembly Type | Gasket Attachment |
| Product Form | Roll |
| Units per Case | 1 Roll |
| Tape Type | Double Coated |
| Shelf Life | 18 Months |
| Indoor/Outdoor Use | Both |
| UPC Code | 00051138957469 |
| 3M ID | 7010312679 |
| Brand | 3M™ |
| Recommended Applications | Gasketing, Filters, Silicone Foams and Rubber |
| Industries | Aerospace, Appliance, Automotive, Electronics, General Industrial, Medical, Metalworking, Military & Government, Oil & Gas, Signage, Transportation |
