High-performance double-coated industrial tape with solvent-free acrylic adhesive, PET carrier, and superior bonding to plastics, foams, and wood. Temperature rated to 250°F short-term and 150°F long-term.

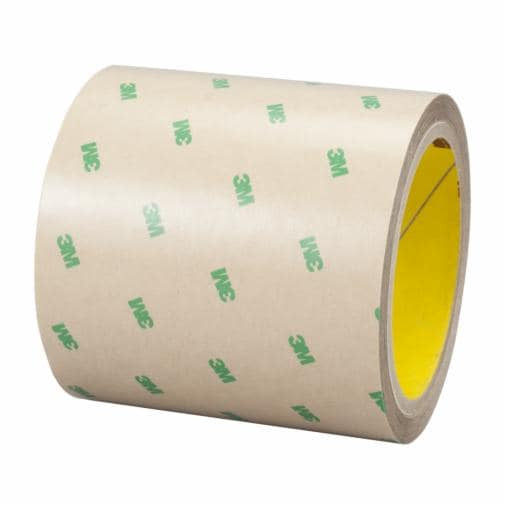

3M Double Coated Tape 9690+ is a premium industrial-grade adhesive tape designed for demanding bonding applications across multiple industries. This versatile tape features excellent adhesion to a wide variety of substrates including plastics, foams, wood, and other materials commonly used in manufacturing and assembly operations. The polyester film (PET) carrier provides superior dimensional stability and improved handling during slitting and die-cutting operations, making it ideal for precision applications.
The tape utilizes a solvent-free acrylic adhesive (3M Adhesive 300MP+) that delivers consistent, permanent bonding with excellent shear strength at elevated temperatures. With a total thickness of 5.5 mil and supplied with an 83 lb. polycoated kraft liner, this tape offers reliable performance in both short-term and long-term applications. Temperature performance extends up to 250°F (121°C) for short-term exposure and 150°F (66°C) for long-term exposure, making it suitable for diverse industrial environments.
Recommended for cellular phone lens attachment, foam lamination, nameplate assembly, appliques, decorative trim, and thermal/sound dampening applications in electronics and appliance manufacturing. The product is supplied in roll configuration and is intended for industrial and occupational use only. With a 24-month shelf life, this double-coated tape provides a reliable solution for manufacturers, converters, and industrial users seeking high-performance bonding solutions.
Key Features
- Excellent adhesion to wide variety of substrates including plastics, foams, wood, and felt materials
- Polyester film (PET) carrier provides dimensional stability and improved handling during processing
- Solvent-free acrylic adhesive (3M Adhesive 300MP+) delivers consistent permanent bonding
- Superior shear strength at elevated temperatures for reliable long-term performance
- Temperature performance up to 250°F (121°C) short-term and 150°F (66°C) long-term exposure
Technical Specifications
| Specification |
Value |
| Product Number | 9690+ |
| 3M ID | 7100308768 |
| Adhesive Type | Solvent-free Acrylic (3M Adhesive 300MP+) |
| Backing Material | Polyester Film (PET) |
| Backing Thickness | 0.5 mil (0.013 mm) |
| Face Side Adhesive Thickness | 2.8 mil (0.071 mm) |
| Back Side Adhesive Thickness | 2.3 mil (0.058 mm) |
| Total Tape Thickness | 5.5 mil (0.14 mm) without liner |
| Primary Liner | 83 lb. Polycoated Kraft Paper |
| Primary Liner Color | Tan |
| Primary Liner Thickness | 6.2 mil (0.157 mm) |
| Product Color | Transparent/Clear |
| Product Form | Roll |
| Application | Bonding |
| Industry | General Industrial |
| Temperature Performance Short-term | 250°F (121°C) |
| Temperature Performance Long-term | 150°F (66°C) |
| Shelf Life | 24 Months |
| Smallest Saleable Unit | Roll |
| Brand | 3M™ |
Order 3M Double Coated Tape 9690+ Clear 5.5 mil Industrial at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
