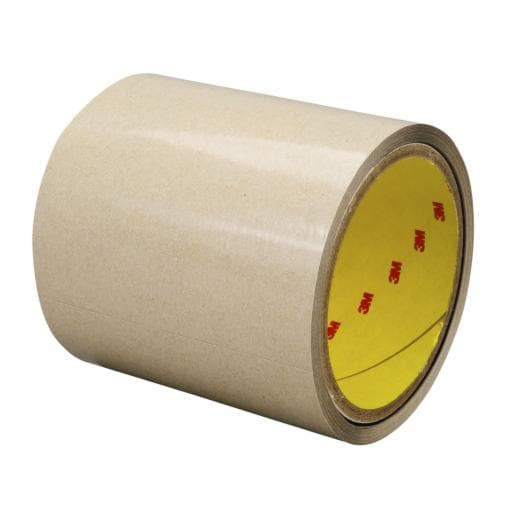

Industrial-grade double-coated clear tape with 3M Quick Bonding Adhesive 360 for superior bonding to plastics, metals, and difficult surfaces. 1/2 inch x 60 yard rolls, 72 per case.
3M™ Double Coated Tape 9629PC is a premium industrial adhesive tape designed for high-performance bonding applications across electronics, automotive, and general industrial sectors. This clear polyester (PET) carrier tape features 3M™ Quick Bonding Adhesive 360, which delivers very high initial bond strength to metals and most plastics, enabling faster cycle times in manufacturing processes. The tape excels at bonding to difficult-to-adhere surfaces including polypropylene, HDPE, LDPE, and powder-coated painted surfaces, making it ideal for applications where traditional fastening methods like screws and rivets are impractical.
The 9629PC tape measures 1/2 inch wide by 60 yards long with a total thickness of 4 mil without liner, providing excellent dimensional stability and improved handling during converting and application. The clear polyester carrier combined with the tan 58# polycoated kraft paper liner ensures superior moisture stability and consistent performance. With a case containing 72 rolls, this product offers significant value for high-volume manufacturing operations requiring reliable, consistent bonding solutions.
This double-coated tape is specifically engineered for industrial and occupational use, offering temperature resistance from -40°C to 93°C. The Quick Bond Acrylic Adhesive 360 formulation provides excellent adhesion to dissimilar materials, making it particularly valuable for bonding metals to plastics and other challenging substrate combinations. Recommended applications include general purpose joining, mounting, splicing, powder-coated painted surfaces, electronics assembly, and automotive manufacturing.
Key Features
- Very high initial bond strength with 3M Adhesive 360 for faster cycle times
- Excellent adhesion to difficult surfaces including HDPE, LDPE, polypropylene and powder-coated paints
- Clear polyester (PET) carrier provides dimensional stability and improved handling
- High bond strength to dissimilar materials such as metals and most plastics
- 58# polycoated kraft paper liner offers improved moisture stability
- Temperature resistant from -40°C to 93°C for diverse industrial applications
- Razor-thin alternative to glue, screws and rivets for joining and mounting
- Ideal for electronics, automotive, and general industrial assembly applications
Technical Specifications
| Specification |
Value |
| Product Number | 9629PC |
| Adhesive Type | Quick Bond Acrylic Adhesive 360 |
| Backing Material | Clear Polyester (PET) |
| Overall Width | 0.5 inches (12.7 mm) |
| Overall Length | 60 yards (54.86 meters) |
| Total Tape Thickness | 4 mil (0.1 mm) without liner |
| Backing Thickness | 0.5 mil (0.013 mm) |
| Face Side Adhesive Thickness | 1.75 mil (0.04 mm) |
| Back Side Adhesive Thickness | 1.75 mil (0.04 mm) |
| Liner Material | 58# Polycoated Kraft Paper (Tan) |
| Minimum Operating Temperature | -40°C (-40°F) |
| Maximum Operating Temperature | 93°C (199°F) |
| Units per Case | 72 rolls |
| Smallest Saleable Unit | Roll |
| Industries | Electronics, General Industrial, Automotive |
| Brand | 3M |
| UPC Code | 00051111919934 |
| 3M ID | 7010335510 |
| Recommended Applications | Powder coated painted surfaces, Most plastics including polypropylene, Electronics, Automotive, General purpose joining, Mounting and splicing |
| Use Classification | Industrial/Occupational use only - Not for consumer sale or use |
Order 3M Double Coated Tape 9629PC Clear 1/2 Inch 60 Yard at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
