Premium clear double-coated industrial tape with 3M Adhesive 360 for high-strength bonding to difficult surfaces including plastics and powder-coated paints. Ideal for electronics, automotive, and manufacturing applications.

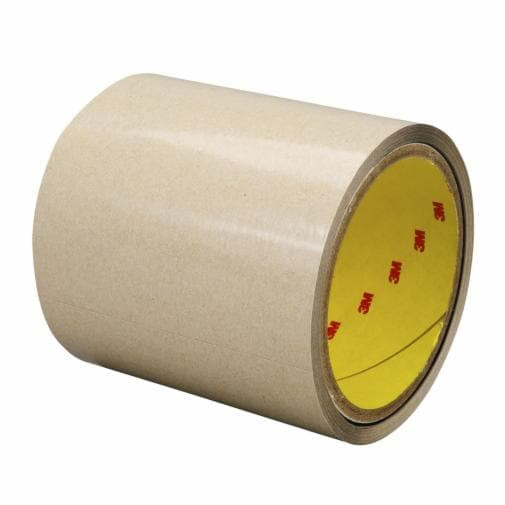

3M™ Double Coated Tape 9629PC is a premium industrial-grade adhesive tape designed for challenging bonding applications across multiple industries. This clear polyester (PET) carrier tape delivers exceptional adhesion to difficult-to-bond surfaces including polypropylene, HDPE, LDPE, and powder-coated paints. The tape features 3M™ Quick Bonding Adhesive 360, which provides very high initial bond strength and enables faster cycle times in manufacturing processes. The 4 mil total thickness without liner ensures optimal dimensional stability while the tan 58# polycoated kraft paper liner improves handling during converting and application. With a 0.5-inch width and 60-yard length per roll, this tape is ideal for general purpose joining, mounting, and splicing applications in electronics, automotive, and industrial assembly operations. The case contains 72 rolls, providing substantial inventory for high-volume production environments. This product is specifically formulated for industrial and occupational use, offering reliable performance across a wide temperature range from -40°C to 93°C. The razor-thin profile makes it an excellent alternative to traditional fastening methods like glues, screws, and rivets.
Key Features
- Excellent adhesion to difficult surfaces including HDPE, LDPE, and polypropylene
- 3M Quick Bonding Adhesive 360 delivers very high initial bond strength
- High bond strength to dissimilar materials such as metals and most plastics
- Clear polyester carrier provides dimensional stability and improved handling
- 58# PCK liner offers improved moisture stability and easier application
Technical Specifications
| Specification |
Value |
| Product Number | 9629PC |
| Width | 0.5 inches (12.7 mm) |
| Length | 60 yards (54.86 meters) |
| Total Thickness without Liner | 4 mil (0.1 mm) |
| Carrier Material | Polyester (PET) |
| Carrier Thickness | 0.5 mil (0.013 mm) |
| Adhesive Type | Quick Bond Acrylic Adhesive 360 |
| Face Side Adhesive Thickness | 1.75 mil (0.04 mm) |
| Back Side Adhesive Thickness | 1.75 mil (0.04 mm) |
| Liner Material | Tan 58# Polycoated Kraft Paper |
| Minimum Operating Temperature | -40°C (-40°F) |
| Maximum Operating Temperature | 93°C (199°F) |
| Units per Case | 72 rolls |
| Smallest Saleable Unit | Roll |
| UPC Code | 00051111919934 |
| 3M ID | 7010335510 |
| Industries | Electronics, General Industrial |
| Recommended Applications | Powder coated surfaces, Plastics, Electronics, Automotive |
Order 3M Double Coated Tape 9629PC Clear Half Inch at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
