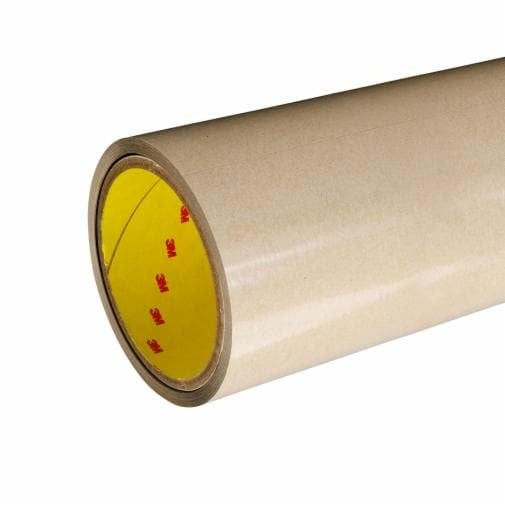

Premium industrial double-coated tape with 3M Adhesive 360 for high-strength bonding to difficult surfaces including plastics and powder-coated paints. Clear PET carrier, 54 in x 60 yd roll.
3M™ Double Coated Tape 9629PC is a premium industrial adhesive tape designed for high-performance bonding applications across multiple industries. This clear polyester (PET) carrier tape features 3M™ Quick Bonding Adhesive 360, which delivers very high initial bond strength to metals and most plastics. The tape is specifically engineered to provide excellent adhesion to difficult-to-bond surfaces including HDPE, LDPE, polypropylene, and powder-coated paints, making it ideal for challenging industrial applications.
The 9629PC tape comes in a generous 54-inch width by 60-yard length with a 4-mil total thickness, offering substantial coverage for large-scale manufacturing and assembly operations. The clear polyester carrier adds dimensional stability to substrates while improving handling during converting and application processes. The tan 58# polycoated kraft paper liner enhances moisture stability and provides superior protection during storage and handling. This professional-grade tape is suitable for general purpose joining, mounting, and splicing applications in electronics, automotive, and general industrial markets.
As a razor-thin alternative to traditional fastening methods like glue, screws, and rivets, the 3M™ Double Coated Tape 9629PC enables faster cycle times and more efficient manufacturing processes. The Quick Bonding Adhesive 360 technology builds bond strength extremely quickly, allowing for rapid production workflows. This tape is recommended for industrial and occupational use only and is not intended for consumer applications. With its proven performance across diverse substrates and materials, this tape represents a reliable solution for demanding industrial bonding requirements.
Key Features
- Excellent adhesion to difficult surfaces including HDPE, LDPE, and polypropylene
- 3M Adhesive 360 delivers very high initial bond strength to metals and plastics
- Clear polyester carrier provides dimensional stability and improved handling
- Quick bonding technology enables faster cycle times and production efficiency
- Suitable for powder-coated paints, electronics, and automotive applications
Technical Specifications
| Specification |
Value |
| Product Number | 3M 9629PC |
| Overall Width | 54 inches (1,371.6 mm) |
| Overall Length | 60 yards (54.864 meters) |
| Total Tape Thickness | 4 mil (0.1 mm) without liner |
| Backing Material | Clear Polyester (PET) |
| Backing Thickness | 0.5 mil (0.013 mm) |
| Adhesive Type | Quick Bond Acrylic Adhesive 360 |
| Face Side Adhesive Thickness | 1.75 mil (0.04 mm) |
| Back Side Adhesive Thickness | 1.75 mil (0.04 mm) |
| Liner Material | Tan 58# Polycoated Kraft Paper |
| UPC Code | 00068060001641 |
| 3M ID | 7100270008 |
| Industries | Electronics, General Industrial, Automotive |
| Packaging | 1 Roll per Case |
| Brand | 3M™ |
Order 3M Double Coated Tape 9629PC Clear 54 inch x 60 yard at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
