Industrial-grade double coated bonding tape with quick bonding adhesive, ideal for joining difficult surfaces including plastics and metals with superior hold strength.

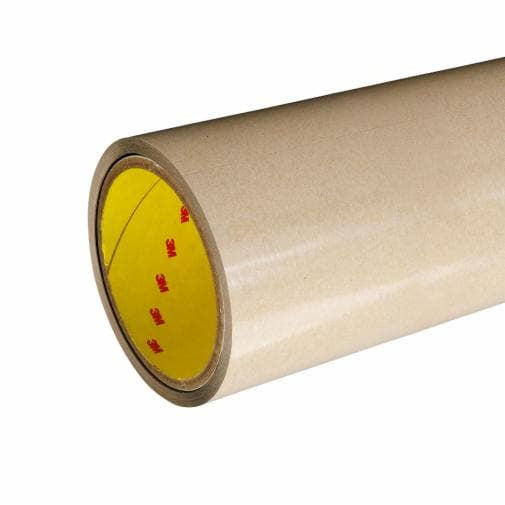

3M™ Double Coated Tape 9629PC is a premium industrial bonding solution designed for demanding applications requiring high bond strength to difficult surfaces. This clear polyester (PET) carrier tape features 3M™ Quick Bonding Adhesive 360, which delivers very high initial bond strength and enables faster cycle times in manufacturing processes. The tape measures 54 inches wide by 60 yards long with a 4 mil thickness, making it ideal for general purpose joining, mounting, and splicing applications across multiple industries.
The tape excels at bonding to low surface energy plastics such as polypropylene (PP), high-density polyethylene (HDPE), and low-density polyethylene (LDPE), as well as powder coated painted surfaces and metals. The clear polyester carrier provides dimensional stability to substrates while improving handling during converting and application. The tan 58# polycoated kraft paper liner offers improved moisture stability and protection during storage and handling. This double coated tape is commonly used in electronics assembly, automotive manufacturing, and consumable medical device production.
Designed as a razor-thin alternative to traditional fastening methods like glue, screws, and rivets, the 3M™ Double Coated Tape 9629PC combines ease of application with superior performance. The Quick Bonding Adhesive 360 is particularly effective for bonding dissimilar materials, such as steel to plastics, making it an essential component in modern manufacturing. With an operating temperature range from -40°C to 93°C, this industrial-grade tape maintains its performance across diverse environmental conditions.
Key Features
- Excellent adhesion to low surface energy plastics including polypropylene, HDPE, and LDPE
- 3M Quick Bonding Adhesive 360 provides very high initial bond strength for faster cycle times
- Clear polyester (PET) carrier offers dimensional stability and improved handling
- Bonds dissimilar materials including metals and plastics with superior strength
- Suitable for electronics, automotive, medical devices, and powder coated surfaces
Technical Specifications
| Specification |
Value |
| Part Number | 9629PC |
| Overall Width (Imperial) | 54 inches |
| Overall Width (Metric) | 1,371.6 mm |
| Overall Length (Imperial) | 60 yards |
| Overall Length (Metric) | 54.86 meters |
| Total Tape Thickness without Liner (Imperial) | 4 mil |
| Total Tape Thickness without Liner (Metric) | 0.1 mm |
| Backing Material | Clear Polyester (PET) |
| Backing Thickness (Imperial) | 0.5 mil |
| Backing Thickness (Metric) | 0.013 mm |
| Face Side Adhesive Thickness (Imperial) | 1.75 mil |
| Face Side Adhesive Thickness (Metric) | 0.04 mm |
| Back Side Adhesive Thickness (Imperial) | 1.75 mil |
| Back Side Adhesive Thickness (Metric) | 0.04 mm |
| Adhesive Type | Quick Bond Acrylic Adhesive 360 |
| Liner Material | Tan 58# Polycoated Kraft Paper |
| Minimum Operating Temperature | -40°C (-40°F) |
| Maximum Operating Temperature | 93°C (199°F) |
| Units per Case | 1 roll |
| Smallest Saleable Unit | Roll |
| UPC Code | 00051111918951 |
| 3M Product Number | 9629PC |
| 3M ID | 7000001480 |
| Industries | Electronics, General Industrial |
| Brand | 3M™ |
Order 3M Double Coated Tape 9629PC Clear 54 inch at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
