Premium industrial double-coated tape with 3M Adhesive 360 technology, 54 in x 180 yd, ideal for bonding difficult surfaces like polypropylene and powder-coated paints with exceptional adhesion and dimensional stability.

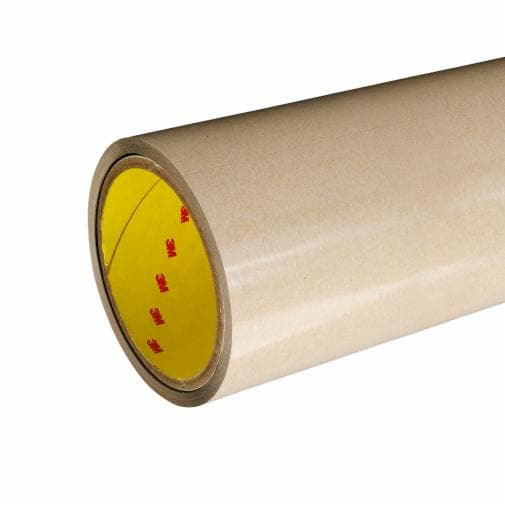

3M™ Double Coated Tape 9629PC is a premium industrial-grade bonding solution featuring clear polyester (PET) carrier with 3M™ Quick Bonding Adhesive 360. This high-performance tape delivers exceptional adhesion to difficult-to-bond surfaces including polypropylene, HDPE, LDPE, and powder-coated paints. The tape measures 54 inches wide by 180 yards long with a total thickness of 4 mil, making it ideal for applications requiring both strength and dimensional stability.
The clear polyester carrier provides excellent dimensional stability while maintaining transparency, making it suitable for applications where visibility is important. The 58# polycoated kraft paper liner ensures improved moisture stability and easier handling during converting and application processes. 3M™ Adhesive 360 technology delivers very high initial bond strength, enabling faster cycle times in manufacturing environments. This tape is commonly used in electronics, automotive, and consumable medical device assembly applications.
Considered a razor-thin alternative to glue, screws, and rivets, the 9629PC tape offers versatile bonding capabilities for general purpose joining, mounting, and splicing. With operating temperatures ranging from -40°C to 93°C, this industrial tape provides reliable performance across diverse environmental conditions. The product is specifically formulated for industrial and occupational use, meeting stringent manufacturing standards for professional applications.
Key Features
- Excellent adhesion to difficult surfaces including HDPE, LDPE, and polypropylene
- 3M Quick Bonding Adhesive 360 delivers very high initial bond strength for faster cycle times
- Clear polyester carrier provides dimensional stability and transparency
- 58# polycoated kraft paper liner offers improved moisture stability
- High bond strength to dissimilar materials such as metals and most plastics
- Operating temperature range from -40°C to 93°C for diverse applications
- Ideal for electronics, automotive, and medical device assembly applications
Technical Specifications
| Specification |
Value |
| Product Number | 9629PC |
| Overall Width (Imperial) | 54 inches |
| Overall Width (Metric) | 1,371.6 mm |
| Overall Length (Imperial) | 180 yards |
| Overall Length (Metric) | 164.59 meters |
| Total Tape Thickness without Liner (Imperial) | 4 mil |
| Total Tape Thickness without Liner (Metric) | 0.1 mm |
| Backing (Carrier) Material | Polyester (PET) |
| Backing (Carrier) Thickness (Imperial) | 0.5 mil |
| Backing (Carrier) Thickness (Metric) | 0.013 mm |
| Face Side Adhesive Thickness (Imperial) | 1.75 mil |
| Face Side Adhesive Thickness (Metric) | 0.04 mm |
| Back Side Adhesive Thickness (Imperial) | 1.75 mil |
| Back Side Adhesive Thickness (Metric) | 0.04 mm |
| Primary Liner Thickness (Imperial) | 4.2 mil |
| Liner Material | 58# Polycoated Kraft Paper |
| Adhesive Type | Quick Bond Acrylic Adhesive 360 |
| Minimum Operating Temperature (Celsius) | -40°C |
| Maximum Operating Temperature (Celsius) | 93°C |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Maximum Operating Temperature (Fahrenheit) | 199.4°F |
| Brand | 3M |
| Industries | Electronics, General Industrial |
| Smallest Saleable Unit | Roll |
| UPC | 00051115809330 |
| 3M ID | 7010375154 |
| Package Configuration | 1 Roll/Case |
| Intended Use | Industrial/Occupational Use Only |
