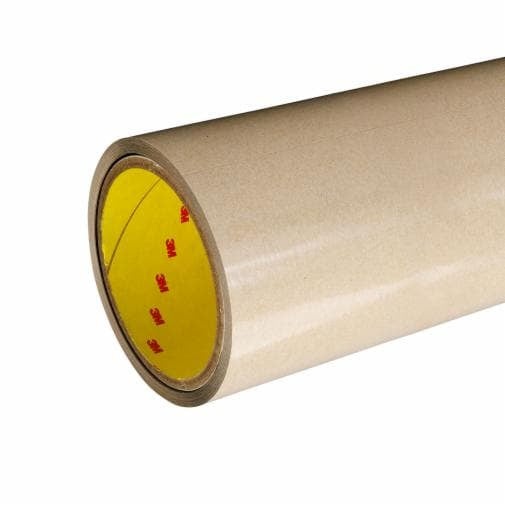

3M Double Coated Tape 9629PC offers high-performance bonding with 3M Adhesive 360 quick-bonding technology. Clear 54in x 180yd roll with excellent adhesion to plastics, metals, and difficult surfaces. Industrial-grade for electronics, automotive, and manufacturing applications.
3M™ Double Coated Tape 9629PC is a premium industrial-grade adhesive tape designed for high-performance bonding applications across diverse substrates. This clear double-coated tape features 3M™ Adhesive 360, a quick-bonding acrylic adhesive that delivers very high initial bond strength to metals, plastics, and difficult-to-bond surfaces including polypropylene, HDPE, and LDPE. The tape is composed of a clear polyester (PET) carrier with dimensions of 54 inches wide by 180 yards long, providing excellent dimensional stability and superior handling characteristics during converting and application processes.
The 9629PC tape is engineered with a 4 mil total thickness without liner, featuring 1.75 mil adhesive layers on both face and back sides, backed by a 0.5 mil PET carrier and protected by a 58# polycoated kraft paper liner. This construction makes it an ideal razor-thin alternative to traditional fastening methods such as glue, screws, and rivets. The tape excels at bonding to powder-coated painted surfaces, most plastics including polypropylene, electronics components, and automotive applications. With an operating temperature range of -40°C to 93°C (-40°F to 200°F), this tape maintains consistent performance across varied environmental conditions.
Manufactured by 3M with part number 9629PC and UPC 00051115809330, this industrial-use-only product is specifically formulated for professional applications in electronics, general industrial manufacturing, and automotive assembly. The quick-bonding adhesive 360 technology enables faster cycle times and is particularly effective for bonding dissimilar materials, making it an essential solution for modern manufacturing and assembly operations. Each roll comes in a single roll per case configuration, suitable for high-volume converting and application operations.
Key Features
- 3M Adhesive 360 delivers very high initial bond strength to metals and plastics
- Excellent adhesion to difficult surfaces including HDPE, LDPE, and polypropylene
- Clear polyester (PET) carrier provides dimensional stability and improved handling
- Provides high bond strength to dissimilar materials and powder-coated surfaces
- 4 mil total thickness with 58# PCK liner for improved moisture stability
- Operating temperature range from -40°C to 93°C for diverse applications
- Razor-thin alternative to glue, screws, and rivets for joining and mounting
- Quick-bonding technology enables faster cycle times in manufacturing
- Suitable for electronics, automotive, and general industrial applications
Technical Specifications
| Specification |
Value |
| Product Number | 9629PC |
| UPC Code | 00051115809330 |
| Overall Width (Imperial) | 54 inches |
| Overall Width (Metric) | 1,371.6 mm |
| Overall Length (Imperial) | 180 yards |
| Overall Length (Metric) | 164.59 meters |
| Total Tape Thickness without Liner (Imperial) | 4 mil |
| Total Tape Thickness without Liner (Metric) | 0.1 mm |
| Backing (Carrier) Material | PET (Polyester) |
| Backing (Carrier) Thickness (Imperial) | 0.5 mil |
| Backing (Carrier) Thickness (Metric) | 0.013 mm |
| Face Side Adhesive Thickness (Imperial) | 1.75 mil |
| Face Side Adhesive Thickness (Metric) | 0.04 mm |
| Back Side Adhesive Thickness (Imperial) | 1.75 mil |
| Back Side Adhesive Thickness (Metric) | 0.04 mm |
| Primary Liner Thickness (Imperial) | 4.2 mil |
| Adhesive Type | Quick Bond Acrylic Adhesive 360 |
| Liner Material | 58# Polycoated Kraft Paper |
| Minimum Operating Temperature (Celsius) | -40°C |
| Maximum Operating Temperature (Celsius) | 93°C |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Maximum Operating Temperature (Fahrenheit) | 200°F |
| Industries | Electronics, General Industrial, Automotive |
| Smallest Saleable Unit | Roll |
| Packaging | 1 Roll/Case |
| Brand | 3M |
| Product Type | Double Coated Tape |
| Recommended Applications | General purpose joining, mounting, splicing, powder coated painted surfaces, electronics, automotive |
Order 3M Double Coated Tape 9629PC Clear 54in x 180yd at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
