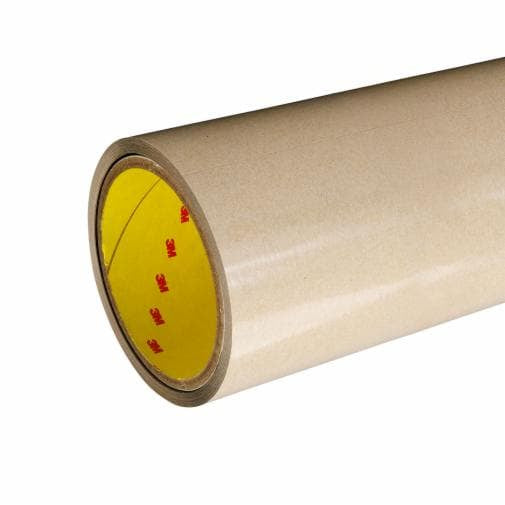

Premium double-coated industrial tape with 3M Adhesive 360 for high-performance bonding to difficult surfaces including plastics and powder-coated paints. Clear PET carrier, 4 mil thickness, 1 in x 60 yd per roll, 36 rolls per case.
3M™ Double Coated Tape 9629PC is a premium industrial-grade adhesive tape designed for high-performance bonding applications across diverse substrates. This clear polyester (PET) carrier tape features 3M™ Quick Bonding Adhesive 360, which delivers exceptional initial bond strength and rapid bonding capabilities. The tape is specifically engineered to provide excellent adhesion to difficult-to-bond surfaces including polypropylene, HDPE, LDPE, and powder-coated painted surfaces, making it ideal for applications requiring reliable performance on low surface energy plastics.
The 9629PC features a thin 4 mil total thickness with a clear PET carrier that adds dimensional stability to substrates while improving handling during converting and application processes. The tan 58# polycoated kraft paper liner provides enhanced moisture stability and protection during storage and handling. With 3M™ Adhesive 360 technology, this tape builds bond strength very quickly, enabling faster cycle times in manufacturing environments. The tape is commonly used in electronics assembly, automotive applications, medical device manufacturing, and general industrial joining operations.
Each case contains 36 rolls of 1 inch width by 60 yards length, providing substantial coverage for production environments. This product is specifically formulated for industrial and occupational use, offering reliable performance as a razor-thin alternative to traditional fastening methods such as glues, screws, and rivets. The double-coated design ensures adhesive contact on both surfaces, making it suitable for mounting, splicing, and general-purpose joining applications across multiple industries.
Key Features
- Excellent adhesion to difficult surfaces such as HDPE, LDPE, and polypropylene
- 3M Quick Bonding Adhesive 360 delivers very high initial bond strength and rapid bonding
- Provides high bond strength to dissimilar materials such as metals and most plastics
- Clear polyester (PET) carrier adds dimensional stability and improved handling
- Tan 58# polycoated kraft paper liner offers improved moisture stability
- Razor-thin alternative to glue, screws, and rivets for joining applications
- Suitable for powder coated painted surfaces and electronics applications
- Enables faster cycle times in manufacturing environments
Technical Specifications
| Specification |
Value |
| Product Number | 9629PC |
| UPC Code | 00051111919958 |
| 3M ID | 7000115780 |
| Adhesive Type | Quick Bond Acrylic Adhesive 360 |
| Carrier Material | Polyester (PET) |
| Carrier Thickness | 0.5 mil (0.013 mm) |
| Total Tape Thickness | 4 mil (0.1 mm) without liner |
| Face Side Adhesive Thickness | 1.75 mil (0.04 mm) |
| Back Side Adhesive Thickness | 1.75 mil (0.04 mm) |
| Liner Material | Tan 58# polycoated kraft paper |
| Primary Liner Thickness | 4.2 mil |
| Overall Width | 1 inch (25.4 mm) |
| Overall Length | 60 yards (55 meters) |
| Units per Case | 36 rolls |
| Smallest Saleable Unit | Roll |
| Minimum Operating Temperature | -40°C (-40°F) |
| Maximum Operating Temperature | 93°C (199°F) |
| Industries | Electronics, General Industrial, Automotive, Medical Devices |
| Brand | 3M™ |
| Recommended Applications | Mounting, splicing, joining, bonding to plastics and powder coated surfaces |
Order 3M Double Coated Tape 9629PC Clear 4 mil 1 in x 60 yd at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
