Premium double-coated industrial tape with 3M Adhesive 360 for superior bonding to difficult surfaces, plastics, and metals with 4 mil thickness and clear PET carrier.

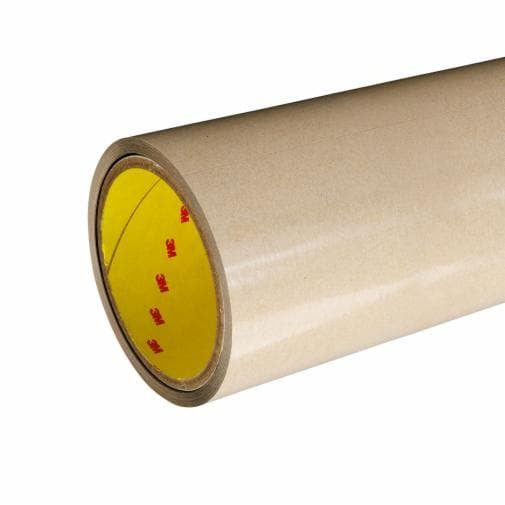

3M™ Double Coated Tape 9629PC is a premium industrial adhesive tape engineered for exceptional bonding performance on difficult-to-bond surfaces. This clear polyester (PET) carrier tape features 3M™ Quick Bonding Adhesive 360, which delivers very high initial bond strength to metals and most plastics. The tape is specifically designed to bond to challenging low surface energy materials including polypropylene (PP), high-density polyethylene (HDPE), and low-density polyethylene (LDPE), making it ideal for applications where traditional adhesives fail.
The 4 mil total thickness provides an optimal balance between strength and flexibility, while the clear PET carrier adds dimensional stability to substrates and improves handling during converting and application. The tan 58# polycoated kraft paper liner enhances moisture stability and protects the adhesive until application. This tape is considered a razor-thin alternative to glue, screws, and rivets, offering clean, professional bonding without fasteners or visible hardware.
With operating temperatures ranging from -40°C to 93°C, 3M Double Coated Tape 9629PC is suitable for a wide range of industrial applications including electronics assembly, automotive manufacturing, powder-coated paint bonding, and general industrial joining. The tape's excellent adhesion characteristics and rapid bond development make it an efficient solution for manufacturing environments requiring faster cycle times and reliable permanent bonding.
Key Features
- Excellent adhesion to difficult surfaces including HDPE, LDPE, and polypropylene
- 3M Quick Bonding Adhesive 360 delivers very high initial bond strength
- Provides superior bonding to dissimilar materials such as metals and most plastics
- Clear polyester (PET) carrier adds dimensional stability and improved handling
- 58# polycoated kraft paper liner offers enhanced moisture stability
- Temperature resistant from -40°C to 93°C for diverse applications
- Bonds effectively to powder-coated painted surfaces
- Razor-thin alternative to glue, screws, and rivets for cleaner assembly
Technical Specifications
| Specification |
Value |
| Product Number | 9629PC |
| 3M ID | 7100073092 |
| Adhesive Type | Quick Bond Acrylic Adhesive 360 |
| Backing Material | Clear Polyester (PET) |
| Backing Thickness (Imperial) | 0.5 mil |
| Backing Thickness (Metric) | 0.013 mm |
| Total Tape Thickness without Liner (Imperial) | 4 mil |
| Total Tape Thickness without Liner (Metric) | 0.1 mm |
| Face Side Adhesive Thickness (Imperial) | 1.75 mil |
| Face Side Adhesive Thickness (Metric) | 0.04 mm |
| Back Side Adhesive Thickness (Imperial) | 1.75 mil |
| Back Side Adhesive Thickness (Metric) | 0.04 mm |
| Liner Material | Tan 58# Polycoated Kraft Paper |
| Maximum Operating Temperature | 93°C (200°F) |
| Minimum Operating Temperature | -40°C (-40°F) |
| Brand | 3M™ |
| Industries | Electronics, General Industrial, Automotive, Medical Devices |
| Recommended Applications | Bonding, Mounting, Splicing, Joining |
| Smallest Saleable Unit | Roll |
| Color | Clear |
