Premium double-coated industrial adhesive tape with 3M Adhesive 360 technology, ideal for bonding difficult plastics and metals with superior initial bond strength and dimensional stability.

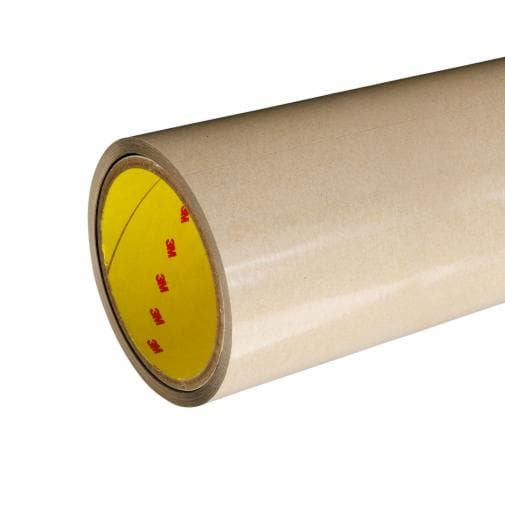

3M™ Double Coated Tape 9629PC is a premium industrial adhesive tape engineered for exceptional bonding performance on difficult-to-bond surfaces. This clear polyester (PET) carrier tape features 3M™ Quick Bonding Adhesive 360, which delivers very high initial bond strength to metals and most plastics, enabling faster cycle times in manufacturing environments. The tape measures 48 inches in width and 180 yards in length with a total thickness of 4 mil, making it ideal for high-volume industrial applications.
The tape excels at bonding to low surface energy plastics such as polypropylene (PP), high-density polyethylene (HDPE), and low-density polyethylene (LDPE), as well as powder-coated painted surfaces. The clear PET carrier provides excellent dimensional stability and improved handling during converting and application processes. The 58# polycoated kraft paper liner on the back ensures moisture stability and ease of use. This product is specifically designed as a razor-thin alternative to traditional fastening methods like glue, screws, and rivets.
3M™ Double Coated Tape 9629PC is widely used in electronics, automotive, and general industrial applications including mounting, splicing, and general-purpose joining. The tape operates effectively within a temperature range of -40°C to 93°C, making it suitable for diverse manufacturing environments. With its superior adhesive technology and quality construction, this tape delivers reliable performance for demanding industrial bonding applications.
Key Features
- Excellent adhesion to difficult low surface energy plastics including polypropylene, HDPE, and LDPE
- 3M Adhesive 360 provides very high initial bond strength for faster cycle times
- Clear polyester (PET) carrier adds dimensional stability and improved handling
- Bonds to dissimilar materials such as metals and powder-coated painted surfaces
- 58# polycoated kraft paper liner ensures moisture stability and easy application
- Operating temperature range from -40°C to 93°C for diverse applications
- Razor-thin alternative to glue, screws, and rivets for industrial joining
- Suitable for electronics, automotive, and general industrial applications
Technical Specifications
| Specification |
Value |
| Product Number | 9629PC |
| UPC Code | 00051111919002 |
| Overall Width | 48 inches (1,219.2 mm) |
| Overall Length | 180 yards (164.59 meters) |
| Total Tape Thickness without Liner | 4 mil (0.1 mm) |
| Backing Material | Clear Polyester (PET) |
| Backing Thickness | 0.5 mil (0.013 mm) |
| Face Side Adhesive Thickness | 1.75 mil (0.04 mm) |
| Back Side Adhesive Thickness | 1.75 mil (0.04 mm) |
| Adhesive Type | Quick Bond Acrylic Adhesive 360 |
| Liner Material | 58# Polycoated Kraft Paper |
| Minimum Operating Temperature | -40°C (-40°F) |
| Maximum Operating Temperature | 93°C (199°F) |
| Units per Case | 1 Roll |
| Smallest Saleable Unit | Roll |
| Industries | Electronics, General Industrial, Automotive |
| Brand | 3M™ |
| Application Type | Bonding, Mounting, Splicing, Joining |
| Recommended Surfaces | Polypropylene, HDPE, LDPE, Powder Coated Paint, Most Plastics, Metals |
| Use Classification | Industrial/Occupational Use Only |
