Industrial-grade double-coated clear tape with 3M Quick Bonding Adhesive 360 for superior bonding to difficult surfaces, plastics, and dissimilar materials with fast initial strength.

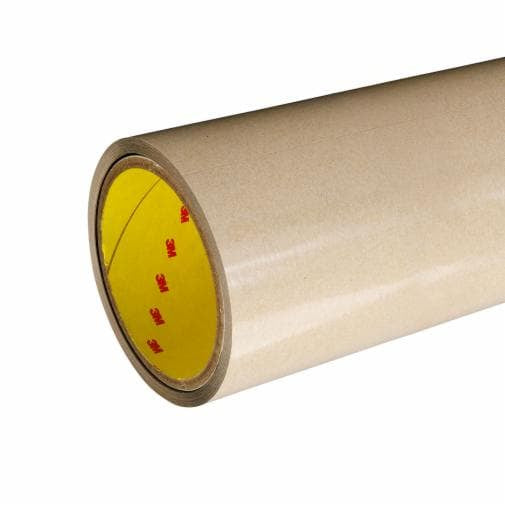

3M™ Double Coated Tape 9629PC is a high-performance adhesive tape engineered for industrial applications requiring superior bonding to difficult-to-bond surfaces. This clear polyester (PET) carrier tape features 3M™ Quick Bonding Adhesive 360, which delivers very high initial bond strength and rapid cycle times. The tape excels at bonding to low surface energy plastics including polypropylene (PP), high-density polyethylene (HDPE), and low-density polyethylene (LDPE), as well as powder-coated painted surfaces and dissimilar materials such as metals and most plastics.
The 9629PC variant combines a 0.5 mil thick clear PET carrier with dual-sided quick-bond acrylic adhesive coating (1.75 mil on each side) for a total thickness of 4 mil without liner. The tape is backed with a tan 58# polycoated kraft paper liner that offers improved moisture stability and easier handling during converting and application. This construction makes it an excellent razor-thin alternative to glue, screws, and rivets for general-purpose joining, mounting, and splicing applications.
With an operating temperature range from -40°C to 93°C, this industrial-grade tape is suitable for electronics, automotive, and general industrial applications. The 180-yard roll on a 48-inch width provides substantial coverage for high-volume production environments. 3M's Adhesive 360 technology ensures fast bond building, enabling faster cycle times and improved manufacturing efficiency across diverse substrates and industries.
Key Features
- Excellent adhesion to low surface energy plastics including polypropylene, HDPE, and LDPE
- 3M Quick Bonding Adhesive 360 delivers very high initial bond strength and fast cycle times
- Clear polyester (PET) carrier provides dimensional stability and improved handling during application
- Bonds to dissimilar materials such as metals, powder-coated surfaces, and most plastics
- 58# polycoated kraft paper liner offers improved moisture stability and easier converting
Technical Specifications
| Specification |
Value |
| Product Number | 9629PC |
| Width | 48 inches (1,219.2 mm) |
| Length | 180 yards (164.59 meters) |
| Total Thickness without Liner | 4 mil (0.1 mm) |
| Carrier Material | Polyester (PET), 0.5 mil thick |
| Adhesive Type | Quick Bond Acrylic Adhesive 360 |
| Face Side Adhesive Thickness | 1.75 mil (0.04 mm) |
| Back Side Adhesive Thickness | 1.75 mil (0.04 mm) |
| Liner Material | Tan polycoated kraft paper, 58# weight |
| Minimum Operating Temperature | -40°C (-40°F) |
| Maximum Operating Temperature | 93°C (199°F) |
| Industries | Electronics, General Industrial, Automotive, Medical Devices |
| Packaging | 1 Roll per Case |
| UPC Code | 00051111919002 |
| 3M ID | 7100173942 |
Order 3M Double Coated Tape 9629PC Clear 48in x 180yd at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
