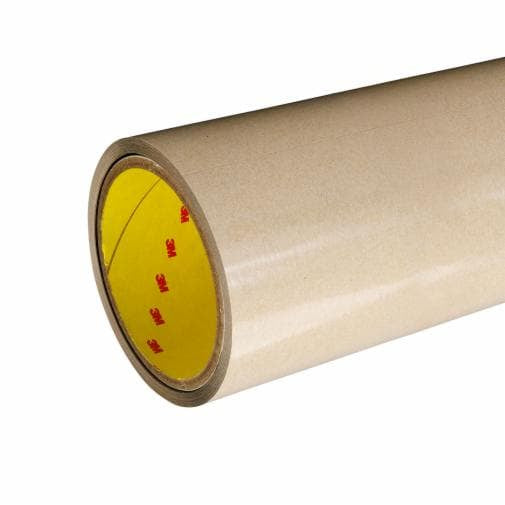

Premium industrial double-coated tape with 3M Adhesive 360 for high-strength bonding to difficult surfaces including plastics and powder-coated paints. Clear PET carrier, 54 in x 60 yd, 4 mil thickness.
3M™ Double Coated Tape 9629PC is a premium industrial adhesive tape engineered for high-performance bonding applications across diverse industries. This clear, double-sided tape features a polyester (PET) carrier with exceptional dimensional stability and improved handling characteristics. The tape is coated with 3M™ Quick Bonding Adhesive 360, which delivers very high initial bond strength to both similar and dissimilar materials, enabling faster cycle times in manufacturing and assembly processes.
The 9629PC model excels at bonding to difficult-to-adhere surfaces including low surface energy plastics such as polypropylene (PP), high-density polyethylene (HDPE), low-density polyethylene (LDPE), and powder-coated painted surfaces. The 58# polycoated kraft paper liner provides enhanced moisture stability during storage and application, while the clear PET carrier ensures minimal visibility on finished products. With dimensions of 54 inches wide by 60 yards long and a total thickness of 4 mil, this industrial-grade tape offers versatility for various joining, mounting, and splicing applications.
Designed exclusively for industrial and occupational use, 3M™ Double Coated Tape 9629PC is a razor-thin alternative to traditional fastening methods like glue, screws, and rivets. It finds widespread application in electronics assembly, automotive manufacturing, construction, and general industrial bonding. The tape's superior performance on challenging substrates, combined with its quick-setting adhesive technology, makes it an ideal choice for manufacturers seeking to improve efficiency and product quality while reducing assembly time and costs.
Key Features
- Excellent adhesion to low surface energy plastics including polypropylene, HDPE, and LDPE
- 3M Quick Bonding Adhesive 360 delivers very high initial bond strength for faster cycle times
- Clear polyester (PET) carrier provides dimensional stability and improved handling
- Bonds effectively to dissimilar materials such as metals and most plastics
- 58# polycoated kraft paper liner offers enhanced moisture stability during storage and application
Technical Specifications
| Specification |
Value |
| Product Number | 9629PC |
| Adhesive Type | Quick Bond Acrylic Adhesive 360 |
| Carrier Material | Polyester (PET) |
| Carrier Thickness | 0.5 mil (0.013 mm) |
| Overall Width | 54 inches (1,371.6 mm) |
| Overall Length | 60 yards (54.864 m) |
| Total Tape Thickness without Liner | 4 mil (0.1 mm) |
| Face Side Adhesive Thickness | 1.75 mil (0.04 mm) |
| Back Side Adhesive Thickness | 1.75 mil (0.04 mm) |
| Liner Material | 58# Polycoated Kraft Paper |
| Color | Clear |
| Industries | Electronics, General Industrial, Automotive, Construction |
| UPC Code | 00068060001641 |
| 3M ID | 7100270008 |
| Quantity per Case | 1 Roll |
Order 3M Double Coated Tape 9629PC Clear 54 inch at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
