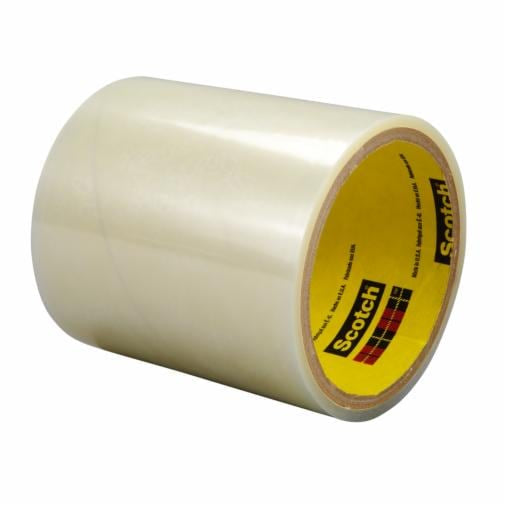

Premium industrial double coated adhesive tape with quick bonding acrylic adhesive 360, exceptional adhesion to high and low surface energy plastics, 54 in x 60 yd, 2 mil thickness, ideal for plastic assembly and component bonding applications.
3M™ Double Coated Tape 9628FL is a premium industrial adhesive tape engineered for immediate bonding and exceptional adhesion to both high and low surface energy materials. This clear, 2.0 mil double coated tape features a PET polyester carrier with PET polyester film liner, providing dimensional stability and improved handling for die-cutting and laminating applications. The tape is constructed with 3M™ Quick Bonding Adhesive 360, delivering high bond strength with minimal adhesive, resulting in thin bond lines and smooth application without oozing or odor.
The 9628FL tape excels in bonding to challenging substrates including hard-to-stick-to polypropylene and powder-coated paints. Its exceptional strength from thin bond lines makes it ideal for precision bonding applications where minimal material thickness is critical. The tape offers excellent resistance to humidity, UV exposure, water, and chemicals including oil, mild acids, and alkalis, with short-term temperature resistance up to 250°F (121°C). This industrial-grade adhesive transfer tape is specifically designed for plastic housing and component assembly, bezel bonding, interior decorative trim, badge and logo attachment applications.
Each roll measures 54 inches in width by 60 yards in length, providing substantial coverage for industrial production environments. The double coated format provides ease of die-cutting and laminating, making it ideal for converter solutions and manufacturing applications. With units per case of 1.0 roll, this product is suitable for high-volume industrial and occupational use only, not for consumer applications.
Key Features
- Quick stick adhesion with immediate bond strength on high and low surface energy materials
- Double coated format with 3M Quick Bonding Adhesive 360 on both sides for enhanced bonding capability
- PET polyester carrier and film liner providing dimensional stability and improved handling for die-cutting and laminating
- Exceptional resistance to humidity, UV, water, chemicals including oil, mild acids and alkalis with temperature resistance up to 250°F (121°C)
- Thin 2.0 mil profile delivers high bond strength with minimal adhesive, reducing oozing and providing smooth application
Technical Specifications
| Specification |
Value |
| Product Number | 9628FL |
| Adhesive Type | Quick Bond Acrylic Adhesive 360 (both sides) |
| Carrier Material | Polyester (PET) |
| Carrier Thickness | 0.5 mil (0.013 mm) |
| Adhesive Thickness per Side | 0.75 mil (0.019 mm) |
| Total Tape Thickness without Liner | 2.0 mil (0.05 mm) |
| Liner Material | PET Polyester Film |
| Liner Thickness | 2.0 mil (0.05 mm) |
| Product Color | Transparent/Clear |
| Width | 54 inches (1371.6 mm) |
| Length | 60 yards (54.86 meters) |
| Units per Case | 1 Roll |
| Minimum Operating Temperature | -40°C (-40°F) |
| Maximum Operating Temperature | 177°C (350°F) |
| Short-term Temperature Resistance | Up to 250°F (121°C) |
| Chemical Resistance | Oil, mild acids, alkalis resistant |
| Environmental Resistance | Humidity, UV, and water resistant |
| UPC Code | 00051111922590 |
| 3M ID | 7000001485 |
| Application Format | Double Coated Pressure Sensitive Adhesive Transfer Tape |
Order 3M Double Coated Tape 9628FL Clear 54 inch x 60 yard at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
