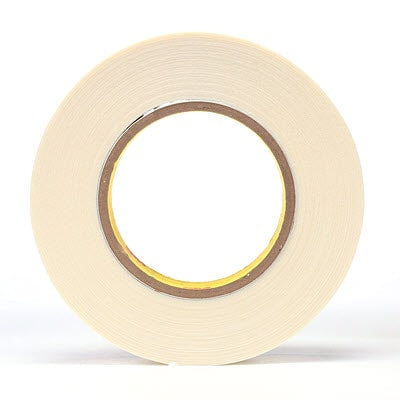

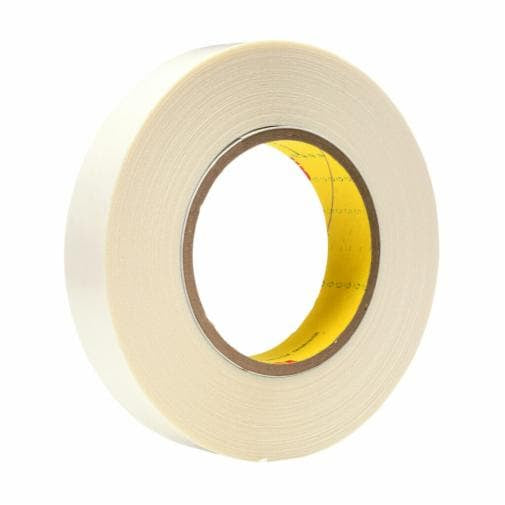

| Product Number | 3M™ Double Coated Tape 9579 |
| Part Number | 9579 |
| 3M ID | 7100000183 |
| Product Color | White |
| Overall Width (Imperial) | 27 inches |
| Overall Width (Metric) | 685.8 mm |
| Total Tape Thickness without Liner (Imperial) | 9 mil |
| Total Tape Thickness without Liner (Metric) | 0.23 mm |
| Backing (Carrier) Material | High Density Polyethylene (HDPE) |
| Carrier Thickness (Imperial) | 3 mil |
| Carrier Thickness (Metric) | 0.076 mm |
| Face Side Adhesive Type | Synthetic Rubber Adhesive 760 |
| Back Side Adhesive Type | Synthetic Rubber Adhesive 760 |
| Face Side Adhesive Thickness (Imperial) | 3 mil |
| Face Side Adhesive Thickness (Metric) | 0.076 mm |
| Back Side Adhesive Thickness (Imperial) | 3 mil |
| Back Side Adhesive Thickness (Metric) | 0.07 mm |
| Number of Adhesive Sides | Double-sided |
| Application Method | Pressure-sensitive Adhesive |
| Primary Liner Material | 62# Densified Kraft Paper (DK) |
| Primary Liner Color | White |
| Primary Liner Thickness (Imperial) | 4 mil |
| Primary Liner Thickness (Metric) | 0.1 mm |
| Core Size (Imperial) | 3 inches |
| Core Size (Metric) | 76.2 mm |
| Master Size Length (Imperial) | 144 Linear Yards |
| Master Size Length (Metric) | 131.7 meters |
| Master Size Width (Imperial) | 27 inches |
| Master Size Width (Metric) | 69 cm |
| Product Form | Roll |
| Smallest Saleable Unit | Roll |
| Maximum Operating Temperature (Fahrenheit) | 120°F |
| Maximum Operating Temperature (Celsius) | 49°C |
| Short-term Temperature Limit (Fahrenheit) | 150°F |
| Short-term Temperature Limit (Celsius) | 66°C |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Minimum Operating Temperature (Celsius) | -40°C |
| Shelf Life | 18 Months |
| Indoor/Outdoor Use | Both |
| Specifications Met | FDA 21 CFR |
| Brand | 3M™ |
| Applications | Bonding, Core Start, Flying Splice, Gasket Assembly, Large Surface Lamination Assembly, Mounting & Trim Attachment, Overlap Splice, Splicing, Zero-Speed and General Splicing |
| Industries | Construction, Consumer Goods, Converter Solutions, Craft, Film, Food and Beverage, General Industrial, MRO, Packaging, Paper, Point of Purchase, Print, Signage, Woodworking |
