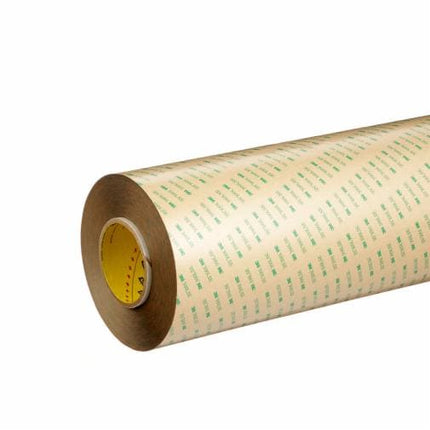

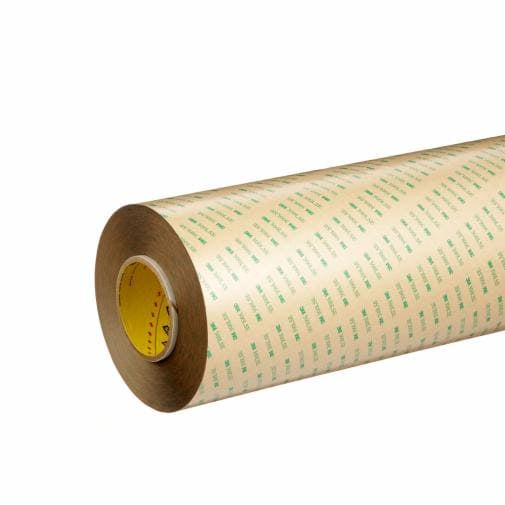

Shop 3M Double Coated Tape 93020LE Clear 54 inch x 60 yard Roll In Iraq Best Prices
High-performance double coated bonding tape with polyester film carrier, 54 inch x 60 yard roll, excellent adhesion to metals and plastics, temperature range -40°F to 300°F, solventless manufacturing process.
3M™ Double Coated Tape 93020LE is a market-proven, high-performance bonding solution featuring a polyester film carrier with adhesive coated on both sides. This versatile tape delivers excellent adhesion to a wide variety of surfaces including metals, plastics, glass, papers, and painted surfaces. The tape is engineered with 3M's High Strength Acrylic Adhesive 300LSE family, manufactured using a solventless process, making it an environmentally responsible choice for industrial applications.
This double coated tape measures 54 inches in width and 60 yards in length with a total thickness of 7.9 mil. It features a tan 58 lb. polycoated kraft paper liner ideal for die-cutting and converting applications. The polyester carrier provides dimensional stability to foams and other substrates, making it significantly easier to handle during slitting and die-cutting operations. The tape demonstrates excellent bond strength to low surface energy substrates including powder coatings and plastics such as polypropylene (PP), while also providing high adhesion to metals and high surface energy materials.
The tape performs reliably across a wide temperature range from -40°F/-40°C to 300°F/148°C, with bond strength increasing as a function of time and temperature. It offers very high initial adhesion and excellent resistance to industrial chemicals, consumer chemicals, moisture, and humidity. Ideal for consumer electronics, industrial assemblies, plastic bonding, automotive applications, appliance components, medical equipment fabrication, and general industrial applications. This product meets UL746C specifications and is intended for industrial and occupational use only.
Key Features
- Polyester film carrier provides dimensional stability for easier handling during slitting and die-cutting
- Excellent bond to low surface energy substrates including powder coatings and polypropylene plastics
- High adhesion to metals and high surface energy materials for bonding dissimilar substrates
- Superior holding power and anti-lifting properties for secure, long-lasting bonds
- Wide operating temperature range from -40°F to 300°F with increasing bond strength over time
- Excellent resistance to industrial chemicals, consumer chemicals, moisture, and humidity
- Solventless manufacturing process reducing harmful environmental emissions
- Meets UL746C specifications and automotive OEM requirements
- Tan 58 lb. polycoated kraft paper liner ideal for die-cutting and converting applications
- Very high initial adhesion with market-proven performance across multiple industries
Technical Specifications
| Specification |
Value |
| Product Name | 3M Double Coated Tape 93020LE |
| Part Number | 93020LE |
| 3M Product ID | 7010535966 |
| Overall Width (Imperial) | 54 inches |
| Overall Width (Metric) | 137 centimeters |
| Overall Length (Imperial) | 60 yards |
| Overall Length (Metric) | 54.86 meters |
| Total Tape Thickness without Liner (Imperial) | 7.9 mil |
| Total Tape Thickness without Liner (Metric) | 0.2 millimeters |
| Backing (Carrier) Thickness (Imperial) | 0.5 mil |
| Backing (Carrier) Thickness (Metric) | 0.012 millimeters |
| Backing Material | Polyester film |
| Face Side Adhesive Thickness (Imperial) | 3.7 mil |
| Face Side Adhesive Thickness (Metric) | 0.095 millimeters |
| Back Side Adhesive Thickness (Imperial) | 3.7 mil |
| Back Side Adhesive Thickness (Metric) | 0.095 millimeters |
| Adhesive Type | High Strength Acrylic 300LSE |
| Adhesive System | Pressure Sensitive |
| Liner Material | Tan 58 lb. polycoated kraft paper |
| Liner Type | Peel-away |
| Product Color | Transparent/Clear |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Minimum Operating Temperature (Celsius) | -40°C |
| Maximum Operating Temperature (Fahrenheit) | 300°F |
| Maximum Operating Temperature (Celsius) | 149°C |
| Indoor/Outdoor | Indoor/Outdoor |
| Features | Splice Free |
| Manufacturing Process | Solventless |
| Compliance Standards | UL746C (Reference file QOQW2.MH17478) |
| Smallest Saleable Unit | Roll |
| Brand | 3M |
| Use Classification | Industrial/Occupational Use Only |
| Recommended Applications | Consumer electronics, industrial electronics, plastic assembly, automotive, appliances, medical equipment, general industrial |
