Premium double-coated polyester tape with 3M High Strength Acrylic Adhesive 300LSE, offering excellent bond strength to metals, plastics, and painted surfaces across wide temperature range. Solventless manufacturing, UL746C certified, ideal for electronics, automotive, and industrial applications.

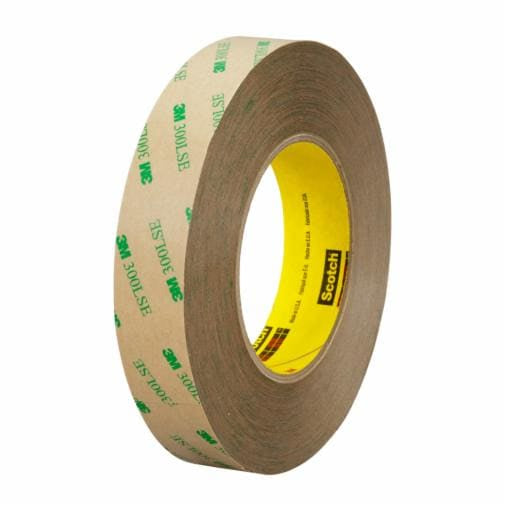

3M™ Double Coated Tape 93010LE is a market-proven, high-performance double coated transfer tape featuring a polyester film backing with adhesive applied to both sides. This versatile bonding solution is specifically engineered for applications requiring premium performance with a thin profile. The tape delivers excellent bond strength to similar and dissimilar materials including metals, most plastics, glass, papers, and painted surfaces, making it ideal for diverse industrial applications.
The 93010LE features 3M's High Strength Acrylic Adhesive 300LSE technology, manufactured through a solventless process that reduces harmful emissions. With exceptional adhesion properties and very high initial tack, this tape provides reliable performance across a wide temperature range from -40°F to 300°F (-40°C to 148°C). The polyester carrier provides dimensional stability to foams and other substrates, making it significantly easier to handle during slitting and die-cutting operations. The tape is supplied on a tan 58 lb. polycoated kraft paper liner, ideal for die-cutting and converting applications.
Perfect for consumer electronics, industrial electronics, automotive assembly, appliance components, and medical device fabrication, this tape offers excellent chemical, humidity, and moisture resistance. With dimensions of 54 inches (137 cm) width and 180 linear yards (164.6 m) length per roll, the 3M™ Double Coated Tape 93010LE meets UL746C standards and is suitable for both indoor and outdoor applications. The bond strength increases as a function of time and temperature, providing long-lasting adhesion for critical bonding tasks.
Key Features
- Polyester film carrier provides dimensional stability for easier handling during slitting and die-cutting operations
- Excellent bond to low surface energy substrates including powder coatings and polypropylene plastics
- High adhesion to metals and high surface energy materials for bonding dissimilar substrates
- Solventless manufacturing process reduces harmful greenhouse gas emissions and environmental impact
- Wide operating temperature range from -40°F to 300°F (-40°C to 148°C) with increasing bond strength over time
- Supplied on tan 58 lb. polycoated kraft paper liner ideal for die-cutting and converting
- Very high initial adhesion with excellent holding power and anti-lifting properties
- Good chemical, humidity, and moisture resistance for reliable long-term performance
- Market-proven 3M High Strength Acrylic Adhesive 300LSE technology
- UL746C certified for safety and compliance standards
Technical Specifications
| Specification |
Value |
| Product Number | 93010LE |
| 3M ID | 7100073052 |
| Backing Material | Polyester Film |
| Adhesive Type | Low Surface Energy Acrylic Adhesive 300LSE (Both Sides) |
| Product Color | Transparent/Clear |
| Overall Width (Imperial) | 54 inches |
| Overall Width (Metric) | 137 centimeters |
| Total Tape Thickness without Liner (Imperial) | 3.9 mil |
| Total Tape Thickness without Liner (Metric) | 0.099 millimeters |
| Carrier Thickness (Imperial) | 0.5 mil |
| Carrier Thickness (Metric) | 0.012 millimeters |
| Face Side Adhesive Thickness (Imperial) | 1.7 mil |
| Back Side Adhesive Thickness (Imperial) | 1.7 mil |
| Master Size Length (Imperial) | 180 Linear Yards |
| Master Size Length (Metric) | 164.6 meters |
| Core Size (Imperial) | 3 inches |
| Core Size (Metric) | 76.2 millimeters |
| Primary Liner | 58# Polycoated Kraft Paper (PCK) |
| Primary Liner Color | Tan |
| Primary Liner Thickness (Imperial) | 4.2 mil |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Minimum Operating Temperature (Celsius) | -40°C |
| Maximum Operating Temperature (Fahrenheit) | 300°F |
| Maximum Operating Temperature (Celsius) | 149°C |
| Product Form | Roll |
| Smallest Saleable Unit | Roll |
| Indoor/Outdoor | Both |
| Brand | 3M™ |
| Certification | UL746C (Reference File QOQW2.MH17478) |
| Manufacturing Process | Solventless |
| Industries | Appliance, Automotive, Converter Solutions, Electronics, General Industrial, MRO, Medical, Metalworking, Military & Government, Oil & Gas, Signage, Specialty Vehicles, Transportation, Woodworking |
