High-performance double coated polyester film tape with Low Surface Energy Acrylic Adhesive 300LSE for industrial bonding applications. Offers excellent adhesion to metals, plastics, and painted surfaces with superior temperature resistance and anti-lifting properties.

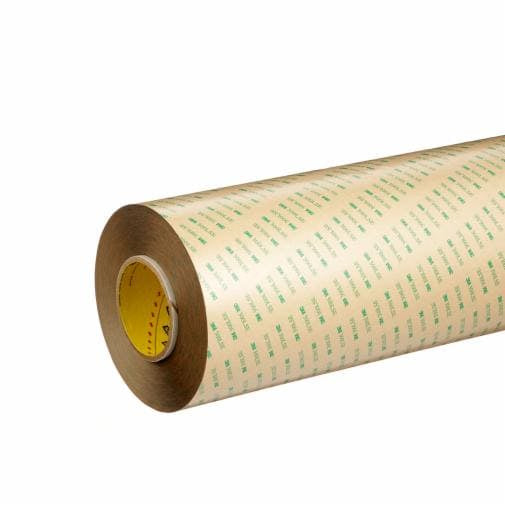

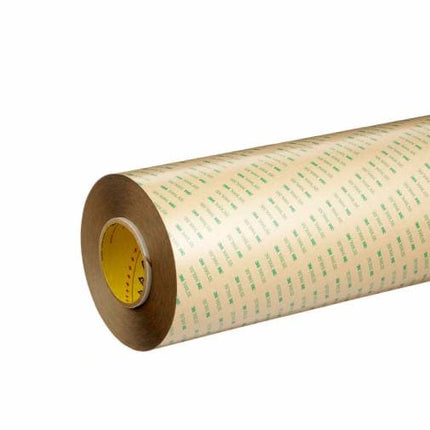

3M™ Double Coated Tape 93010LE is a market-proven, high-performance double coated transfer tape designed for industrial and occupational applications. Comprised of a polyester film backing with layers of Low Surface Energy Acrylic Adhesive 300LSE on each side, this tape delivers excellent bonding to both similar and dissimilar materials including metals, most plastics, glass, papers, and painted surfaces. The tape features dimensional stability through its polyester film carrier, making it ideal for slitting and die-cutting operations.
This versatile tape offers superior performance across a wide temperature range from -40°F/-40°C to 300°F/148°C, with bond strength that increases as a function of time and temperature. It provides very high initial adhesion and excellent holding power with anti-lifting properties. The tape is manufactured using a solventless manufacturing process, making it an environmentally responsible choice that can contribute to GHG emissions reductions. It meets UL746C standards and is supplied on a tan 58 lb. polycoated kraft paper liner ideal for die-cutting and converting applications.
The 93010LE is particularly suited for consumer electronics assemblies including phones, tablets, and wearable devices, as well as industrial electronics, automotive applications, appliance component assembly, and medical equipment fabrication. With good chemical, humidity, and moisture resistance, this tape is a market-leading solution for bonding plastics across a broad spectrum of industries, offering premium performance in a thin profile format.
Key Features
- Polyester film carrier provides dimensional stability for easier handling during slitting and die-cutting operations
- Excellent bond to low surface energy substrates including powder coatings and polypropylene plastics
- High adhesion to metals and high surface energy materials, suitable for bonding dissimilar substrates
- Wide temperature performance range from -40°F to 300°F with increasing bond strength over time
- Manufactured using solventless process reducing harmful emissions and supporting environmental sustainability
- Very high initial adhesion with excellent holding power and anti-lifting properties
- Good chemical, humidity, and moisture resistance for long-term performance
- Meets UL746C standards for industrial and occupational applications
- Supplied on tan 58 lb polycoated kraft paper liner ideal for converting applications
- Part of 3M High Strength Acrylic Adhesive 300LSE family for premium performance
Technical Specifications
| Specification |
Value |
| Product Number | 93010LE |
| UPC | 00051125751971 |
| Overall Width (Imperial) | 54 inches |
| Overall Width (Metric) | 137 centimeters |
| Overall Length (Imperial) | 180 yards |
| Overall Length (Metric) | 164.59 meters |
| Total Tape Thickness without Liner (Imperial) | 3.9 mils |
| Total Tape Thickness without Liner (Metric) | 0.099 millimeters |
| Backing/Carrier Material | Polyester Film |
| Carrier Thickness (Imperial) | 0.5 mils |
| Carrier Thickness (Metric) | 0.012 millimeters |
| Face Side Adhesive Thickness (Imperial) | 1.7 mils |
| Face Side Adhesive Thickness (Metric) | 0.044 millimeters |
| Back Side Adhesive Thickness (Imperial) | 1.7 mils |
| Back Side Adhesive Thickness (Metric) | 0.044 millimeters |
| Adhesive Type | Low Surface Energy Acrylic Adhesive 300LSE |
| Face Side Adhesive | Low Surface Energy Acrylic Adhesive 300LSE |
| Back Side Adhesive | Low Surface Energy Acrylic Adhesive 300LSE |
| Product Color | Transparent/Clear |
| Primary Liner | 58# Polycoated Kraft Paper (PCK) |
| Primary Liner Color | Tan |
| Primary Liner Thickness (Imperial) | 4.2 mils |
| Primary Liner Thickness (Metric) | 0.11 millimeters |
| Core Size (Imperial) | 3 inches |
| Core Size (Metric) | 76.2 millimeters |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Minimum Operating Temperature (Celsius) | -40°C |
| Maximum Operating Temperature (Fahrenheit) | 300°F |
| Maximum Operating Temperature (Celsius) | 149°C |
| Product Form | Roll |
| Units per Case | 1 Roll |
| Smallest Saleable Unit | Roll |
| Indoor/Outdoor Use | Both |
| Manufacturing Process | Solventless |
| Regulatory Compliance | UL746C (Reference file QOQW2.MH17478) |
| Brand | 3M |
| Intended Use | Industrial/Occupational Use Only |
Order 3M Double Coated Tape 93010LE Clear 54 in x 180 yd at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
