Ultra-thin 2.1 mil double-coated industrial tape with high-strength acrylic adhesive, 54 inches wide by 60 yards long, ideal for electronics, foam attachment, and precision bonding applications requiring minimal thickness.

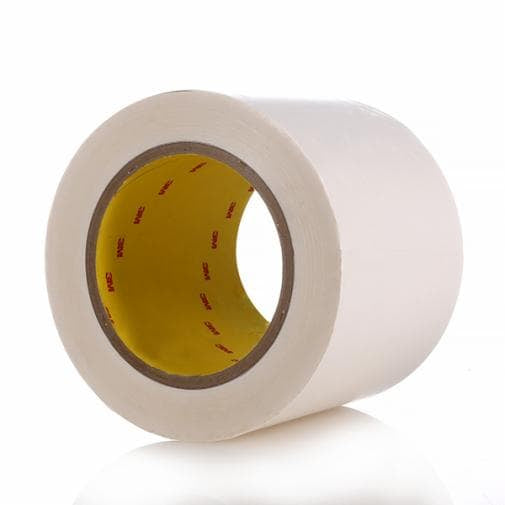

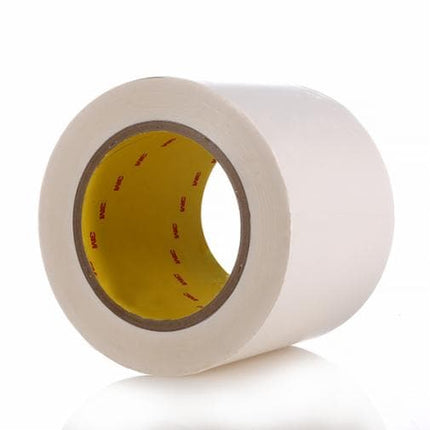

The 3M™ Double Coated Tape 9009 is a premium industrial-grade adhesive tape designed for demanding bonding and joining applications. This thin double-coated tape features 0.8 mils of high-strength acrylic adhesive on both sides with a 0.5 mil polyester carrier, all mounted on a 3.2 mil 55 lb densified kraft paper liner. With an overall thickness of just 2.1 mils, this tape is ideal for applications where minimal thickness is critical, such as electronics assembly, foam and gasket attachment, and general industrial bonding.
This versatile tape delivers exceptional performance across a wide variety of materials including high surface energy (HSE) substrates, low surface energy (LSE) plastics, and metals. The high-strength acrylic adhesive provides reliable adhesion with good peel strength, excellent temperature resistance from -40°F to 250°F, and superior UV resistance. The clear transparent color makes it suitable for applications where visibility through the tape is important, and it leaves minimal residue upon removal.
The 9009 tape comes in a convenient roll format measuring 54 inches wide by 60 yards long, packed as 1 roll per case. This industrial-occupational product is engineered for professional use in manufacturing, construction, automotive, aerospace, and electronics industries. It is not intended for consumer use and must be applied in accordance with all applicable health and safety regulations and professional installation guidelines.
Key Features
- Ultra-thin 2.1 mil total thickness with 0.8 mil high-strength acrylic adhesive on both sides
- High adhesion to HSE, LSE, and metal substrates with excellent peel strength
- Wide temperature operating range from -40°F to 250°F with superior UV resistance
- Clear transparent color for visibility and aesthetic applications
- Polyester film carrier with 55 lb densified kraft paper liner for durability and ease of handling
Technical Specifications
| Specification |
Value |
| Product Type | Double Coated Tape |
| Overall Width | 54 inches (137 cm) |
| Overall Length | 60 yards (54.86 meters) |
| Total Thickness | 2.1 mils (0.05 mm) |
| Carrier Material | Polyester Film (0.5 mil / 0.013 mm) |
| Adhesive Type | High Performance Acrylic Adhesive 300 |
| Face Side Adhesive Thickness | 0.8 mil (0.02 mm) |
| Back Side Adhesive Thickness | 0.8 mil (0.02 mm) |
| Primary Liner | 55 lb Densified Kraft Paper (3.2 mil / 0.08 mm) |
| Liner Color | White |
| Product Color | Transparent/Clear |
| Core Size | 3 inches (76.2 mm) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 250°F (121°C) |
| Number of Adhesive Sides | Double-sided |
| Product Form | Roll |
| Units per Case | 1 Roll |
| Part Number | 9009 |
| 3M Product ID | 7000017816 |
| UPC | 00051115256363 |
Order 3M Double Coated Tape 9009 Clear 54 Inch Industrial at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
