Industrial-grade double-coated paper tape with strong rubber adhesive for instant bonding, ideal for splicing, mounting, and temporary holding applications in construction, fabrication, and sports equipment assembly.

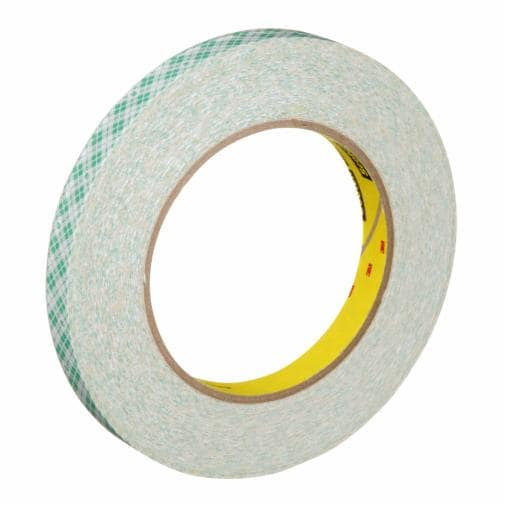

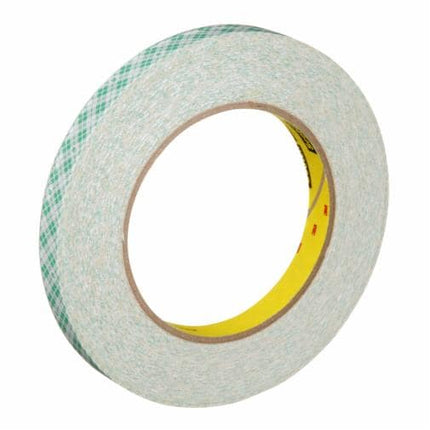

3M™ Double Coated Paper Tape 410M is a premium quick-grab double-coated adhesive tape featuring a strong rubber resin pressure-sensitive adhesive system that delivers instant bonding on a wide variety of substrates. This industrial-grade tape is specifically engineered with a hand-tearable paper carrier and features 3M™ Adhesive 860, offering dependable hold for temporary attachments and project stabilization. The tape adheres excellently to papers, foils, films, fabrics, and other materials, making it ideal for splicing, core starting, golf club grip attachment, and mounting printing plates to print cylinders.
The 410M tape construction includes a robust 54 lb. densified kraft paper release liner with distinctive green and white plaid pattern for easy identification. This specialized liner adds dimensional stability during die-cutting and automated dispensing processes while helping reduce edge roll and protecting the tape from humidity extremes. Manufactured using a solvent-free process, this tape meets environmental best practices and sustainability goals while maintaining superior performance standards. The tape provides reliable application in sporting goods assembly and repair, construction, fabrication, and arts and crafts industries.
With exceptional temperature tolerance capabilities, the 410M tape withstands long-term use at temperatures up to 150°F (66°C) and short-term use up to 180°F (82°C), with minimum operating temperatures reaching -40°F (-40°C). Each case contains 144 rolls, making it ideal for high-volume industrial applications. The combination of strong initial adhesion, good holding power, and versatile substrate compatibility makes this double-coated paper tape a reliable solution for diverse manufacturing and assembly processes.
Key Features
- Quick-grab strong adhesive delivers instant bond on multiple substrates
- Double-coated construction provides dependable hold and project stabilization
- Hand-tearable paper carrier for easy deployment and application
- Withstands long-term use at 150°F (66°C) and short-term at 180°F (82°C)
- Green and white plaid kraft paper liner for easy identification
- Solvent-free manufacturing supports environmental sustainability goals
- Ideal for splicing, core starting, golf grips, and plate mounting
- Operates reliably from -40°F to 200°F temperature range
- Reduces edge roll and protects from humidity extremes
- Perfect for sporting goods, construction, fabrication, arts and crafts
Technical Specifications
| Specification |
Value |
| Product Name | 3M Double Coated Paper Tape 410M |
| Part Number | 410M |
| UPC Code | 00051111188040 |
| Overall Width (Imperial) | 0.25 inch |
| Overall Width (Metric) | 6.35 mm |
| Overall Length (Imperial) | 36 yards |
| Overall Length (Metric) | 32.91 meters |
| Total Tape Thickness without Liner (Imperial) | 6 mil |
| Total Tape Thickness without Liner (Metric) | 0.15 mm |
| Face Side Adhesive Thickness (Imperial) | 3 mil |
| Face Side Adhesive Thickness (Metric) | 0.08 mm |
| Back Side Adhesive Thickness (Imperial) | 2 mil |
| Back Side Adhesive Thickness (Metric) | 0.05 mm |
| Adhesive Type | Natural Rubber |
| Adhesive System | 3M Adhesive 860 - Soft rubber resin pressure sensitive |
| Backing Material | Paper |
| Primary Liner Color | Green Plaid |
| Primary Liner Thickness (Imperial) | 3 mil |
| Primary Liner Thickness (Metric) | 0.08 mm |
| Liner Material | 54 lb. densified kraft paper |
| Product Color | Natural |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Minimum Operating Temperature (Celsius) | -40°C |
| Maximum Operating Temperature (Fahrenheit) | 200°F |
| Maximum Operating Temperature (Celsius) | 93°C |
| Long-term Temperature Tolerance (Fahrenheit) | 150°F (66°C) |
| Short-term Temperature Tolerance (Fahrenheit) | 180°F (82°C) |
| Indoor/Outdoor | Indoor/Outdoor |
| Industry Classification | General Industrial |
| Smallest Saleable Unit | Roll |
| Units per Case | 144 rolls |
| Brand | 3M |
| Manufacturing Process | Solvent-free |
| Application Type | Double-coated tape |
| Recommended Uses | Splicing, core starting, golf club grips, printing plate mounting, temporary holding, die-cutting, automated dispensing |
Order 3M Double Coated Paper Tape 410M Natural 1/4 inch at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
