Premium double-coated paper tape with strong rubber adhesive for instant bonding. 15 inches wide, 36 yards long, 5 mil thick. Ideal for splicing, mounting, and temporary holding in construction, fabrication, and manufacturing applications.

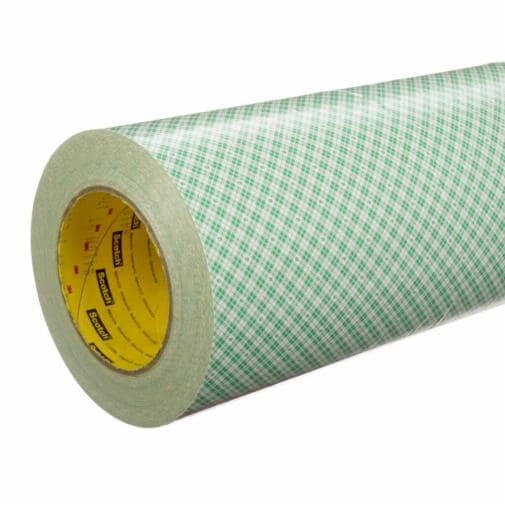

3M™ Double Coated Paper Tape 410M is a premium quick-grab double-coated tape featuring a strong rubber adhesive that provides instant bonding on a variety of substrates. This versatile industrial tape is engineered with 3M™ Adhesive 860, a soft rubber resin pressure-sensitive adhesive system that delivers high initial adhesion and excellent holding power. The tape measures 15 inches wide by 36 yards long with a total thickness of 5 mil, making it ideal for both manual and automated applications. The natural-colored tape is mounted on a robust 54 lb. densified kraft paper release liner with green and white plaid pattern for easy identification and dimensional stability during die-cutting and automated dispensing processes.
This double-coated paper tape excels in temporary attachments and project stabilization across multiple industries including construction, fabrication, arts, crafts, and manufacturing. The adhesive system performs reliably across a wide temperature range, tolerating long-term use at temperatures up to 150°F (66°C) with short-term resistance up to 180°F (82°C). The tape is hand-tearable for convenient application and manufactured using a solvent-free process, helping meet environmental best practices and sustainability goals. Its paper carrier construction increases strength while facilitating removability without leaving residue.
The 410M tape is particularly effective for splicing and core starting of papers, foils, films, and fabrics, as well as specialized applications such as golf club grip attachment and mounting rubber or photopolymer printing plates to print cylinders. The green and white plaid liner adds dimensional stability and helps reduce edge roll while protecting the tape from humidity extremes. With its dependable hold and quick-grab capability, this industrial-grade tape is the preferred solution for professionals requiring reliable temporary bonding in demanding manufacturing and assembly environments.
Key Features
- Quick-grab instant bonding with strong rubber adhesive for immediate hold on multiple substrates
- Double-coated construction with 3M™ Adhesive 860 for reliable and dependable holding power
- Hand-tearable design for convenient manual application and easy deployment
- Temperature resistant up to 150°F (66°C) long-term and 180°F (82°C) short-term use
- Solvent-free manufacturing process supporting environmental sustainability goals
- Green and white plaid kraft paper liner for easy identification and dimensional stability
- Suitable for automated dispensing and die-cutting processes
- Effective for splicing, core starting, golf club grip attachment, and printing plate mounting
Technical Specifications
| Specification |
Value |
| Product Name | 3M™ Double Coated Paper Tape 410M |
| Part Number | 410M |
| 3M Product Number | 410M |
| UPC Code | 00051115320149 |
| Overall Width (Imperial) | 15 in |
| Overall Width (Metric) | 381 mm |
| Overall Length (Imperial) | 36 yd |
| Overall Length (Metric) | 32.9 m |
| Total Tape Thickness without Liner (Imperial) | 5 mil |
| Total Tape Thickness without Liner (Metric) | 0.15 mm |
| Face Side Adhesive Thickness (Imperial) | 3 mil |
| Face Side Adhesive Thickness (Metric) | 0.08 mm |
| Back Side Adhesive Thickness (Imperial) | 2 mil |
| Back Side Adhesive Thickness (Metric) | 0.05 mm |
| Adhesive Type | Natural Rubber |
| Adhesive System | 3M™ Adhesive 860 - Soft Rubber Resin Pressure Sensitive |
| Backing Material | Paper |
| Product Color | Natural |
| Primary Liner Color | Green Plaid |
| Primary Liner Thickness (Imperial) | 3 mil |
| Primary Liner Thickness (Metric) | 0.08 mm |
| Liner Material | 54 lb. Densified Kraft Paper |
| Minimum Operating Temperature (Fahrenheit) | -40 ℉ |
| Minimum Operating Temperature (Celsius) | -40 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 200 ℉ |
| Maximum Operating Temperature (Celsius) | 93 ℃ |
| Long-term Temperature Tolerance (Fahrenheit) | 150 ℉ |
| Long-term Temperature Tolerance (Celsius) | 66 ℃ |
| Short-term Temperature Tolerance (Fahrenheit) | 180 ℉ |
| Short-term Temperature Tolerance (Celsius) | 82 ℃ |
| Indoor/Outdoor Rating | Indoor/Outdoor |
| Industries | General Industrial |
| Brand | 3M™ |
| Smallest Saleable Unit | Roll |
| Units per Case | 1.0 |
| Manufacturing Process | Solvent-Free |
| Application Type | Double Coated Tape |
| Recommended Use | Industrial/Occupational Use Only |
Order 3M Double Coated Paper Tape 410M Natural 15 Inch at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
