Premium double-coated paper tape with strong rubber adhesive for instant bonding on multiple substrates. Ideal for splicing, core starting, golf club grips, and industrial assembly applications with temperature tolerance up to 150°F.

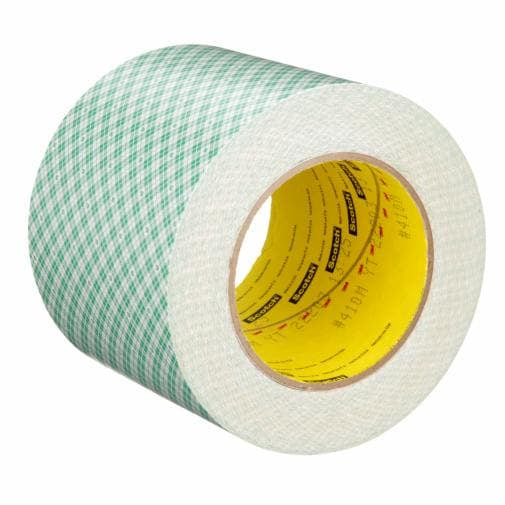

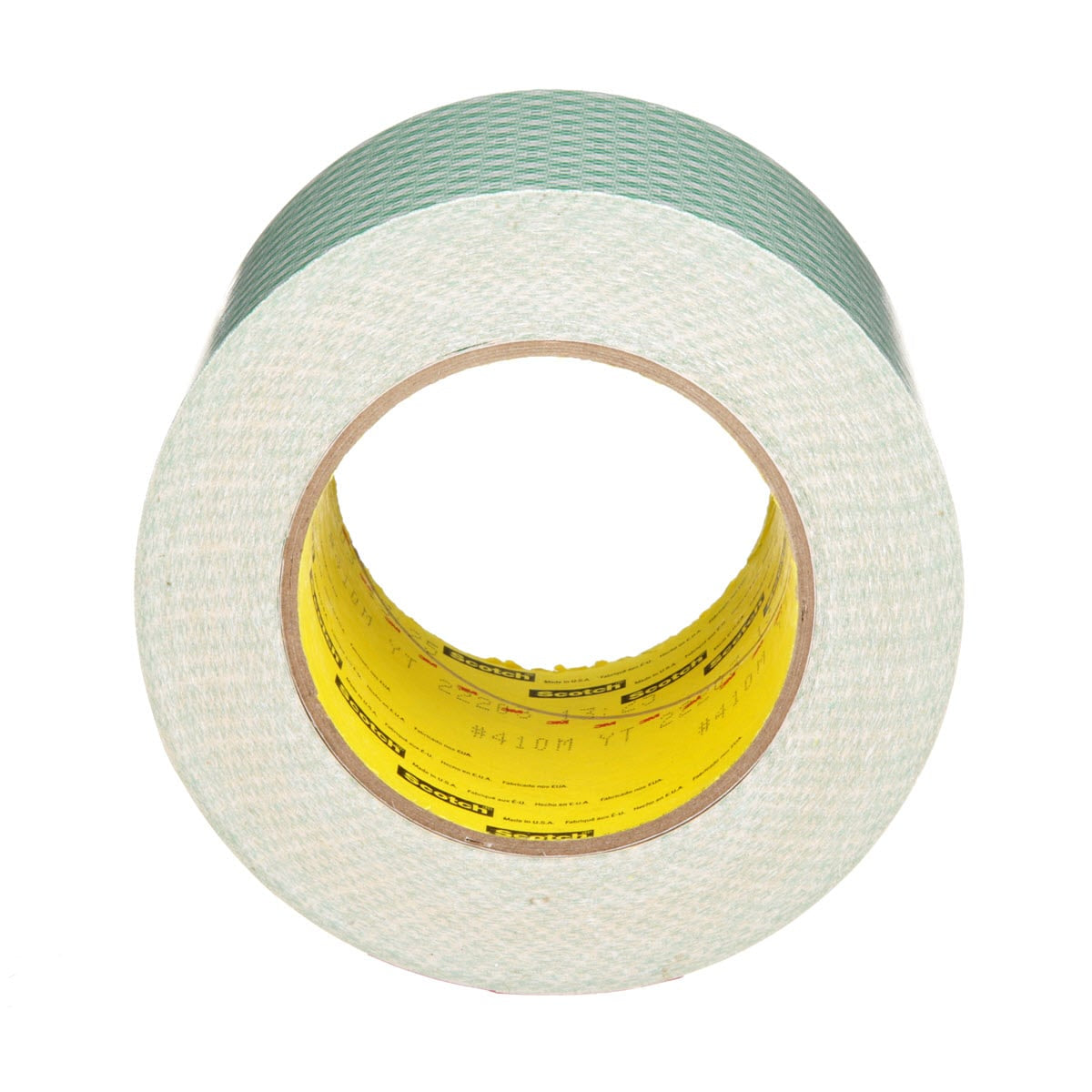

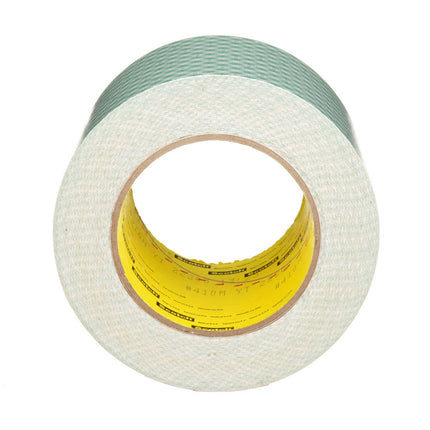

3M™ Double Coated Paper Tape 410M is a premium quick-grab double-coated tape featuring a strong rubber adhesive system (3M™ Adhesive 860) that delivers instant bonding on a wide variety of substrates. This versatile tape is engineered with a paper carrier mounted on a robust 54 lb. densified kraft paper release liner with green and white plaid pattern for easy identification. The construction offers reliable holding power for temporary attachments and project stabilization across multiple industries including construction, fabrication, arts, crafts, and sporting goods assembly.
The tape is specifically designed for splicing and core starting of papers, foils, films, and fabrics, making it ideal for golf club grip attachment, mounting rubber or photopolymer printing plates to print cylinders, and temporary holding during milling processes. With long-term temperature tolerance up to 150°F (66°C) and short-term resistance up to 180°F (82°C), this tape performs reliably in elevated temperature environments. The hand-tearable design and solvent-free manufacturing process make it environmentally responsible while maintaining dimensional stability during die-cutting and automated dispensing applications.
Manufactured using 3M™ Adhesive 860, a soft rubber resin pressure-sensitive adhesive system, this tape provides high initial adhesion with excellent holding power across a temperature range from -40°F to 150°F. The double-coated construction with adhesive on both sides ensures dependable performance for both indoor and outdoor applications, making it an essential solution for industrial and occupational use across diverse manufacturing and assembly operations.
Key Features
- Quick-grab adhesive provides instant bond on various substrates including papers, foils, films, and fabrics
- Double-coated construction with 3M™ Adhesive 860 offers dependable hold and project stabilization
- Hand-tearable design enables easy application and deployment without requiring tools or dispensers
- Temperature resistant from -40°F to 150°F long-term with short-term tolerance up to 180°F
- Solvent-free manufacturing process meets environmental best practices and sustainability goals
- Green and white plaid paper liner (54 lb. densified kraft) aids identification and dimensional stability
- Suitable for die-cutting and automated dispensing applications in industrial environments
- Ideal for golf club grip attachment, printing plate mounting, and sporting goods assembly
Technical Specifications
| Specification |
Value |
| Product Number | 410M |
| Part Number | 410M |
| UPC | 00051115319549 |
| 3M ID | 7000049323 |
| Overall Width (Imperial) | 4 inches |
| Overall Width (Metric) | 101.6 millimeters |
| Overall Length (Imperial) | 36 yards |
| Overall Length (Metric) | 32.91 meters |
| Total Tape Thickness without Liner (Imperial) | 5 mils |
| Total Tape Thickness without Liner (Metric) | 0.127 millimeters |
| Face Side Adhesive Thickness (Imperial) | 3 mils |
| Face Side Adhesive Thickness (Metric) | 0.08 millimeters |
| Back Side Adhesive Thickness (Imperial) | 2 mils |
| Back Side Adhesive Thickness (Metric) | 0.05 millimeters |
| Primary Liner Thickness (Imperial) | 3 mils |
| Primary Liner Thickness (Metric) | 0.08 millimeters |
| Primary Liner Material | 54 lb. Densified Kraft Paper |
| Primary Liner Color | Green and White Plaid |
| Adhesive Type | Natural Rubber (3M™ Adhesive 860) |
| Backing/Carrier Material | Paper |
| Product Color | Natural |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Minimum Operating Temperature (Celsius) | -40°C |
| Maximum Operating Temperature (Fahrenheit) | 200°F |
| Maximum Operating Temperature (Celsius) | 93°C |
| Long-term Temperature Tolerance (Fahrenheit) | Up to 150°F |
| Long-term Temperature Tolerance (Celsius) | Up to 66°C |
| Short-term Temperature Tolerance (Fahrenheit) | Up to 180°F |
| Short-term Temperature Tolerance (Celsius) | Up to 82°C |
| Units per Case | 8 rolls |
| Smallest Saleable Unit | Roll |
| Indoor/Outdoor Rating | Indoor/Outdoor |
| Industry Classification | General Industrial |
| Brand | 3M™ |
| Manufacturing Process | Solvent-free |
| Application Type | Double-coated pressure-sensitive |
| Recommended Use | Industrial/Occupational use only |
Order 3M Double Coated Paper Tape 410M Natural 4in x 36yd at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
