Premium double-coated paper tape with strong rubber adhesive for instant bonding on multiple substrates. Features hand-tearable construction, temperature resistance up to 180°F, and solvent-free manufacturing for reliable performance in industrial applications.

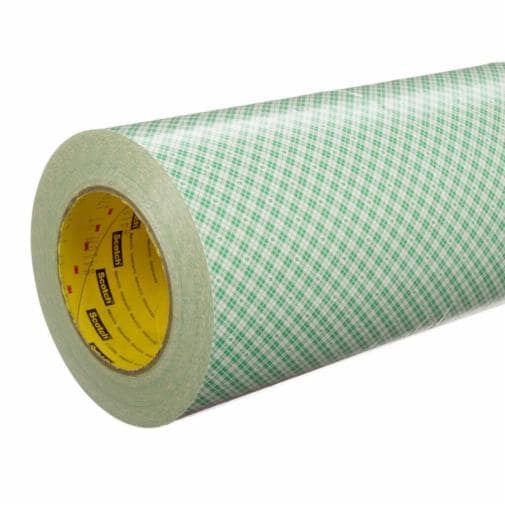

3M™ Double Coated Paper Tape 410M is a premium quick-grab double-coated tape engineered with a strong rubber adhesive that delivers dependable holding power for temporary attachments and project stabilization across diverse applications. This versatile industrial-grade tape adheres excellently to a wide variety of substrates including papers, foils, films, and fabrics, making it ideal for splicing, core starting, golf club grip attachment, and mounting printing plates. The tape features a robust 54 lb. densified kraft paper release liner with green and white plaid coloring for easy identification, designed to increase strength and facilitate removability while maintaining dimensional stability during die-cutting and automated dispensing processes.
Manufactured using a solvent-free process, this tape incorporates 3M™ Adhesive 860, a soft rubber resin pressure-sensitive adhesive system that provides high initial adhesion and excellent holding power across a wide temperature range. The tape withstands long-term use at temperatures up to 150°F (66°C) and short-term exposure up to 180°F (82°C), with minimum operating temperatures as low as -40°F (-40°C). The hand-tearable construction combined with the paper carrier design helps reduce edge roll and protects the tape from humidity extremes, making it suitable for construction, fabrication, arts, crafts, and numerous industrial applications.
Each roll measures 23.5 inches in width and 36 yards in length with a total tape thickness of 5 mil without liner. The face side adhesive is 3 mil thick while the back side is 2 mil, providing optimal balance between adhesion strength and removability. This reliable solution is particularly effective for mounting rubber or photopolymer printing plates to print cylinders, temporary holding during milling processes, and sporting goods assembly such as golf club and hockey stick grip attachment, helping companies deliver competitive products to market faster and more efficiently.
Key Features
- Quick-grab adhesive provides instant bond on variety of substrates for immediate holding
- Double-coated construction with 3M Adhesive 860 delivers dependable hold and project stabilization
- Temperature resistant: long-term use up to 150°F (66°C), short-term up to 180°F (82°C)
- Hand-tearable paper carrier with green plaid liner for easy identification and removability
- Solvent-free manufacturing supports environmental best practices and sustainability goals
- Ideal for splicing, core starting, golf club grips, printing plate mounting, and sporting goods assembly
- Suitable for industrial use in construction, fabrication, arts, crafts, and automated dispensing
- Reduces edge roll and protects from humidity extremes during die-cutting and processing
Technical Specifications
| Specification |
Value |
| Part Number | 410M |
| UPC Code | 00051111917060 |
| Brand | 3M™ |
| Overall Width (Imperial) | 23.5 inches |
| Overall Width (Metric) | 596.9 mm |
| Overall Length (Imperial) | 36 yards |
| Overall Length (Metric) | 32.91 meters |
| Total Tape Thickness without Liner (Imperial) | 5 mil |
| Total Tape Thickness without Liner (Metric) | 0.15 mm |
| Face Side Adhesive Thickness (Imperial) | 3 mil |
| Face Side Adhesive Thickness (Metric) | 0.08 mm |
| Back Side Adhesive Thickness (Imperial) | 2 mil |
| Back Side Adhesive Thickness (Metric) | 0.05 mm |
| Primary Liner Thickness (Imperial) | 3 mil |
| Primary Liner Thickness (Metric) | 0.08 mm |
| Adhesive Type | Natural Rubber - 3M Adhesive 860 |
| Backing Material | Paper (54 lb. densified kraft paper) |
| Primary Liner Color | Green Plaid |
| Product Color | Natural |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Minimum Operating Temperature (Celsius) | -40°C |
| Maximum Operating Temperature (Fahrenheit) | 200°F |
| Maximum Operating Temperature (Celsius) | 93°C |
| Long-term Temperature Rating (Fahrenheit) | 150°F (66°C) |
| Short-term Temperature Rating (Fahrenheit) | 180°F (82°C) |
| Indoor/Outdoor | Indoor/Outdoor |
| Industry Classification | General Industrial |
| Smallest Saleable Unit | Roll |
| Units per Case | 1 Roll |
| Manufacturing Process | Solvent-free |
| Application Method | Hand-tearable or dispenser application |
| Regulatory Status | For industrial/occupational use only |
