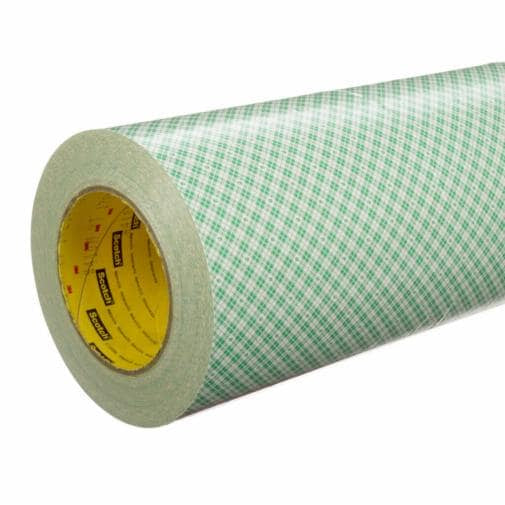

Premium 3M double-coated paper tape with strong rubber adhesive, ideal for splicing, mounting, and temporary holding applications. Features 10 inch width, 36 yard length, instant bond, and temperature resistance up to 180°F. 4 rolls per case.
3M™ Double Coated Paper Tape 410M is a premium quick-grab double-coated tape engineered with a strong rubber adhesive system that delivers dependable hold for temporary attachments and project stabilization across diverse industrial applications. This versatile tape adheres to a wide variety of substrates including papers, foils, films, and fabrics, making it ideal for splicing, core starting, golf club grip attachment, and mounting applications. The tape features 3M™ Adhesive 860, a soft rubber resin pressure-sensitive adhesive that provides high initial adhesion and excellent holding power while maintaining performance across a wide temperature range from -40°F to 150°F for long-term use, with short-term capability up to 180°F.
The tape is constructed with a hand-tearable double-coated paper carrier design featuring a robust 54 lb. densified kraft paper release liner with distinctive green and white plaid pattern for easy identification. This construction adds dimensional stability during die-cutting and automated dispensing processes while reducing edge roll and protecting the tape from humidity extremes. Manufactured using a solvent-free process, this tape aligns with environmental best practices and sustainability goals, making it an eco-conscious choice for industrial operations.
With 4 rolls per case, each measuring 10 inches wide by 36 yards long with 5 mil total thickness, the 3M™ Double Coated Paper Tape 410M is suitable for construction, fabrication, arts and crafts, sporting goods assembly and repair, and numerous other industrial applications. The tape's reliable performance in mounting rubber or photopolymer printing plates to print cylinders, temporary holding during milling processes, and its ability to withstand elevated temperatures make it an essential solution for demanding industrial environments.
Key Features
- Quick-grab instant bond with strong rubber adhesive on multiple substrates
- Double-coated construction provides reliable hold while stabilizing projects
- Hand-tearable design for convenient application without tools
- Temperature resistant from -40°F to 150°F long-term, 180°F short-term
- Solvent-free manufacturing process supports environmental best practices
- Green and white plaid paper liner for easy identification
- Ideal for splicing, core starting, golf club grips, and printing plate mounting
- Dimensional stability during die-cutting and automated dispensing processes
Technical Specifications
| Specification |
Value |
| Product Number | 410M |
| UPC Code | 00051111917107 |
| Overall Width (Imperial) | 10 inches |
| Overall Width (Metric) | 254 millimeters |
| Overall Length (Imperial) | 36 yards |
| Overall Length (Metric) | 32.91 meters |
| Total Tape Thickness (Imperial) | 6 mil |
| Total Tape Thickness (Metric) | 0.15 millimeters |
| Face Side Adhesive Thickness (Imperial) | 3 mil |
| Face Side Adhesive Thickness (Metric) | 0.08 millimeters |
| Back Side Adhesive Thickness (Imperial) | 2 mil |
| Back Side Adhesive Thickness (Metric) | 0.05 millimeters |
| Primary Liner Thickness (Imperial) | 3 mil |
| Primary Liner Thickness (Metric) | 0.08 millimeters |
| Adhesive Type | Natural Rubber - 3M Adhesive 860 |
| Backing Material | Paper |
| Liner Material | 54 lb. Densified Kraft Paper |
| Liner Color | Green and White Plaid |
| Product Color | Natural |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Minimum Operating Temperature (Celsius) | -40°C |
| Maximum Operating Temperature (Fahrenheit) | 200°F |
| Maximum Operating Temperature (Celsius) | 93°C |
| Long-term Temperature Resistance (Fahrenheit) | Up to 150°F |
| Long-term Temperature Resistance (Celsius) | Up to 66°C |
| Short-term Temperature Resistance (Fahrenheit) | Up to 180°F |
| Short-term Temperature Resistance (Celsius) | Up to 82°C |
| Indoor/Outdoor Rating | Indoor/Outdoor |
| Application Type | General Industrial |
| Smallest Saleable Unit | Roll |
| Units per Case | 4 rolls |
| Manufacturing Process | Solvent-free |
| Brand | 3M |
Order 3M Double Coated Paper Tape 410M Natural 10 inch at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
