Industrial-grade double-coated paper tape with strong rubber adhesive, ideal for splicing, bonding, and temporary holding applications across multiple industries including construction, fabrication, and sporting goods assembly.

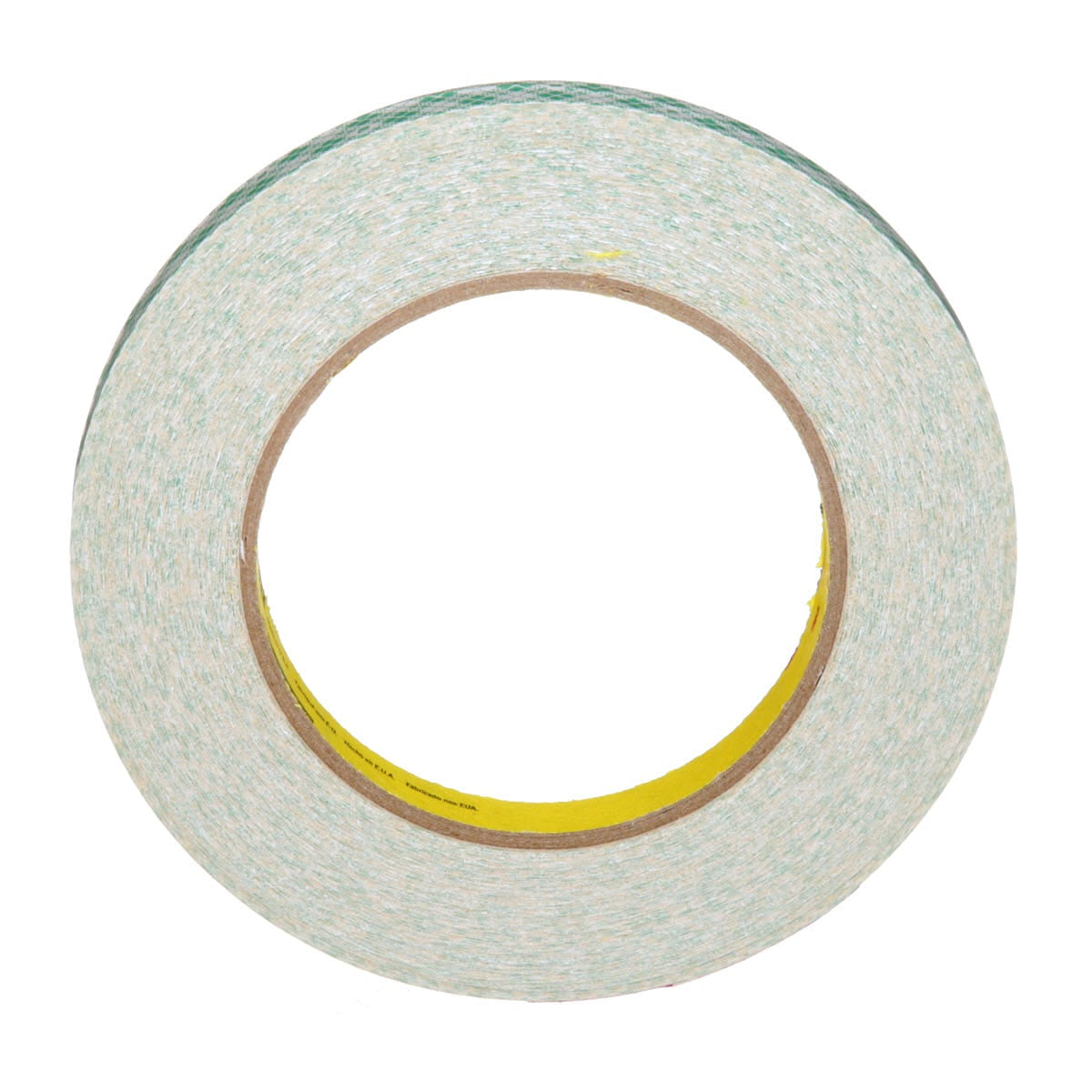

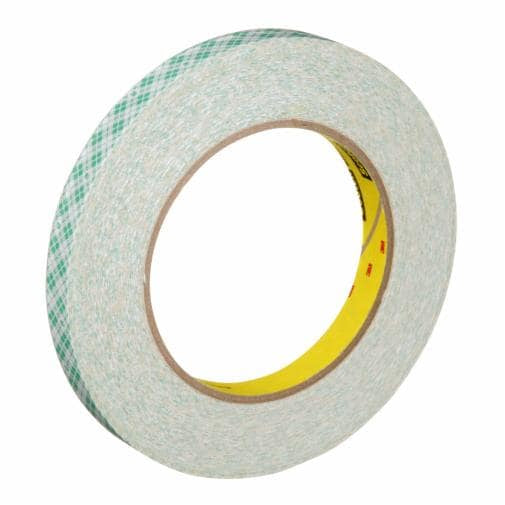

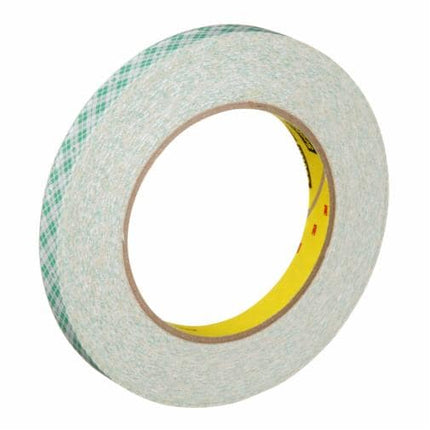

3M™ Double Coated Paper Tape 410M is a premium quick-grab double-coated tape featuring a strong rubber adhesive system that delivers instant bonding on a wide variety of substrates. This industrial-grade tape is engineered with 3M™ Adhesive 860, a soft rubber resin pressure-sensitive adhesive that provides exceptional initial adhesion and reliable holding power. The tape is constructed on a robust 54 lb. densified kraft paper release liner with green and white plaid coloring for easy identification, ensuring dimensional stability during die-cutting and automated dispensing processes.
This versatile double-coated paper tape is ideal for splicing and core starting of papers, foils, films, and fabrics, making it an excellent choice for construction, fabrication, arts, crafts, and sporting goods assembly. The tape excels in golf club grip attachment, hockey stick grip installation, and mounting rubber or photopolymer printing plates to print cylinders. With a hand-tearable design and solvent-free manufacturing process, it meets environmental best practices while delivering consistent performance. The adhesive system performs reliably across a wide temperature range from -40°F (-40°C) up to 150°F (65°C) for long-term use, with short-term heat resistance up to 180°F (82°C).
Each case contains 144 rolls of tape, each measuring 3/16 inch (4.76mm) in width and 36 yards (32.91m) in length with a total thickness of 6 mil (0.15mm) without liner. The paper carrier is designed to increase strength and facilitate removability, while the green and white plaid liner protects the tape from humidity extremes. This product is intended for industrial and occupational use only and is not suitable for consumer applications.
Key Features
- Quick-grab adhesive provides instant bonding on various substrates
- Double-coated construction ensures reliable hold and project stabilization
- Hand-tearable design for easy manual application without tools
- Temperature resistant from -40°F to 150°F long-term, up to 180°F short-term
- Solvent-free manufacturing supports environmental sustainability goals
- Green and white plaid liner for easy identification
- Ideal for golf club grips, hockey sticks, and sporting equipment assembly
- Suitable for splicing papers, foils, films, and fabrics
- Excellent for die-cutting and automated dispensing processes
- Multipurpose applications across construction, fabrication, arts and crafts
Technical Specifications
| Specification |
Value |
| Product Name | 3M Double Coated Paper Tape 410M |
| Part Number | 410M |
| 3M ID | 7010374322 |
| UPC Code | 00051111071793 |
| Adhesive Type | Natural Rubber - 3M Adhesive 860 |
| Backing Material | Paper Carrier (54 lb. densified kraft) |
| Overall Width (Imperial) | 0.18 inches (3/16 inch) |
| Overall Width (Metric) | 4.76 millimeters |
| Overall Length (Imperial) | 36 yards |
| Overall Length (Metric) | 32.91 meters |
| Total Tape Thickness without Liner (Imperial) | 6 mil |
| Total Tape Thickness without Liner (Metric) | 0.15 millimeters |
| Face Side Adhesive Thickness (Imperial) | 3 mil |
| Face Side Adhesive Thickness (Metric) | 0.08 millimeters |
| Back Side Adhesive Thickness (Imperial) | 2 mil |
| Back Side Adhesive Thickness (Metric) | 0.05 millimeters |
| Primary Liner Color | Green and White Plaid |
| Primary Liner Thickness (Imperial) | 3 mil |
| Primary Liner Thickness (Metric) | 0.08 millimeters |
| Product Color | Natural |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Minimum Operating Temperature (Celsius) | -40°C |
| Maximum Operating Temperature Long-term (Fahrenheit) | 150°F |
| Maximum Operating Temperature Long-term (Celsius) | 66°C |
| Maximum Operating Temperature Short-term (Fahrenheit) | 180°F |
| Maximum Operating Temperature Short-term (Celsius) | 82°C |
| Indoor/Outdoor Use | Indoor/Outdoor |
| Industry Classification | General Industrial |
| Smallest Saleable Unit | Roll |
| Units per Case | 144 rolls |
| Brand | 3M |
| Application Type | Double Coated Tape |
| Manufacturing Process | Solvent-free |
Order 3M Double Coated Paper Tape 410M Natural 3/16 inch at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
