Premium double-coated paper tape with strong rubber adhesive for instant bonding, featuring natural rubber adhesive, 1 inch width, 10 yard length, 36 rolls per case, suitable for industrial splicing, golf grips, and printing plate mounting.

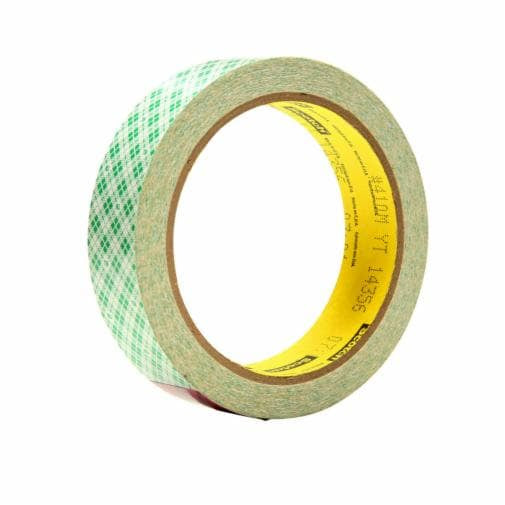

3M™ Double Coated Paper Tape 410M is a premium quick-grab double-coated tape featuring a strong rubber adhesive that delivers instant bonding and dependable hold for temporary attachments and project stabilization. This versatile tape is designed with 3M™ Adhesive 860, a soft rubber resin pressure sensitive adhesive system that provides high initial adhesion and excellent holding power to a wide variety of substrates including papers, foils, films, fabrics, and more. The tape features a robust 54 lb. densified kraft paper release liner with green and white plaid design for easy identification, which adds dimensional stability during die-cutting and automated dispensing processes while helping reduce edge roll and protecting against humidity extremes.
The hand-tearable construction makes this tape ideal for splicing and core starting of papers, foils, films, and fabrics, golf club grip attachment, mounting rubber or photopolymer printing plates to print cylinders, and temporary holding during finishing processes. With a total thickness of 6 mil without liner and overall dimensions of 1 inch width by 10 yards length, this tape is engineered for both indoor and outdoor applications across multiple industries including construction, fabrication, arts, crafts, and general industrial uses. The manufacturing process is solvent-free, supporting environmental best practices and sustainability goals.
This industrial-grade tape offers exceptional temperature performance, withstanding long-term use at temperatures up to 150°F (66°C) and short-term use up to 180°F (82°C), with minimum operating temperatures as low as -40°F (-40°C). Each case contains 36 rolls, making it ideal for high-volume industrial operations. The natural color and paper backing provide excellent visibility and handling characteristics, while the double-coated construction ensures reliable performance across demanding applications in sporting goods assembly, printing plate mounting, and various fabrication processes.
Key Features
- Quick-grab double-coated construction with strong rubber adhesive for instant bonding
- 3M™ Adhesive 860 soft rubber resin pressure sensitive system for high initial adhesion
- Hand-tearable design for easy manual application and precise cutting
- Temperature resistant: long-term use up to 150°F (66°C), short-term up to 180°F (82°C)
- 54 lb. densified kraft paper release liner with green and white plaid identification
- Solvent-free manufacturing process supporting environmental sustainability
- Ideal for splicing, core starting, golf club grips, and printing plate mounting
- Indoor/outdoor rated for versatile industrial applications
- Reduces edge roll and protects from humidity extremes
- 36 rolls per case for high-volume industrial operations
Technical Specifications
| Specification |
Value |
| Product Name | 3M™ Double Coated Paper Tape 410M |
| Part Number | 410M |
| 3M Product Number | 410M |
| 3M ID | 7010373939 |
| UPC | 00051115319365 |
| Overall Width (Imperial) | 1 inch |
| Overall Width (Metric) | 25.4 mm |
| Overall Length (Imperial) | 10 yards |
| Overall Length (Metric) | 9.14 meters |
| Total Tape Thickness without Liner (Imperial) | 6 mil |
| Total Tape Thickness without Liner (Metric) | 0.15 mm |
| Face Side Adhesive Thickness (Imperial) | 3 mil |
| Face Side Adhesive Thickness (Metric) | 0.08 mm |
| Back Side Adhesive Thickness (Imperial) | 2 mil |
| Back Side Adhesive Thickness (Metric) | 0.05 mm |
| Adhesive Type | Natural Rubber |
| Adhesive System | 3M™ Adhesive 860 - Soft Rubber Resin Pressure Sensitive |
| Backing Material | Paper |
| Product Color | Natural |
| Primary Liner Color | Green Plaid |
| Primary Liner Thickness (Imperial) | 3 mil |
| Primary Liner Thickness (Metric) | 0.08 mm |
| Liner Material | 54 lb. Densified Kraft Paper |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Minimum Operating Temperature (Celsius) | -40°C |
| Maximum Operating Temperature (Fahrenheit) | 200°F |
| Maximum Operating Temperature (Celsius) | 93°C |
| Long-term Temperature Rating (Fahrenheit) | 150°F |
| Long-term Temperature Rating (Celsius) | 66°C |
| Short-term Temperature Rating (Fahrenheit) | 180°F |
| Short-term Temperature Rating (Celsius) | 82°C |
| Indoor/Outdoor Rating | Indoor/Outdoor |
| Industry Classification | General Industrial |
| Brand | 3M™ |
| Smallest Saleable Unit | Roll |
| Units per Case | 36 rolls |
| Application Type | Bonding, Mounting, Splicing, Temporary Holding |
| Recommended Applications | Splicing and core starting of papers, foils, films and fabrics; Golf club grip attachment; Mounting rubber or photopolymer printing plates; Temporary holding during milling processes |
| Manufacturing Process | Solvent-free |
| Tape Type | Double Coated Paper Tape |
| Use Designation | Industrial/Occupational Use Only |
Order 3M Double Coated Paper Tape 410M Natural 1 inch at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
