Premium double-coated paper tape with strong rubber adhesive for instant bonding, reliable hold, and multipurpose industrial applications including splicing, core starting, and golf grip attachment.

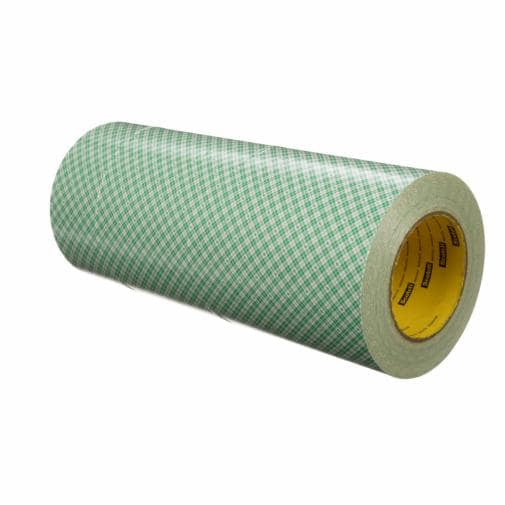

The 3M™ Double Coated Paper Tape 410M is a premium quick-grab double-coated tape featuring a strong rubber adhesive that delivers dependable hold for temporary attachments and project stabilization. Engineered with 3M™ Adhesive 860, this tape adheres to a wide variety of substrates including papers, foils, films, and fabrics. The tape is hand-tearable and mounted on a robust 54 lb. densified kraft paper release liner with green and white plaid pattern for easy identification. This construction increases strength, improves removability, and adds dimensional stability during die-cutting and automated dispensing processes.
The tape is specifically designed for industrial and occupational applications, offering exceptional performance in construction, fabrication, arts, crafts, and manufacturing environments. It excels in splicing and core starting of papers, foils, films, and fabrics, as well as golf club grip attachment and mounting rubber or photopolymer printing plates to print cylinders. The solvent-free manufacturing process ensures environmental best practices compliance while maintaining superior adhesive performance.
With temperature tolerance capabilities of up to 150°F (66°C) for long-term use and 180°F (82°C) for short-term applications, this tape performs reliably across a wide temperature range from -40°F (-40°C) to 150°F (65°C). The natural rubber resin pressure-sensitive adhesive system provides high initial adhesion and excellent holding power, making it an ideal solution for temporary holding applications in milling processes and various industrial bonding requirements.
Key Features
- Quick-grab technology with strong rubber adhesive for instant bond on multiple substrates
- Double-coated construction provides reliable hold while stabilizing projects and temporary attachments
- Hand-tearable design with paper carrier for easy application and improved removability
- Temperature tolerance from -40°F to 150°F with short-term capability up to 180°F
- Solvent-free manufacturing process supporting environmental sustainability goals
- Green and white plaid pattern release liner for easy identification and dimensional stability
- Ideal for splicing, core starting, golf club grips, and printing plate mounting
- Suitable for construction, fabrication, arts, crafts, and automated dispensing applications
- 54 lb. densified kraft paper liner reduces edge roll and protects from humidity
- Industrial-grade adhesive for workplace use in manufacturing and assembly operations
Technical Specifications
| Specification |
Value |
| Product Number | 410M |
| Part Number | 410M |
| 3M ID | 7000049325 |
| UPC Code | 00051115320125 |
| Overall Width (Imperial) | 12 inches |
| Overall Width (Metric) | 304.8 mm |
| Overall Length (Imperial) | 36 yards |
| Overall Length (Metric) | 32.9 meters |
| Total Tape Thickness without Liner (Imperial) | 5 mil |
| Total Tape Thickness without Liner (Metric) | 0.15 mm |
| Face Side Adhesive Thickness (Imperial) | 3 mil |
| Face Side Adhesive Thickness (Metric) | 0.08 mm |
| Back Side Adhesive Thickness (Imperial) | 2 mil |
| Back Side Adhesive Thickness (Metric) | 0.05 mm |
| Primary Liner Thickness (Imperial) | 3 mil |
| Primary Liner Thickness (Metric) | 0.08 mm |
| Adhesive Type | Natural Rubber |
| Adhesive System | 3M™ Adhesive 860 - Soft Rubber Resin Pressure Sensitive |
| Backing/Carrier Material | Paper |
| Product Color | Natural |
| Primary Liner Color | Green Plaid |
| Liner Material | 54 lb. Densified Kraft Paper |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Minimum Operating Temperature (Celsius) | -40°C |
| Maximum Operating Temperature (Fahrenheit) | 200°F |
| Maximum Operating Temperature (Celsius) | 93°C |
| Long-Term Temperature Tolerance | Up to 150°F (66°C) |
| Short-Term Temperature Tolerance | Up to 180°F (82°C) |
| Indoor/Outdoor | Indoor/Outdoor |
| Industry Classification | General Industrial |
| Smallest Saleable Unit | Roll |
| Units per Case | 4 rolls |
| Brand | 3M™ |
| Application Type | Bonding, Mounting, Transfer, Temporary Holding |
| Recommended Use | Splicing, core starting, golf club grips, printing plate mounting, temporary holding |
| Manufacturing Process | Solvent-free |
| Certification | Industrial/Occupational Use Only - Not for Consumer Sale |
Order 3M Double Coated Paper Tape 410M Natural 12in x 36yd at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
