Industrial-grade double-coated paper tape with strong rubber adhesive for instant bonding on multiple substrates. Quick-grab formula with dependable hold for splicing, mounting, and temporary holding applications. Temperature resistant up to 150°F long-term, 180°F short-term.

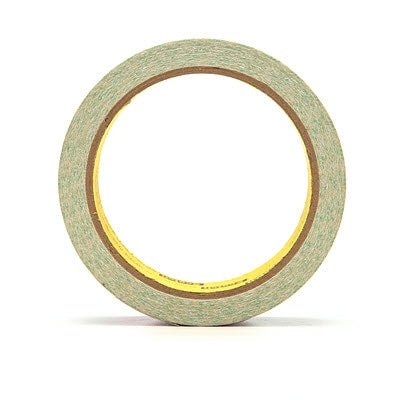

3M™ Double Coated Paper Tape 410M is a premium quick-grab double-coated adhesive tape engineered with a strong rubber adhesive that provides an instant bond on a variety of substrates. This versatile tape features a dependable hold for temporary attachments and project stabilization across multiple industries including construction, fabrication, arts, crafts, and manufacturing. The tape is specifically designed for splicing and core starting of papers, foils, films, and fabrics, as well as specialized applications such as golf club grip attachment and mounting rubber or photopolymer printing plates to print cylinders.

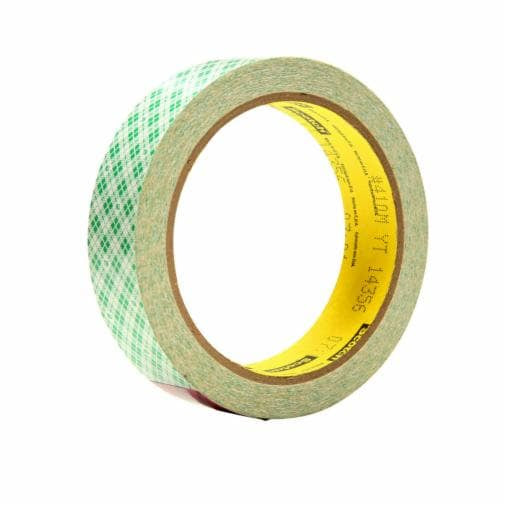

The 410M tape utilizes 3M™ Adhesive 860, a soft rubber resin pressure-sensitive adhesive system that delivers high initial adhesion and excellent holding power across a wide range of materials. This hand-tearable double-coated construction is mounted on a robust 54 lb. densified kraft paper release liner with distinctive green and white plaid design for easy identification. The paper carrier backing increases strength and enhances removability while providing dimensional stability during die-cutting and automated dispensing processes. The tape can tolerate elevated temperature environments, withstanding long-term use at temperatures up to 150°F (66°C) and short-term exposure up to 180°F (82°C).
Manufactured using a solvent-free process, this tape meets environmental best practices and sustainability goals while maintaining superior performance standards. The 410M is available in a convenient 36 roll per case configuration, with each roll measuring 1 inch wide by 10 yards long and 5 mil total thickness. Perfect for industrial and occupational applications, this tape combines reliability, ease of use, and environmental consciousness for professional-grade bonding solutions.
Key Features
- Quick-grab adhesive with instant bond on multiple substrates
- Double-coated construction for reliable hold and project stabilization
- Hand-tearable design for easy application and deployment
- Temperature resistant from -40°F to 150°F long-term, 180°F short-term
- Solvent-free manufacturing process for environmental sustainability
- Green and white plaid paper liner for easy identification
- Suitable for die-cutting and automated dispensing processes
- Ideal for splicing, mounting, and grip attachment applications
Technical Specifications
| Specification |
Value |
| Product Number | 410M |
| Overall Width (Imperial) | 1 inch |
| Overall Width (Metric) | 25.4 mm |
| Overall Length (Imperial) | 10 yards |
| Overall Length (Metric) | 9.14 meters |
| Total Tape Thickness without Liner (Imperial) | 6 mil |
| Total Tape Thickness without Liner (Metric) | 0.15 mm |
| Face Side Adhesive Thickness (Imperial) | 3 mil |
| Face Side Adhesive Thickness (Metric) | 0.08 mm |
| Back Side Adhesive Thickness (Imperial) | 2 mil |
| Back Side Adhesive Thickness (Metric) | 0.05 mm |
| Adhesive Type | Natural Rubber (3M Adhesive 860) |
| Backing Material | Paper |
| Primary Liner Color | Green and White Plaid |
| Primary Liner Thickness (Imperial) | 3 mil |
| Primary Liner Thickness (Metric) | 0.08 mm |
| Liner Material | 54 lb. Densified Kraft Paper |
| Product Color | Natural |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Minimum Operating Temperature (Celsius) | -40°C |
| Maximum Operating Temperature (Fahrenheit) | 200°F (180°F short-term, 150°F long-term) |
| Maximum Operating Temperature (Celsius) | 93°C (66°C long-term, 82°C short-term) |
| Indoor/Outdoor | Indoor/Outdoor |
| Industries | General Industrial |
| Smallest Saleable Unit | Roll |
| Units per Case | 36 rolls |
| UPC Code | 00051115319365 |
| 3M ID | 7010373939 |
| Brand | 3M |
| Manufacturing Process | Solvent-free |
