Heavy-duty double-coated paper tape with strong rubber adhesive for temporary attachments, splicing, and core starting applications. Features 9 mil thickness, temperature resistance to 180°F, and solvent-free manufacturing. Case of 12 rolls.

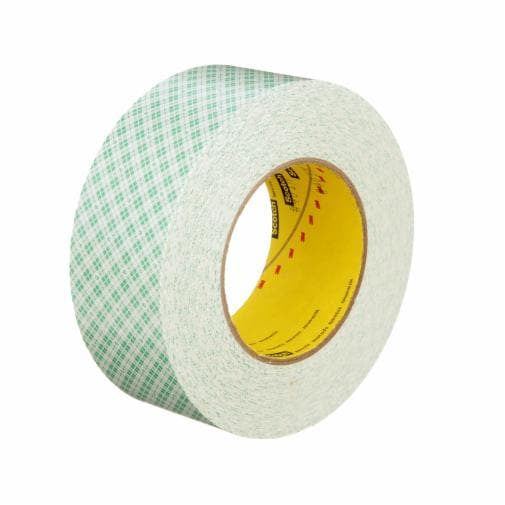

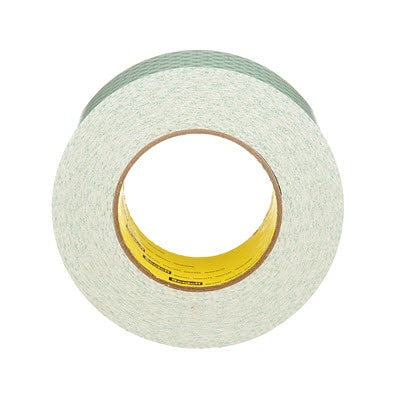

3M™ Double Coated Paper Tape 401M is a robust double-coated tape engineered with a strong rubber adhesive that delivers dependable holding power for temporary attachments and project stabilization across multiple industries. This industrial-grade tape features a total thickness of 9 mils without the liner and is specifically designed for splicing and core starting of papers, foils, films, and fabrics. The tape utilizes 3M™ Adhesive 860, a soft rubber resin pressure-sensitive adhesive system that provides high initial adhesion and excellent holding power to a wide variety of substrates. The natural-colored tape is mounted on a 54 lb. densified kraft paper release liner with green and white plaid pattern for easy identification, adding dimensional stability during die-cutting and automated dispensing processes.
This versatile double-coated paper tape excels in temperature-controlled environments, withstanding long-term use at temperatures up to 150°F (66°C) with short-term capability up to 180°F (82°C). The hand-tearable design allows for easy deployment while helping reduce edge roll and protecting the tape from humidity extremes. Manufactured using a solvent-free process, 3M™ Double Coated Paper Tape 401M meets environmental best practices and is ideal for construction, fabrication, arts and crafts, and industrial applications including mounting rubber or photopolymer printing plates to print cylinders and attaching golf club grips.
Each case contains 12 rolls of tape, with each roll measuring 3 inches in width and 36 yards in length. The adhesive is coated on both sides of the paper carrier to increase strength and facilitate removability for temporary holding applications. With its reliable performance characteristics and proven adhesive technology, this tape serves as an excellent solution for professionals requiring dependable temporary attachment solutions across diverse industrial and commercial applications.
Key Features
- Strong rubber adhesive provides instant bond on various substrates
- Double-coated construction with 9 mil thickness for reliable hold
- Hand-tearable design for easy deployment and manual application
- Temperature resistant up to 180°F short-term and 150°F long-term
- Solvent-free manufacturing supports environmental best practices
- Ideal for splicing, core starting, and temporary project stabilization
- Green and white plaid paper liner for easy identification
- Suitable for multiple industries including construction and fabrication
Technical Specifications
| Specification |
Value |
| Product Number | 401M |
| UPC Code | 00051111917145 |
| Overall Width | 3 inches (76.2 mm) |
| Overall Length | 36 yards (32.91 meters) |
| Total Tape Thickness | 9 mil (0.228 mm) without liner |
| Backing Material | Paper |
| Adhesive Type | Natural Rubber (3M™ Adhesive 860) |
| Product Color | Natural |
| Primary Liner Color | White/Green Plaid |
| Primary Liner Thickness | 3 mil (0.08 mm) |
| Back Side Adhesive Thickness | 3 mil (0.08 mm) |
| Face Side Adhesive Thickness | 3 mil (0.08 mm) |
| Maximum Operating Temperature | 180°F (82°C) short-term |
| Long-term Operating Temperature | 150°F (66°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Units per Case | 12 rolls |
| Product Form | Roll |
| Smallest Saleable Unit | Roll |
| Master Size Length | 108 linear yards (98.8 meters) |
| Master Size Width | 22 inches (56 cm) |
| Brand | 3M™ |
| Industry Classification | General Industrial |
| Manufacturing Process | Solvent-free |
Order 3M Double Coated Paper Tape 401M Natural 3 inch 36 yard at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
