Industrial-grade double-coated paper tape with strong rubber adhesive for temporary bonding, splicing, and project stabilization. Features 9 mil thickness, 22-inch width, temperature tolerance up to 180°F, and hand-tearable design for easy application.
3M™ Double Coated Paper Tape 401M is a robust double-coated tape engineered with a strong rubber adhesive that offers dependable hold for temporary attachments and project stabilization. This industrial-grade tape features a total thickness of 9 mils without the liner and is specifically designed for splicing and core starting of papers, foils, films, and fabrics. The tape maintains excellent performance in elevated temperature environments, withstanding long-term use at temperatures up to 150°F (66°C) with short-term capability up to 180°F (82°C). The adhesive is coated on a paper carrier designed to increase strength and facilitate removability, making it ideal for construction, fabrication, arts and crafts, and numerous industrial applications.

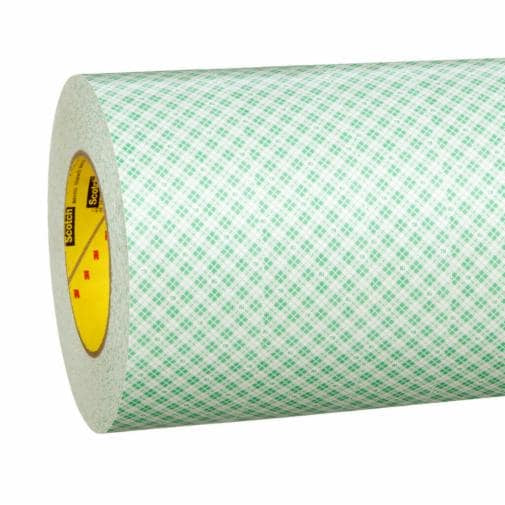

This hand-tearable double coated paper tape features 3M™ Adhesive 860, a soft rubber resin pressure-sensitive adhesive system that provides high initial adhesion and excellent holding power to a wide variety of materials. The tape is mounted on a 54 lb. densified kraft paper release liner with green and white plaid pattern for easy identification. This robust liner adds dimensional stability during die-cutting and automated dispensing processes, allows for easy deployment, helps reduce edge roll, and protects the tape from humidity extremes. The tape is manufactured using a solvent-free process, helping meet environmental best practices and sustainability goals.
3M™ Double Coated Paper Tape 401M is particularly effective for mounting rubber or photopolymer printing plates to print cylinders, attaching golf club grips, temporary holding during milling processes, and various industrial bonding applications. With its 22-inch width and 108-yard master roll length, this tape provides professional-grade performance for industrial and occupational use, delivering reliable solutions for demanding applications across multiple industries.
Key Features
- Double-coated construction with strong rubber adhesive for instant bonding on multiple substrates
- Hand-tearable design for easy manual application without need for cutting tools
- Temperature resistant with long-term use up to 150°F and short-term capability to 180°F
- Paper carrier material increases strength and facilitates easy removability from surfaces
- Solvent-free manufacturing process meets environmental best practices and sustainability standards
- Green and white plaid pattern release liner for easy identification during processing
- Ideal for splicing, core starting, printing plate mounting, and golf club grip attachment
- Dimensional stability during die-cutting and automated dispensing operations
- Protects tape from humidity extremes and reduces edge roll during storage
Technical Specifications
| Specification |
Value |
| Product Number | 401M |
| 3M ID | 7100013479 |
| Adhesive Type | Natural Rubber (3M™ Adhesive 860) |
| Backing Material | Paper (54 lb. densified kraft paper) |
| Overall Width (Imperial) | 22 inches |
| Overall Width (Metric) | 558.8 mm |
| Total Tape Thickness without Liner (Imperial) | 9 mils |
| Total Tape Thickness without Liner (Metric) | 0.228 mm |
| Back Side Adhesive Thickness (Imperial) | 3 mils |
| Back Side Adhesive Thickness (Metric) | 0.08 mm |
| Face Side Adhesive Thickness (Imperial) | 3 mils |
| Face Side Adhesive Thickness (Metric) | 0.08 mm |
| Primary Liner Thickness (Imperial) | 3 mils |
| Primary Liner Thickness (Metric) | 0.08 mm |
| Primary Liner Color | White/Green Plaid |
| Master Size Length (Imperial) | 108 Linear Yards |
| Master Size Length (Metric) | 98.8 meters |
| Master Size Width (Imperial) | 22 inches |
| Master Size Width (Metric) | 56 centimeters |
| Maximum Operating Temperature (Fahrenheit) | 180°F (short-term) |
| Maximum Operating Temperature (Celsius) | 82°C (short-term) |
| Long-term Operating Temperature (Fahrenheit) | 150°F |
| Long-term Operating Temperature (Celsius) | 66°C |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Product Color | Natural |
| Number of Adhesive Sides | Double-sided |
| Product Form | Roll |
| Smallest Saleable Unit | Roll |
| Brand | 3M™ |
| Industry Classification | General Industrial |
| Manufacturing Process | Solvent-free |
| Recommended Applications | Splicing, core starting, printing plate mounting, golf club grip attachment, temporary holding |
