Industrial-grade double-coated paper tape with strong rubber adhesive, 4 inches wide by 36 yards long, 9 mil thickness, designed for splicing, temporary attachments, and multipurpose applications with temperature resistance up to 180°F.

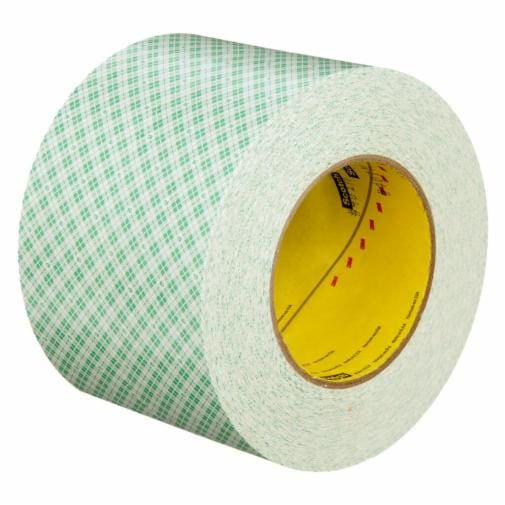

The 3M™ Double Coated Paper Tape 401M is a robust, hand-tearable double-coated adhesive tape featuring 3M™ Adhesive 860, a soft rubber resin pressure-sensitive adhesive system. This industrial-grade tape offers a total thickness of 9 mils without the liner and is designed for temporary attachments, project stabilization, and a wide variety of industrial applications. The tape is mounted on a 54 lb. densified kraft paper release liner that is green and white plaid for easy identification, adding dimensional stability during die-cutting and automated dispensing processes. Made with a solvent-free manufacturing process, this tape meets environmental best practices and goals while delivering dependable performance across multiple industries.
The 3M™ Adhesive 860 provides high initial adhesion and excellent holding power to a wide variety of materials including papers, foils, films, and fabrics. This pressure-sensitive adhesive system performs reliably under elevated temperature conditions, withstanding long-term use at temperatures up to 150°F (66°C) and short-term use up to 180°F (82°C). The tape's natural color backing and double-coated construction ensure reliable application in temporary carpet attachment for trade shows and events, mounting rubber or photopolymer printing plates to print cylinders, and attaching golf club grips. With its strong adhesive formulation and quality construction, this tape is ideal for splicing, core starting, and temporary holding applications across construction, fabrication, arts and crafts, and many other industries.
Each case contains 8 rolls of tape, with each roll measuring 4 inches wide by 36 yards long. The tape's paper carrier material increases strength and helps with removability, making it suitable for both hand application and automated dispensing systems. This versatile industrial adhesive tape is manufactured to meet the demanding requirements of professional and industrial users who need reliable, consistent performance in their critical applications.
Key Features
- Strong instant bond adhesive - Made with 3M™ Adhesive 860 rubber resin for immediate adhesion to various substrates
- Double-coated construction - Thick 9 mil tape provides reliable hold and project stabilization
- Temperature resistant - Withstands long-term use up to 150°F (66°C) and short-term use up to 180°F (82°C)
- Hand-tearable design - Easy deployment without requiring cutting tools or dispensers
- Solvent-free manufacturing - Meets environmental best practices and sustainability goals
- Easy identification - Green and white plaid paper liner for quick recognition during processing
- Multipurpose applications - Ideal for splicing, core starting, golf grip attachment, and printing plate mounting
- Removable backing - Paper carrier material increases strength while maintaining ease of removal
Technical Specifications
| Specification |
Value |
| Product Name | 3M™ Double Coated Paper Tape 401M |
| Part Number | 401M |
| UPC Code | 00051111917183 |
| Overall Width (Imperial) | 4 inches |
| Overall Width (Metric) | 101.6 mm |
| Overall Length (Imperial) | 36 yards |
| Overall Length (Metric) | 32.91 meters |
| Total Tape Thickness without Liner (Imperial) | 9 mil |
| Total Tape Thickness without Liner (Metric) | 0.228 mm |
| Backing Material | Paper |
| Carrier Material | Paper (54 lb. densified kraft) |
| Primary Liner Color | White/Green plaid |
| Product Color | Natural |
| Adhesive Type | Natural Rubber (3M™ Adhesive 860) |
| Face Side Adhesive Thickness (Imperial) | 3 mil |
| Face Side Adhesive Thickness (Metric) | 0.08 mm |
| Back Side Adhesive Thickness (Imperial) | 3 mil |
| Back Side Adhesive Thickness (Metric) | 0.08 mm |
| Primary Liner Thickness (Imperial) | 3 mil |
| Primary Liner Thickness (Metric) | 0.08 mm |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Minimum Operating Temperature (Celsius) | -40°C |
| Maximum Operating Temperature (Long-term) (Fahrenheit) | 150°F |
| Maximum Operating Temperature (Long-term) (Celsius) | 66°C |
| Maximum Operating Temperature (Short-term) (Fahrenheit) | 180°F |
| Maximum Operating Temperature (Short-term) (Celsius) | 82°C |
| Master Size Length (Imperial) | 108 linear yards |
| Master Size Length (Metric) | 98.8 meters |
| Master Size Width (Imperial) | 22 inches |
| Master Size Width (Metric) | 56 cm |
| Units per Case | 8 rolls |
| Product Form | Roll |
| Smallest Saleable Unit | Roll |
| Industries | General Industrial |
| Brand | 3M™ |
| Manufacturing Process | Solvent-free |
| Application Type | Double-coated pressure-sensitive adhesive tape |
| Recommended Use | Splicing, core starting, temporary attachments, printing plate mounting, golf grip attachment |
