Heavy-duty double-coated paper tape with instant bonding strength, ideal for splicing, core starting, and temporary holding in industrial applications. Features 9 mil thickness, temperature resistance to 180°F, and comes in 24-roll case.

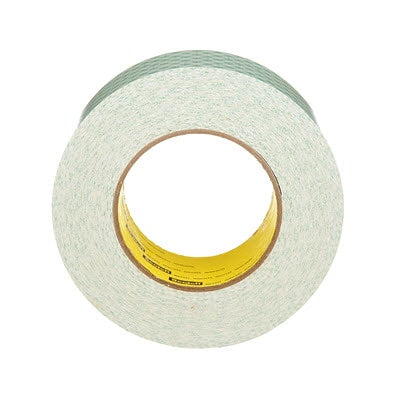

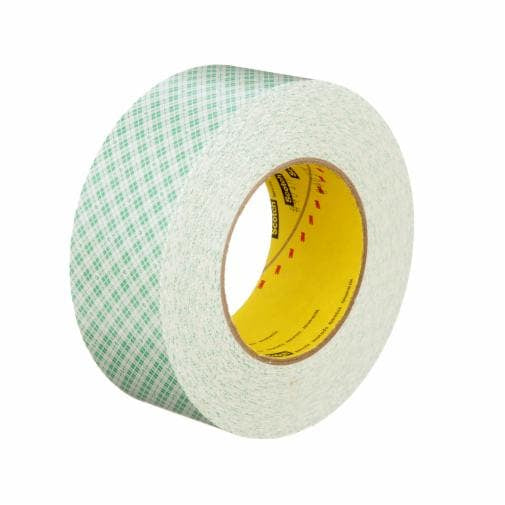

3M™ Double Coated Paper Tape 401M is a robust double-coated tape engineered with a strong rubber adhesive that provides dependable hold for temporary attachments and project stabilization. Featuring a total thickness of 9 mils without the liner, this versatile tape holds securely for splicing and core starting of papers, foils, films, and fabrics. The tape withstands elevated temperature environments, tolerating long-term use at temperatures up to 150°F (66°C) with short-term use capability up to 180°F (82°C). The adhesive is coated on a paper carrier designed to increase strength and facilitate removability, making it ideal for construction, fabrication, arts and crafts, and numerous industrial applications.
This hand-tearable double coated paper tape features 3M™ Adhesive 860, a soft rubber resin pressure sensitive adhesive system that provides high initial adhesion and excellent holding power to a wide variety of materials. The tape is mounted on a robust 54 lb. densified kraft paper release liner that is green and white plaid for easy identification. This liner adds dimensional stability during processes such as die-cutting and automated dispensing, allows for easy deployment, helps reduce edge roll, and protects the tape from humidity extremes. The solvent-free manufacturing process helps meet environmental best practices and sustainability goals.
3M™ Double Coated Paper Tape 401M serves multiple industrial applications including mounting rubber or photopolymer printing plates to print cylinders, splicing and core starting operations, attaching golf club grips, and temporary holding during finishing processes. The tape's reliable performance across various substrates and industries makes it an essential solution for professionals requiring consistent, dependable adhesion in demanding applications.
Key Features
- Strong rubber adhesive provides instant bond on variety of substrates for reliable temporary attachments
- Double-coated thick construction offers dependable hold while stabilizing projects during fabrication
- Hand-tearable design with easy deployment reduces processing time and labor requirements
- Temperature resistant withstands long-term use up to 150°F and short-term use up to 180°F
- Solvent-free manufacturing process meets environmental best practices and sustainability standards
- Green and white plaid paper liner for easy identification and dimensional stability
- Ideal for splicing, core starting, printing plate mounting, and golf club grip attachment
- Multipurpose applications across construction, fabrication, arts and crafts industries
Technical Specifications
| Specification |
Value |
| Product Name | 3M Double Coated Paper Tape 401M |
| Part Number | 401M |
| UPC Code | 00051115320569 |
| Overall Width | 2 inches (50.8 mm) |
| Overall Length | 36 yards (32.91 meters) |
| Total Tape Thickness | 9 mils (0.228 mm) without liner |
| Back Side Adhesive Thickness | 3 mils (0.08 mm) |
| Face Side Adhesive Thickness | 3 mils (0.08 mm) |
| Backing Material | Paper |
| Carrier Material | Paper |
| Adhesive Type | Natural Rubber (3M Adhesive 860) |
| Product Color | Natural |
| Primary Liner Color | White/Green Plaid |
| Primary Liner Thickness | 3 mils (0.08 mm) |
| Liner Material Density | 54 lb. densified kraft paper |
| Maximum Operating Temperature | 180°F (82°C) short-term, 150°F (66°C) long-term |
| Minimum Operating Temperature | -40°F (-40°C) |
| Product Form | Roll |
| Units per Case | 24 rolls |
| Master Size Length | 108 linear yards (98.8 meters) |
| Master Size Width | 22 inches (56 cm) |
| Smallest Saleable Unit | Roll |
| Brand | 3M |
| Industries | General Industrial |
| Manufacturing Process | Solvent-free |
| Warranty | 3M standard product warranty - For industrial/occupational use only |
Order 3M Double Coated Paper Tape 401M Natural 2 inch 36 yard at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
