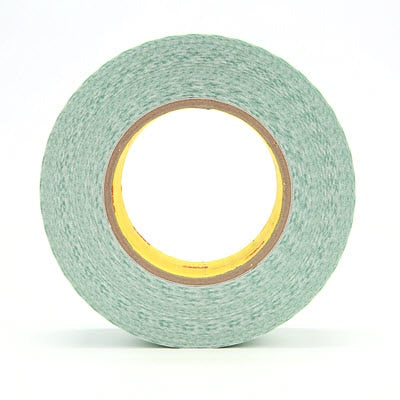

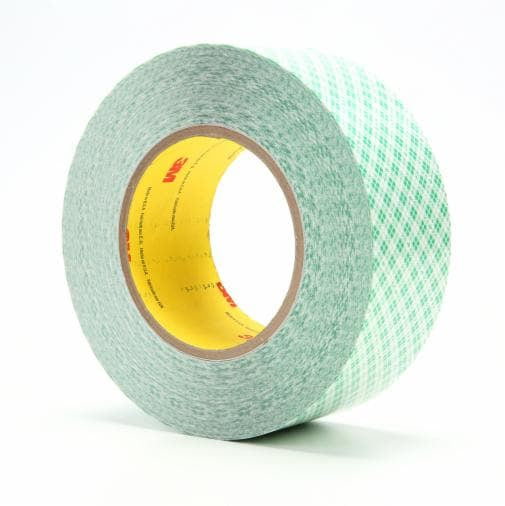

Professional 9 mil double coated film tape with HDPE carrier and synthetic rubber adhesive. Excellent quick stick and high adhesion for industrial mounting, joining, splicing, and carpet installation. Hand-tearable with clean removal. 2 inch width, 36 yard length per roll, 24 rolls per case.
3M™ Double Coated Film Tape 9589 is a professional-grade 9.0 mil double coated tape engineered for demanding industrial applications. Featuring a high-density polyethylene (HDPE) carrier with synthetic rubber adhesive on both sides, this tape delivers excellent quick stick and high adhesion to a wide variety of substrates. The tape is mounted on a specially treated 3.7 mil 62 lb. densified kraft paper liner that improves strength and removability characteristics, making it ideal for applications requiring reliable bonding performance.
This versatile double coated tape combines high initial tack with excellent holding power, ensuring reliable bonds across both high surface energy and low surface energy materials. The HDPE carrier provides superior dimensional stability and tears by hand for quick and easy application, while the synthetic rubber adhesive (3M™ Adhesive 760) enables a build-up over 24 hours that allows for proper placement of bonded materials before final setting. The adhesive removes cleanly from many surfaces, ensuring relatively easy cleanup and making it suitable for temporary or repositionable applications.
The tape is specifically designed for indoor and room temperature applications and can withstand short-term temperatures of up to 200°F. With its combination of quick stick, high adhesion, easy hand-tear capability, and clean removal properties, 3M™ Double Coated Film Tape 9589 is an excellent choice for carpet installation, general industrial mounting, joining, splicing, die-cutting, and laminating applications. Each case contains 24 rolls, making it ideal for high-volume industrial operations and converter solutions.
Key Features
- High density polyethylene (HDPE) carrier provides dimensional stability and hand-tear capability
- Synthetic rubber adhesive (3M™ Adhesive 760) delivers excellent quick stick and high initial tack
- Double coated design with adhesive on both sides for versatile bonding applications
- Adhesive removes cleanly from many surfaces ensuring easy cleanup and repositionable bonding
- Suitable for both high and low surface energy substrates with reliable bond strength
- Temperature resistant up to 200°F for short-term applications
- Specially treated 62 lb densified kraft paper liner improves strength and removability
- Ideal for carpet installation, industrial mounting, joining, splicing, die-cutting and laminating
Technical Specifications
| Specification |
Value |
| Product Number | 9589 |
| UPC Code | 00021200232077 |
| Overall Width (Imperial) | 2 inches |
| Overall Width (Metric) | 50.8 mm |
| Overall Length (Imperial) | 36 yards |
| Overall Length (Metric) | 32.91 meters |
| Total Tape Thickness without Liner (Imperial) | 9 mil |
| Total Tape Thickness without Liner (Metric) | 0.228 mm |
| Backing Carrier Material | High Density Polyethylene (HDPE) |
| Carrier Thickness (Imperial) | 0.178 mil |
| Carrier Thickness (Metric) | 0.076 mm |
| Face Side Adhesive Type | Synthetic Rubber Adhesive 760 |
| Back Side Adhesive Type | Synthetic Rubber Adhesive 760 |
| Face Side Adhesive Thickness (Imperial) | 3 mil |
| Back Side Adhesive Thickness (Imperial) | 3 mil |
| Primary Liner Material | 62# Densified Kraft Paper (DK) |
| Primary Liner Color | White/Green |
| Primary Liner Thickness (Imperial) | 3.7 mil |
| Primary Liner Thickness (Metric) | 0.09 mm |
| Core Size (Imperial) | 3 inches |
| Core Size (Metric) | 76.2 mm |
| Product Color | White |
| Product Form | Roll |
| Smallest Saleable Unit | Roll |
| Units per Case | 24 rolls |
| Maximum Operating Temperature (Fahrenheit) | 120°F |
| Maximum Operating Temperature (Celsius) | 49°C |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Minimum Operating Temperature (Celsius) | -40°C |
| Short-term Temperature Resistance | Up to 200°F |
| Indoor/Outdoor Use | Both |
| Industries | Construction, Converter Solutions, General Industrial |
| Brand | 3M™ |
| 3M ID | 7000048621 |
