Professional vest-style safety harness with automatic stand-up D-ring, integrated SRL adapter, and RFID connectivity for construction and industrial fall protection up to 420 lbs capacity.

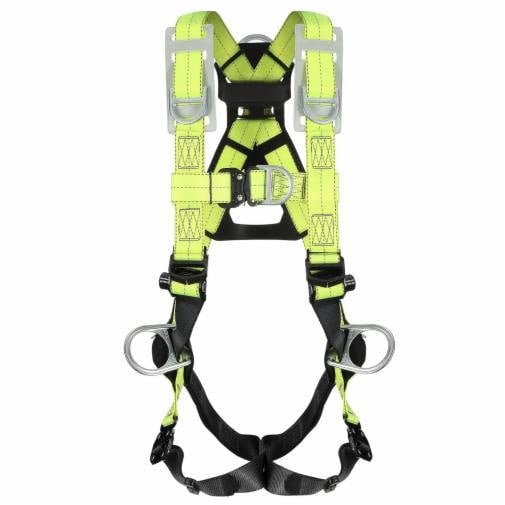

The 3M™ DBI-SALA® ExoFit™ X50 Vest Climbing/Positioning/Retrieval Safety Harness (Model 1600036) represents advanced fall protection technology designed for professional workers at height. This vest-style harness combines reliable safety with user-friendly design, making it ideal for construction, general industrial, and manufacturing environments. The harness features an automatic stand-up D-ring that enables efficient dorsal connections, high-visibility yellow-green webbing for enhanced safety awareness, and an integrated SRL adapter that reduces installation time by up to 55% compared to traditional web-mounted installations.
Equipped with cutting-edge safety features, this harness includes a self-locking dorsal pad that minimizes D-ring sliding, revolving torso buckles for easy adjustment and comfortable fit, and low-profile suspension trauma strap design to reduce wear and prevent entanglement. The harness is designed with six connection points strategically placed at the back, front, hip, and shoulder positions, providing maximum versatility for different work scenarios. With a weight capacity of 420 lbs (190 kg), it accommodates a wide range of workers while maintaining optimal safety standards.
The 3M Connected Safety ID (RFID) integration simplifies inventory management, inspection tracking, and record keeping for safety compliance. Constructed with polyester webbing and featuring aluminum alloy and zinc-plated steel components, this harness meets ANSI Z359.11-2021, OSHA 1910.140, and OSHA 1926.502 standards. The X50 series represents 3M's commitment to making safety accessible to all workers, whether they are new to fall protection or occasional users requiring reliable equipment.
Key Features
- Automatic stand-up D-ring for efficient dorsal connections and quick positioning
- High-visibility yellow-green webbing for enhanced worker safety awareness
- Integrated SRL adapter reduces installation time by up to 55% compared to web-mounted systems
- Self-locking dorsal pad minimizes D-ring sliding for secure back positioning
- Six strategically placed connection points (back, front, hip, shoulder) for maximum versatility
- Revolving torso buckles for easy adjustment and comfortable secure fit
- Low-profile suspension trauma strap design reduces wear and prevents equipment entanglement
- Auto-resetting lanyard keepers for fast parking of snap hooks and carabiners
- 3M Connected Safety ID (RFID) for simplified inventory and inspection management
- 420 lbs weight capacity accommodates diverse worker requirements
Technical Specifications
| Specification |
Value |
| Model Number | 1600036 |
| 3M Product ID | 7100413744 |
| UPC Code | 00648250263938 |
| Harness Type | Vest-Style Positioning/Climbing/Retrieval Harness |
| Harness Size | Medium/Large |
| Harness Application | Retrieval, Climbing, Positioning |
| Product Color | Yellow Green |
| Webbing Material | Polyester |
| D-ring Material | Zinc Plated Steel |
| Chest Buckle Material | Aluminum Alloy/Zinc Plated Steel |
| Leg Buckle Material | Aluminum Alloy/Zinc Plated Steel |
| Torso Buckle Material | Aluminum Alloy/Zinc Plated Steel |
| Torso Buckle Type | Revolving |
| Chest Connection Type | Quick Connect |
| Leg Connection Type | Quick Connect |
| D-ring Placement | Back, Front, Hip, Shoulder |
| Number of Connection Points | 6 |
| Weight Capacity (Imperial) | 420 lb |
| Weight Capacity (Metric) | 190 kg |
| Body Belt | No |
| Belly Pad | No |
| Hip Pad | No |
| Board/Seat Cushion | No |
| Padding Location Type | None |
| Seat Sling Type | None |
| Weight Distribution System | No |
| Connected Safety ID Equipped | Yes (RFID) |
| Product Series | X50 |
| Brand | DBI-SALA® |
| Specifications Met | ANSI Z359.11-2021, OSHA 1910.140, OSHA 1926.502 |
| Recommended Industry | Construction, General Industrial, General Manufacturing |
| Usage Type | Industrial/Occupational Use Only |
Order 3M DBI-SALA ExoFit X50 Vest Safety Harness Medium/Large at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
