Professional full-body safety harness with anti-sliding D-ring pad, integrated SRL adapter, and suspension trauma relief straps for construction and positioning work. Meets ANSI and OSHA standards.

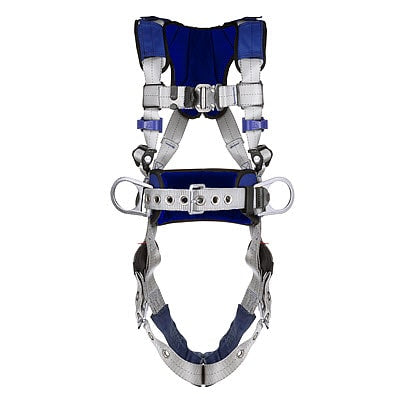

The 3M™ DBI-SALA® ExoFit™ X100 Comfort Iron Work Construction Positioning Safety Harness is engineered with premium components to deliver exceptional safety and comfort for workers at height. This full-body harness features 6,000lb polyester webbing combined with nylon/polyester hybrid comfort padding and robust alloy steel hardware to ensure durability and reliability on job sites. The harness is specifically designed for construction and positioning applications, making it ideal for remediation work, welding, and other demanding industrial environments.
Equipped with an anti-sliding dorsal D-ring pad that significantly reduces dorsal D-ring slide, this harness enhances worker safety during critical operations. The integrated SRL adapter enables quick and easy connection and disconnection of personal self-retracting lifelines, streamlining workflow and reducing setup time. Suspension trauma relief straps with low-profile design are included as standard, providing additional protection for workers during emergency situations. The harness features quick connect chest connections, tongue buckle leg connections, and revolving torso buckles for optimal fit and adjustability.
Designed to meet stringent safety standards including ANSI Z359.11, OSHA 1910.140, and OSHA 1926.502, this X100 model represents the next generation of 3M DBI-SALA fall protection equipment. The small size configuration includes back and hip D-ring placements with a 420 lb weight capacity, making it suitable for a wide range of workers. With nylon/polyester hybrid comfort padding at the back and hip areas, this harness reduces shoulder strain and fatigue during extended use, allowing workers to maintain focus on their critical tasks.
Key Features
- Anti-sliding dorsal D-ring pad reduces D-ring migration during work
- Integrated SRL adapter for quick connection and disconnection of personal self-retracting lifelines
- Suspension trauma relief straps with low-profile design included standard
- 6,000lb polyester webbing with nylon/polyester hybrid comfort padding
- Quick connect chest connections for easy adjustability and rapid deployment
- Revolving torso buckles and tongue buckle leg connections for secure fit
- Back and hip D-ring placements for versatile positioning options
- Meets ANSI Z359.11, OSHA 1910.140, and OSHA 1926.502 standards
- 420 lb weight capacity suitable for diverse worker applications
- Connected Safety ID equipped for enhanced tracking and compliance
Technical Specifications
| Specification |
Value |
| Product Type | Comfort Iron Work Safety Harness |
| Product Series | ExoFit X100 |
| Brand | 3M DBI-SALA |
| Model Number | 1401174 |
| 3M Product Number | 1401174 |
| 3M ID | 7012817660 |
| UPC | 00648250239568 |
| Harness Size | Small |
| Harness Application | Construction, Positioning |
| Recommended Application | Remediation, Welding |
| Recommended Industry | Construction |
| Weight Capacity (Imperial) | 420 lb |
| Weight Capacity (Metric) | 190 kg |
| Webbing Material | Polyester, 6,000lb capacity |
| Padding Material | Nylon/Polyester Hybrid |
| Padding Location | Back, Hip |
| Body Belt | Yes |
| Body Belt Material | Polyester |
| Hip Pad | Yes |
| Belly Pad | No |
| D-ring Material | Zinc Plated Steel |
| D-ring Placement | Back, Hip |
| Chest Connection Type | Quick Connect |
| Chest Buckle Material | Steel, zinc-plated black electro-deposition paint |
| Leg Connection Type | Tongue Buckle |
| Leg Buckle Material | Zinc Plated Steel |
| Torso Buckle Type | Revolving |
| Torso Buckle Material | Aluminum Alloy/Zinc Plated Steel |
| Number of Connection Points | 3 |
| Subpelvic Strap | Yes |
| Connected Safety ID Equipped | Yes |
| SRL Adapter | Integrated |
| Suspension Trauma Relief Straps | Yes, Low-profile design |
| Anti-sliding D-ring Pad | Yes |
| Specifications Met | ANSI Z359.11, OSHA 1910.140, OSHA 1926.502 |
| Hardware Material | Robust Alloy Steel |
| Use Classification | Industrial/Occupational Use Only |
