Premium full-body safety harness with anti-slide D-ring, integrated SRL adapter, and suspension trauma relief straps for climbing and suspension work at height.

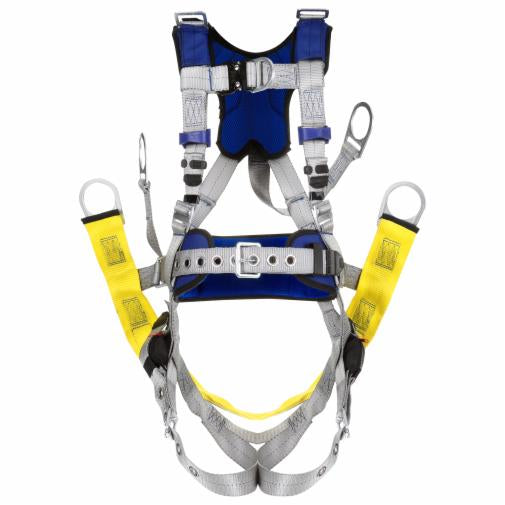

The 3M™ DBI-SALA® ExoFit™ X100 Comfort Oil & Gas Climbing/Suspension Safety Harness is engineered with high-quality components designed to enhance safety and comfort while working at height. Built with 6,000lb polyester webbing, nylon/polyester hybrid comfort padding, and robust alloy steel hardware, this harness delivers superior performance in demanding industrial environments. The anti-slide back D-ring plate design helps reduce dorsal D-ring slide and enables convenient adapter locations to connect personal SRLs, making it ideal for climbing, rigging, and suspension applications.
This full-body harness features an integrated SRL adapter for quick and easy connection and disconnection of personal SRLs, along with suspension trauma relief straps with low-profile design. The harness includes a body belt, quick connect chest connection, and dual D-ring placement (back and front) for maximum versatility. With board/seat cushion, hip pad, and back padding, the X100 provides exceptional comfort during extended work periods. The harness is equipped with Connected Safety ID technology and meets ANSI Z359.11, OSHA 1910.140, and OSHA 1926.502 specifications.
The 3M™ DBI-SALA® ExoFit™ range represents the next generation of full-body harnesses, designed to achieve optimal fit, function, and efficiency while fulfilling safety and performance requirements. With exclusive weight distribution systems available in select configurations to help reduce shoulder strain and fatigue, this harness is engineered for professionals who demand the highest standards of safety and comfort in uncomfortable places.
Key Features
- Anti-sliding dorsal D-ring pad reduces D-ring slide for enhanced safety
- Integrated SRL adapter for quick connect and disconnect of personal SRLs
- Suspension trauma relief straps with low-profile design included
- 6,000lb polyester webbing with nylon/polyester hybrid comfort padding
- Dual D-ring placement (back and front) with quick connect chest connection
- Board/seat cushion with zinc-plated steel hardware for durability
- Hip pad and back padding for superior comfort during extended wear
- Connected Safety ID equipped for worker identification and tracking
- Weight capacity of 420 lbs with body belt for added security
- Meets ANSI Z359.11, OSHA 1910.140, and OSHA 1926.502 standards
Technical Specifications
| Specification |
Value |
| Product Number | 1401197 |
| 3M ID | 7012817681 |
| UPC | 00648250239940 |
| Product Series | X100 |
| Harness Size | Large |
| Harness Application | Climbing, Rigging, Suspension |
| Product Type | Comfort Oil & Gas Climbing/Suspension Safety Harness |
| Webbing Material | Polyester (6,000 lb capacity) |
| Padding Material | Nylon/Polyester Hybrid |
| Hardware Material | Alloy Steel, Zinc Plated |
| Weight Capacity (Imperial) | 420 lb |
| Weight Capacity (Metric) | 190 kg |
| Body Belt | Yes |
| Chest Connection Type | Quick Connect |
| D-ring Placement | Back, Front |
| Number of Connection Points | 2 |
| Leg Connection Type | Tongue Buckle |
| Board/Seat Cushion | Yes |
| Board/Seat Material | Polyester Webbing |
| Board/Seat Hardware Material | Zinc Plated Steel |
| Hip Pad | Yes |
| Belly Pad | No |
| Padding Location Type | Back, Hip |
| Subpelvic Strap | Yes |
| Seat Sling Type | Soft |
| Torso Buckle Type | Parachute |
| Torso Buckle Material | Zinc Plated Steel |
| Chest Buckle Material | Steel, zinc-plated black electro-deposition paint |
| Leg Buckle Material | Zinc Plated Steel |
| D-ring Material | Zinc Plated Steel |
| Body Belt Material | Polyester |
| Connected Safety ID Equipped | Yes |
| Integrated SRL Adapter | Yes |
| Suspension Trauma Relief Straps | Yes, Low-profile design |
| Anti-sliding Dorsal D-ring Pad | Yes |
| Recommended Industry | Oil & Gas |
| Recommended Application | Machine Operation |
| Specifications Met | ANSI Z359.11, OSHA 1910.140, OSHA 1926.502 |
| Brand | DBI-SALA® |
| Intended Use | Industrial/Occupational Use Only |
