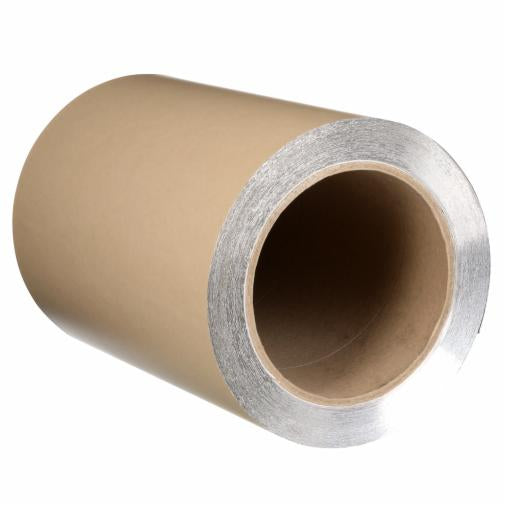

Premium aluminum foil damping tape with viscoelastic adhesive for vibration and noise control in industrial applications, 10 in x 36 yd roll.
3M™ Damping Foil 2552 is a premium aluminum foil-backed anti-vibration tape engineered to reduce structure-borne noise and fatigue in metal and composite panels and support structures. This innovative damping solution features a dead soft aluminum foil constraining layer combined with a pressure-sensitive, viscoelastic acrylic polymer adhesive that effectively converts vibrational energy into negligible heat for rapid dissipation. The tape is designed for industrial and occupational applications where vibration control is critical.
With a 10-inch width and 36-yard length on a single roll, this damping foil delivers exceptional performance across a broad temperature spectrum ranging from -25°F to 175°F, with peak damping efficiency between 32°F and 140°F. The unique construction allows for effective damping with as little as 20% surface coverage, making it highly efficient for cost-conscious applications. The viscoelastic acrylic polymer adhesive ensures excellent adhesion to metal substrates while remaining easy to apply.
This durable tape is engineered to withstand exposure to weathering, moisture, and UV degradation, ensuring long-term performance in demanding environments. The product meets stringent aerospace and industrial standards, including F.A.R. 25.853(a) compliance and ASTM E-162 and ASTM-E 662 flammability and smoke generation requirements. The linered construction enables precision die-cutting applications, making it ideal for custom-sized installations in aerospace, automotive, appliance, and general industrial applications.
Key Features
- Dead soft aluminum foil backing for superior vibration damping and noise reduction
- Viscoelastic acrylic polymer adhesive converts vibrational energy to heat for rapid dissipation
- Effective damping with minimal 20% surface coverage for cost-efficient applications
- Wide operating temperature range from -25°F to 175°F with peak performance 32°F to 140°F
- Meets aerospace and industrial standards including F.A.R. 25.853(a), ASTM E-162, and ASTM-E 662
- Resistant to weathering, moisture, and UV degradation for long-term durability
- Linered construction enables precision die-cutting for custom applications
- Excellent adhesion to metal substrates with easy application
- Single-sided adhesive design for flexible installation options
- Ideal for aerospace, automotive, appliance, and general industrial vibration control
Technical Specifications
| Specification |
Value |
| Product Type | Damping Foil Tape |
| Backing Material | Dead Soft Aluminum Foil |
| Backing Thickness (Imperial) | 10 mil |
| Backing Thickness (Metric) | 0.25 mm |
| Overall Width (Imperial) | 10 inches |
| Overall Width (Metric) | 254 mm |
| Overall Length (Imperial) | 36 yards |
| Overall Length (Metric) | 32.91 meters |
| Total Thickness without Liner (Imperial) | 15 mil |
| Total Thickness without Liner (Metric) | 0.38 mm |
| Adhesive Thickness (Imperial) | 5 mil |
| Adhesive Type | Pressure Sensitive Viscoelastic Acrylic Polymer |
| Number of Adhesive Sides | Single-sided |
| Primary Liner | Polycoated Paper |
| Minimum Operating Temperature (Fahrenheit) | -25°F |
| Minimum Operating Temperature (Celsius) | -32°C |
| Maximum Operating Temperature (Fahrenheit) | 175°F |
| Maximum Operating Temperature (Celsius) | 80°C |
| Peak Damping Temperature Range (Fahrenheit) | 32°F to 140°F |
| Peak Damping Temperature Range (Celsius) | 0°C to 60°C |
| Elongation at Break | 12% |
| Tensile Strength (Imperial) | 2016 oz/in |
| Tensile Strength (Metric) | 220.7 N/100mm |
| Flame Retardant | Yes |
| Standards Met | F.A.R. 25.853(a), ASTM E-162, ASTM-E 662 |
| Substrate Compatibility | Metal |
| Application | Vibration Damping |
| Smallest Saleable Unit | Roll |
| Part Number | 2552 |
| 3M Product Number | 2552 |
| 3M ID | 7010535677 |
| Weather Resistance | Resistant to weathering, moisture, and UV |
| Surface Coverage Efficiency | Effective damping with as little as 20% coverage |
| Die-Cutting Capability | Linered for die-cutting applications |
Order 3M Damping Foil 2552 Silver Vibration Control Tape at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
