Shop 3M Cushion-Mount Plus Plate Mounting Tape L1720 Teal 27in In Iraq Best Prices
Professional 0.020 inch double-coated teal foam tape for flexographic plate mounting with air release technology, designed for clean removal from ink-contaminated plates and superior printing performance.

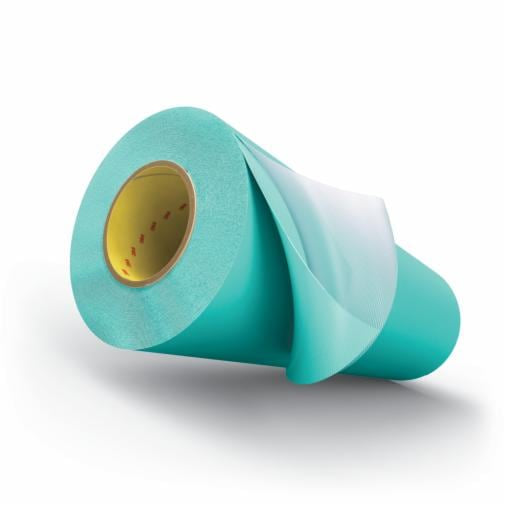

The 3M™ Cushion-Mount™ Plus Plate Mounting Tape L1720 is a professional-grade flexographic plate mounting solution designed specifically for the printing industry. This 0.020 inch (0.51 mm) double-coated medium firm density teal foam tape features engineered differential acrylate adhesives that securely bond flexographic photopolymer plates to print sleeves or steel cylinders while preventing plate edge lifting during high-speed printing operations. The innovative air release technology with plate-side adhesive design allows for easy removal with reduced force, even when ink contaminates are present on the printing plates.
This specialized flexographic mounting tape is engineered to provide excellent resistance to lifting on press and maintains exceptional tolerance to ink contaminants, enabling clean and easy plate removal without adhesive residue. The unique L-Series crosshatched liner imprints microchannels into the adhesive that facilitate air flow throughout the adhesive layer, eliminating air bubbles between the tape and plate, and between the tape and cylinder or sleeve. This results in virtually bubble-free mounting, faster setup times, smoother surfaces, cleaner print quality, and higher productivity levels.
The 3M Cushion-Mount Plus L1720 is ideal for printing combinations of solids and process with halftone dots, and is recommended for use with wide-web presses in the flexible packaging industry. Available in a convenient 1 roll per case format with dimensions of 27 inches wide by 36 yards long, this industrial-grade tape has been proven reliable in paper mills and printing plants for decades, helping improve work quality and operational efficiency.
Key Features
- 0.020 inch double-coated medium firm density teal foam tape with differential acrylate adhesive
- Air release feature with plate-side adhesive technology for easy removal with reduced force
- Crosshatched L-Series liner creates microchannels for virtually bubble-free mounting
- Excellent resistance to lifting on press and tolerance to ink contaminants
- Securely bonds flexographic photopolymer plates to print sleeves or steel cylinders
- Ideal for printing combinations of solids, process colors, and halftone dots
- Clean plate removal without adhesive residue for reduced worker fatigue
- Engineered for tight caliper tolerance and consistent print registration
- Recommended for wide-web presses in flexible packaging industry
- 24-month shelf life for extended storage and reliability
Technical Specifications
| Specification |
Value |
| Product Number | L1720 |
| 3M ID | 7100319450 |
| UPC | 00068060006585 |
| Overall Width (Imperial) | 27 in |
| Overall Width (Metric) | 68.58 cm |
| Overall Length (Imperial) | 36 yd |
| Overall Length (Metric) | 32.981 m |
| Application Thickness (Imperial) | 20 mil |
| Application Thickness (Metric) | 0.508 mm |
| Overall Thickness (Imperial) | 20 mil |
| Overall Thickness (Metric) | 0.508 mm |
| Product Color | Teal |
| Adhesive Type | Differential Acrylate |
| Backing Material | Polyethylene Foam |
| Primary Liner | Polycoated Polyester |
| Primary Liner Thickness (Imperial) | 4.5 mil |
| Primary Liner Thickness (Metric) | 0.11 mm |
| Application | Flexographic Plate Mounting |
| Print Quality | Combination Printing - Medium Firm |
| Print Quality Series | 17 Series |
| Brand | Cushion-Mount™ |
| Clean Removal | Yes |
| Industries | Paper, Print |
| Shelf Life | 24 Months |
| Packaging | 1 Roll/Case |
Order 3M Cushion-Mount Plus Plate Mounting Tape L1720 Teal 27in at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
