Description

Shop 3M Cushion-Mount Plus Plate Mounting Tape L1520 Purple In Iraq Best Prices

Professional-grade purple foam plate mounting tape with air release technology for bubble-free flexographic printing. Easy mount and removal with superior ink contamination tolerance.

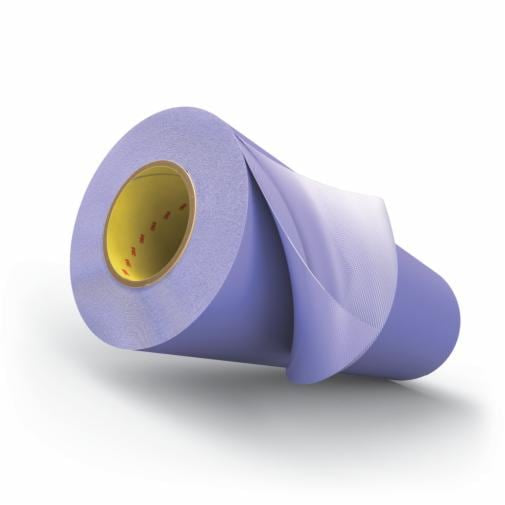

3M™ Cushion-Mount™ Plus Plate Mounting Tape L1520 is a professional-grade purple foam tape specifically engineered for mounting flexographic print plates to cylinders and sleeves. This double-coated foam tape features a 0.020 inch (0.51 mm) thickness with differential acrylate adhesive technology that enables easy removal with minimal force, even in the presence of ink contaminants on flexographic print plates. The medium density foam is ideal for printing combinations of solids and process work with halftone dots, providing consistent print quality across diverse printing applications. The innovative air release feature incorporates a unique crosshatched pattern on the release liner that imprints micro-channels into the easy-mount adhesive. This design allows entrapped air to escape naturally during mounting, virtually eliminating air bubbles between the tape and plate, as well as between the tape and sleeve or cylinder. The result is faster setup times, smoother surfaces for cleaner print quality, and improved productivity. The purple foam color specifically indicates the medium density foam, making it easy to identify among the Cushion-Mount Plus product line. This industrial-grade tape is manufactured with engineered acrylic adhesives on both sides—the plate-side adhesive is optimized for mounting photopolymer plates with easy removal, while the sleeve/cylinder-side adhesive provides secure mounting and clean demounting. With a shelf life of 24 months and designed for high-speed, long-run printing applications, the L1520 tape provides excellent resistance to plate edge lifting during printing and maintains tight contact even under demanding press conditions. Each roll measures 18 inches wide by 36 yards long and comes as 1 roll per case.

Key Features

Double-coated foam tape with 0.020 inch (0.51 mm) thickness for optimal cushioning
Air release feature with crosshatched pattern for virtually bubble-free mounting
Medium density foam ideal for combination printing with solids and halftone dots
Differential acrylate adhesive technology enables easy removal with minimal force
Excellent resistance to ink contaminants and plate edge lifting during high-speed printing
Secure mounting to flexographic cylinders and sleeves with clean demounting
Purple foam color indicates medium density for easy product identification
Engineered acrylic adhesives optimized for both plate and sleeve/cylinder applications
24-month shelf life for extended storage and inventory management
Tight caliper tolerance for consistent print registration across multiple manufacturing lots

Technical Specifications

Specification	Value
Product Number	L1520
3M ID	7100319366
UPC Code	00068060006417
Overall Width (Imperial)	18 inches
Overall Width (Metric)	457 mm
Overall Length (Imperial)	36 yards
Overall Length (Metric)	32.981 meters
Application Thickness (Imperial)	20 mil
Application Thickness (Metric)	0.5 mm
Overall Thickness (Imperial)	20 mil
Overall Thickness (Metric)	0.508 mm
Product Color	Purple
Adhesive Type	Differential Acrylate
Backing Material	Polyethylene Foam
Primary Liner	Polycoated Polyester
Primary Liner Thickness (Imperial)	4.5 mil
Primary Liner Thickness (Metric)	0.11 mm
Application	Flexographic Plate Mounting
Print Quality	Combination Printing - Medium
Print Quality Series	15 Series
Brand	Cushion-Mount™
Industries	Paper, Print
Shelf Life	24 Months
Packaging	1 Roll per Case
Use Type	Industrial/Occupational Use Only

Order 3M Cushion-Mount Plus Plate Mounting Tape L1520 Purple at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
