Premium 3M Cushion-Mount Plus double-coated yellow foam tape for flexographic plate mounting with air release technology, easy removal, and bubble-free application. 27 in x 36 yd, 20 mil thickness.

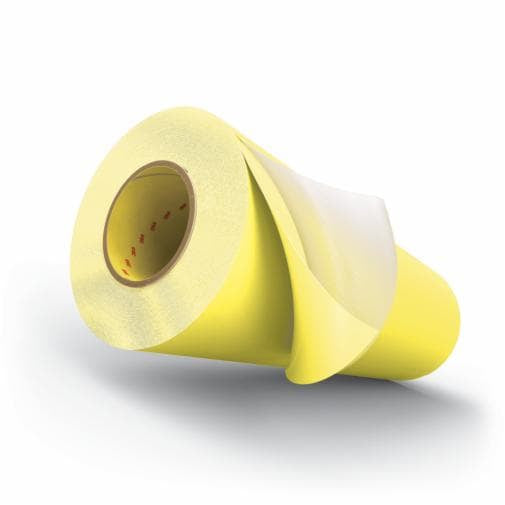

The 3M™ Cushion-Mount™ Plus Plate Mounting Tape L1320 is a premium double-coated medium soft density yellow foam tape specifically engineered for flexographic printing applications. This 0.020 inch (0.51 mm) thick tape features differential acrylate adhesive technology designed to securely bond flexographic photopolymer plates to print sleeves or steel cylinders while preventing plate edge lifting during high-speed printing operations. The tape is ideal for printing combinations of solids and process with halftone dots, offering exceptional performance in demanding industrial printing environments.
Designed with innovative air release technology and specialized plate-side adhesive, this flexographic plate mounting tape allows air to escape from between the tape and cylinder/sleeve and between tape and plate, resulting in virtually bubble-free mounting. The unique L-Series crosshatched liner imprints microchannels into the adhesive that facilitate air flow, enabling faster setup times and smoother surfaces for cleaner print quality. The yellow foam color indicates the medium soft density backing material, which provides the optimal balance of compressibility and durability for long and high-speed print runs.
The tape features specially formulated engineered acrylic adhesives that limit edge lift for secure runs even on small repeats. The plate-side adhesive is specifically designed for easy and clean removal from ink-contaminated print plates without adhesive residue, reducing worker fatigue and preventing plate damage. With a shelf life of 24 months and polyethylene foam backing with polycoated polyester liner, this tape provides reliable performance across paper, print, and flexible packaging industries. Each roll measures 27 inches wide by 36 yards long and comes as 1 roll per case.
Key Features
- Double-coated medium soft density yellow foam tape for flexographic plate mounting
- Air release feature with crosshatched L-Series liner for bubble-free mounting
- Easy and clean removal from ink-contaminated print plates without adhesive residue
- Specially formulated differential acrylate adhesive limits edge lift on small repeats
- Securely bonds photopolymer plates to print sleeves or steel cylinders
- Ideal for printing combinations of solids and process with halftone dots
- Reduces worker fatigue and prevents plate damage during demounting
- Maintains tight caliper tolerance for consistent print registration
- Tolerant to ink contaminates with excellent resistance to lifting on press
- 24-month shelf life for extended storage capability
Technical Specifications
| Specification |
Value |
| Product Number | L1320 |
| 3M ID | 7100320589 |
| UPC | 00068060006745 |
| Overall Width (Imperial) | 27 inches |
| Overall Width (Metric) | 685.8 mm |
| Overall Length (Imperial) | 36 yards |
| Overall Length (Metric) | 32.918 meters |
| Application Thickness (Imperial) | 20 mil |
| Application Thickness (Metric) | 0.5 mm |
| Product Color | Yellow |
| Adhesive Type | Differential Acrylate |
| Backing Material | Polyethylene Foam |
| Primary Liner | Polycoated Polyester |
| Primary Liner Thickness (Imperial) | 4.5 mil |
| Primary Liner Thickness (Metric) | 0.11 mm |
| Print Quality | Combination Printing - Medium Soft |
| Print Quality Series | 13 Series |
| Application | Flexographic Plate Mounting |
| Brand | Cushion-Mount™ |
| Clean Removal | Yes |
| Industries | Paper, Print |
| Shelf Life | 24 Months |
| Packaging | 1 Roll per Case |
| Use Type | Industrial/Occupational Use Only |
| Compressibility | Medium Soft Density with Air Release Technology |
Order 3M Cushion-Mount Plus Plate Mounting Tape L1320 Yellow at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
