Professional 15 mil orange foam flexographic plate mounting tape with air release technology, 18 in x 36 yd, designed for bubble-free mounting and easy plate removal from ink-contaminated surfaces.

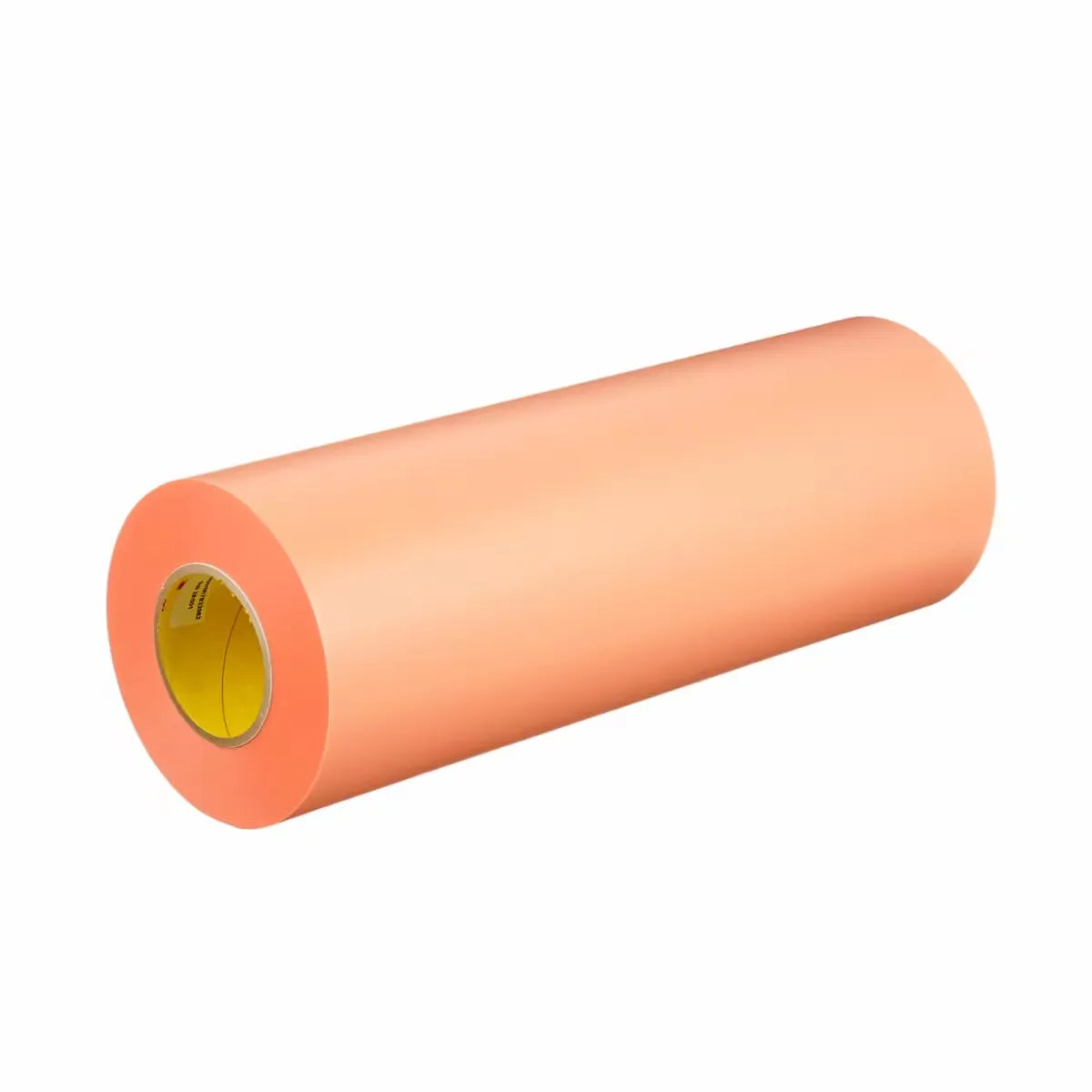

The 3M™ Cushion-Mount™ Plus Plate Mounting Tape L1215 is a professional-grade flexographic plate mounting solution designed for industrial printing applications. This 15 mil orange foam tape features advanced air release technology with a cross-hatch pattern that eliminates air bubbles during mounting, ensuring bubble-free application and superior print quality. The tape measures 18 inches wide by 36 yards long and is constructed with engineered differential acrylate adhesives specifically formulated for flexographic printing.
This specialized mounting tape is engineered with light density foam, ideal for combinations of solids and process printing with halftone dots. The dual-adhesive system features plate-side adhesive technology designed for easy removal from ink-contaminated flexographic print plates, while the sleeve/cylinder-side adhesive ensures secure bonding to printing cylinders or sleeves without adhesive residue. The orange foam color indicates light density composition, and the polycoated kraft paper liner with cross-hatch embossing creates micro-channels that allow entrapped air to escape during mounting.
Designed for high-speed, long-run printing operations, this cushion tape provides excellent resistance to plate lifting on press and demonstrates superior tolerance to ink contaminants. The compressible polyethylene foam backing withstands demanding production environments while maintaining tight caliper tolerance for consistent print registration across multiple manufacturing lots. With a 24-month shelf life and construction meeting industrial standards, this tape delivers reliable performance for professional flexographic printers seeking quality, efficiency, and reduced worker fatigue.
Key Features
- Air release feature with cross-hatch pattern eliminates air bubbles for bubble-free mounting
- Plate-side adhesive technology designed for easy removal from ink-contaminated flexographic print plates
- Light density orange foam ideal for combinations of solids and process printing with halftone dots
- Dual-adhesive system secures plates to cylinders while enabling clean demounting without residue
- Excellent resistance to plate lifting on press with superior tolerance to ink contaminants
- Cross-hatch release liner creates micro-channels for faster air escape and smoother mounting
- Tight caliper tolerance maintains consistent print registration across multiple manufacturing lots
- Compressible polyethylene foam withstands long and high-speed print runs
- Reduces worker fatigue with easy, clean plate removal and application
- 24-month shelf life with engineered differential acrylate adhesive formulation
Technical Specifications
| Specification |
Value |
| Product Number | L1215 |
| 3M ID | 7100319441 |
| UPC | 00068060006646 |
| Overall Width (Imperial) | 18 in |
| Overall Width (Metric) | 45.72 cm |
| Overall Length (Imperial) | 36 yd |
| Overall Length (Metric) | 32.981 m |
| Application Thickness (Imperial) | 15 mil |
| Application Thickness (Metric) | 0.381 mm |
| Overall Thickness (Imperial) | 15 mil |
| Overall Thickness (Metric) | 0.381 mm |
| Product Color | Orange |
| Adhesive Type | Differential Acrylate |
| Backing Material | Polyethylene Foam |
| Primary Liner | Polycoated Kraft Paper |
| Primary Liner Thickness (Imperial) | 4.5 mil |
| Primary Liner Thickness (Metric) | 0.114 mm |
| Air Release | Yes |
| Clean Removal | Yes |
| Application | Flexographic Plate Mounting |
| Print Quality | Combination Printing - Light |
| Print Quality Series | 12 Series |
| Brand | Cushion-Mount™ |
| Industries | Paper, Print |
| Urethane Sleeves Compatible | Yes |
| Shelf Life | 24 Month |
| Packaging | 1 Roll/Case |
| Recommended Use | Mounting photopolymer plates to flexographic printing cylinders and sleeves |
| Intended For | Industrial/Occupational Use Only |
