Shop 3M Cushion-Mount Plus Plate Mounting Tape H1540 Purple 40 mil In Iraq Best Prices
Professional-grade 40 mil purple foam plate mounting tape with air release technology for bubble-free flexographic printing applications. Features differential acrylate adhesives and medium density foam for superior print quality and clean demounting.

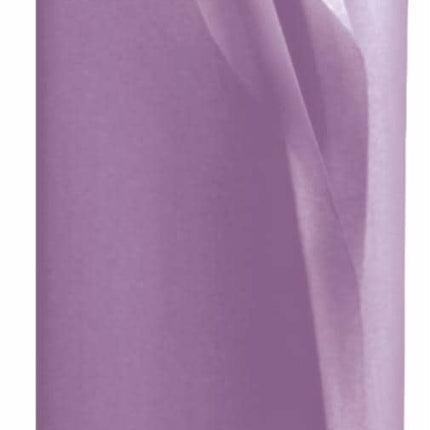

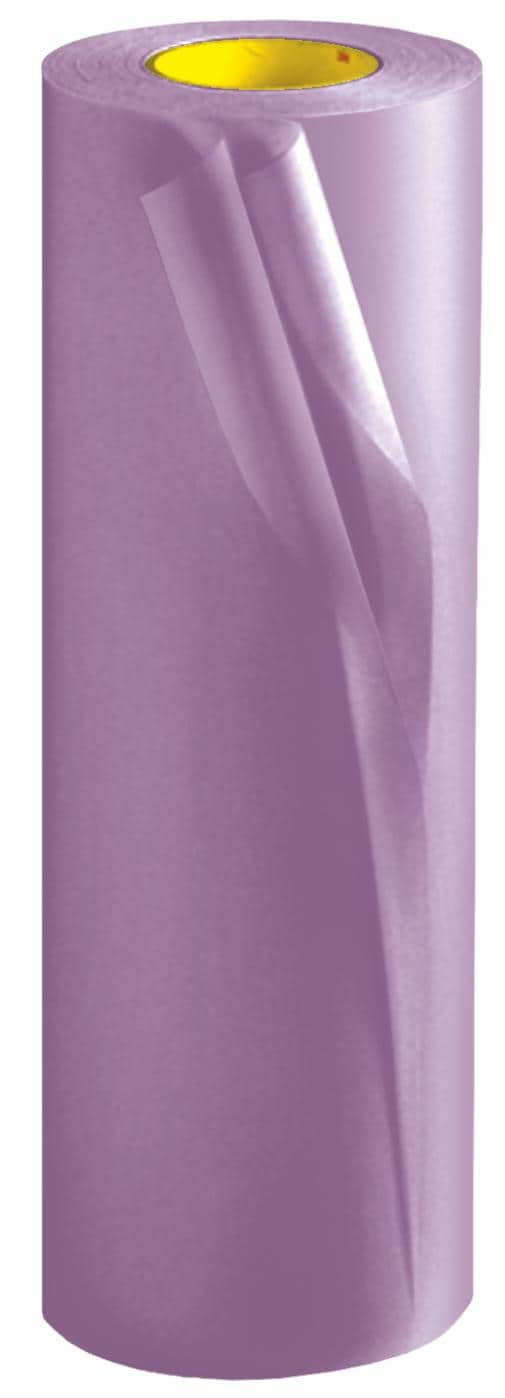

The 3M™ Cushion-Mount™ Plus Plate Mounting Tape H1540 is a professional-grade double-coated foam tape engineered specifically for flexographic printing applications. This purple foam mounting tape features a 0.040 inch (1.02 mm) thickness with medium density foam construction, making it ideal for printing combinations of solids, process colors, and halftone dots. The tape incorporates advanced air release technology with a crosshatched pattern on the release liner that creates micro-channels in the adhesive, allowing entrapped air to escape during mounting for virtually bubble-free application.
Designed for industrial use, this tape securely bonds flexographic photopolymer plates to print sleeves or steel cylinders while preventing plate edge lifting during high-speed printing operations. The H1540 features differential acrylate adhesives engineered specifically for this application, with the plate-side adhesive providing higher adhesion for challenging print conditions involving thick plates or small print sleeves. The polyethylene foam backing provides excellent compressibility to withstand long and high-speed print runs while maintaining tight caliper tolerance for consistent print registration across different manufacturing lots.
The tape delivers clean, residue-free demounting of plates from the cushioned foam backing, and removes cleanly from the sleeve or steel print cylinder without leaving adhesive residue. This professional mounting solution has been trusted by printing plants for decades to improve print quality, reduce setup time, and increase productivity. The purple foam color indicates medium density construction, making it the optimal choice for wide-web presses used in flexible packaging applications.
Key Features
- Double-coated foam tape with 0.040 inch (1.02 mm) thickness for optimal plate mounting
- Air release feature with crosshatched pattern for virtually bubble-free mounting and faster setup
- Medium density purple foam ideal for solids, process colors, and halftone dot combinations
- Differential acrylate adhesives engineered for high plate-side adhesion on challenging print conditions
- Clean residue-free demounting from plates and printing cylinders with long-term press run durability
- Tight caliper tolerance for consistent print registration across different manufacturing lots
- Polyethylene foam backing withstands high-speed printing operations and extended press runs
- Prevents plate edge lifting during printing for superior print quality and reduced waste
Technical Specifications
| Specification |
Value |
| Product Number | H1540 |
| 3M ID | 7100166772 |
| Thickness | 0.040 inch (1.02 mm) |
| Adhesive Type | Differential Acrylate |
| Backing Material | Polyethylene Foam |
| Product Color | Purple |
| Foam Density | Medium Density |
| Product Form | Roll |
| Brand | Cushion-Mount™ |
| Industry | Print |
| Application | Flexographic Plate Mounting |
| Coating Type | Double Coated |
| Release Liner Pattern | Crosshatched |
| Intended Use | Industrial/Occupational Use Only |
| Recommended Use | Mounting photopolymer plates to flexographic printing cylinders and sleeves |
Order 3M Cushion-Mount Plus Plate Mounting Tape H1540 Purple 40 mil at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
