Description

Shop 3M Cushion-Mount Plus Plate Mounting Tape E1820H Blue In Iraq Best Prices

Professional-grade blue foam plate mounting tape for flexographic printing with air release technology, firm density foam, and superior edge-lifting resistance for bubble-free mounting on print sleeves and cylinders.

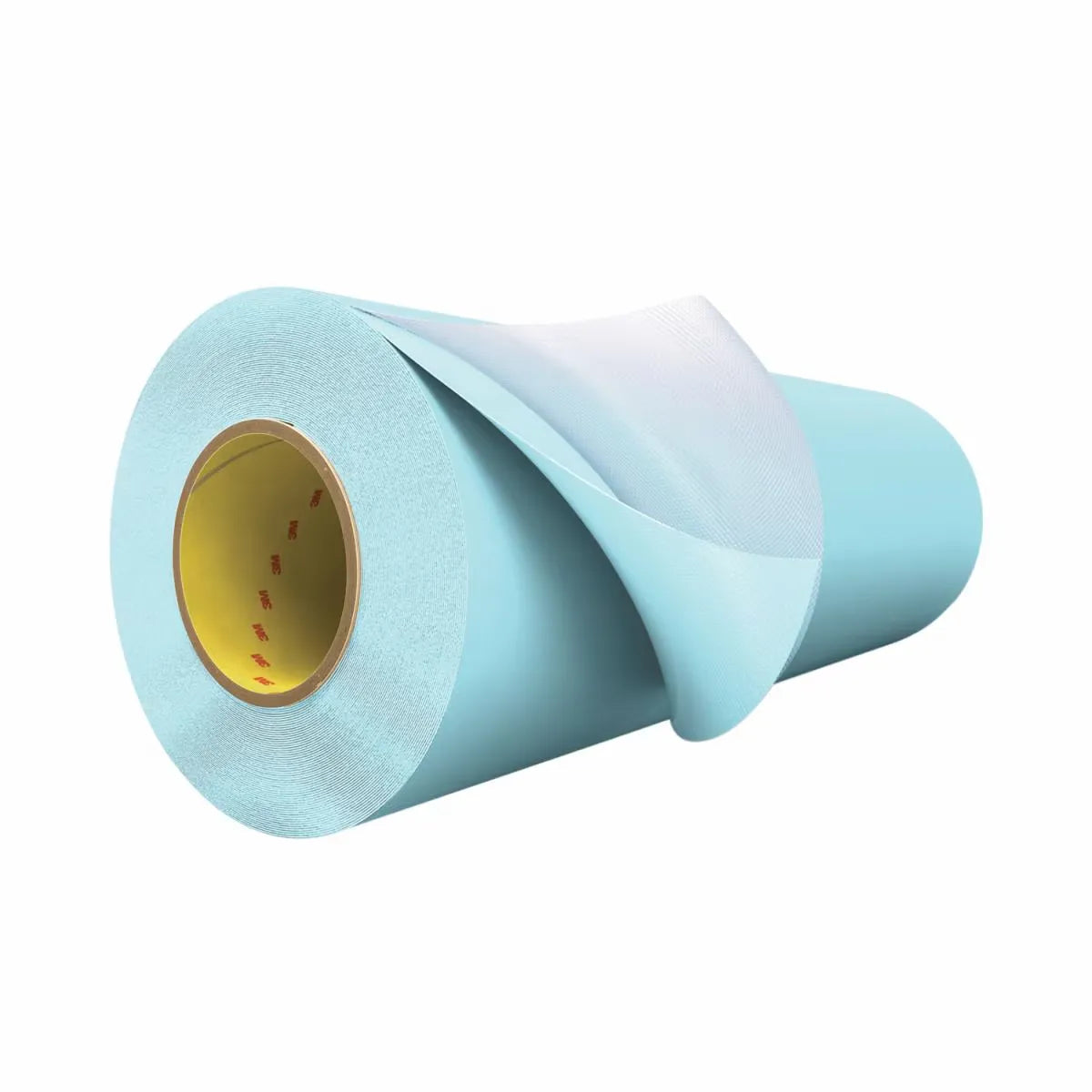

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1820H is a premium blue foam mounting tape specifically engineered for flexographic printing applications. This 0.020 inch (0.51 mm) double-coated foam tape features advanced air release technology with plate-side adhesive designed to resist edge lifting on flexographic print plates. The tape is constructed with a firm density polyethylene foam backing and differential acrylate adhesives, making it ideal for printing combinations of solids and process with halftone dots. The E1820H features a unique crosshatched EH-Series liner that imprints micro-channels into the adhesive, allowing entrapped air to escape during mounting for virtually bubble-free application. This innovative design ensures secure bonding of photopolymer plates to print sleeves or steel cylinders while maintaining excellent resistance to lifting during high-speed press runs. The tape provides higher plate-side adhesion for challenging print conditions using thick plates or small print sleeves, with cylinder diameters as small as 2 inches. Designed for industrial and occupational use, this flexographic plate mounting tape delivers clean plate removal without adhesive residue and removes cleanly from sleeves or steel print cylinders. The 18 inch width and 36 yard length per roll provide substantial coverage for professional printing operations. With a 24-month shelf life and 2-year warranty from date of manufacture, this product represents 3M's decades of expertise in printing plant solutions for improved quality and operational efficiency.

Key Features

Air release technology with crosshatched EH-Series liner for bubble-free mounting
Firm density polyethylene foam ideal for solids and halftone dot printing combinations
Double-coated differential acrylate adhesive with plate-side edge lifting resistance
Clean plate removal without adhesive residue and easy sleeve cylinder removal
Works with cylinder diameters as small as 2 inches for challenging print conditions
Tight caliper tolerance for consistent print registration across manufacturing lots
Withstands long and high-speed print runs with excellent compressibility
24-month shelf life with 2-year warranty from date of manufacture

Technical Specifications

Specification	Value
Product Number	E1820H
3M ID	7100314486
UPC Code	00068060005724
Overall Width (Imperial)	18 inches
Overall Width (Metric)	457.2 mm
Overall Length (Imperial)	36 yards
Overall Length (Metric)	32.918 meters
Application Thickness (Imperial)	0.020 inch
Application Thickness (Metric)	0.508 mm
Product Color	Blue
Backing Material	Polyethylene Foam
Adhesive Type	Differential Acrylate
Primary Liner Material	Polycoated Polyester
Primary Liner Thickness (Imperial)	4.5 mil
Primary Liner Thickness (Metric)	0.11 mm
Print Quality	Combination Printing - Firm
Print Quality Series	18 Series
Clean Removal	Yes
Shelf Life	24 Months
Warranty Period	2 Years from Date of Manufacture
Urethane Sleeves Compatible	Yes
Industry Application	Print
Brand	Cushion-Mount™
Quantity Per Case	1 Roll
Minimum Cylinder Diameter	2 inches

Order 3M Cushion-Mount Plus Plate Mounting Tape E1820H Blue at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
