Shop 3M Cushion-Mount Plus Plate Mounting Tape E1815H Blue 18x36 In Iraq Best Prices
Premium 0.015 inch double-coated foam mounting tape with air release feature for bubble-free flexographic plate mounting. Features firm density foam, differential acrylate adhesive, and clean removal properties for professional printing applications.

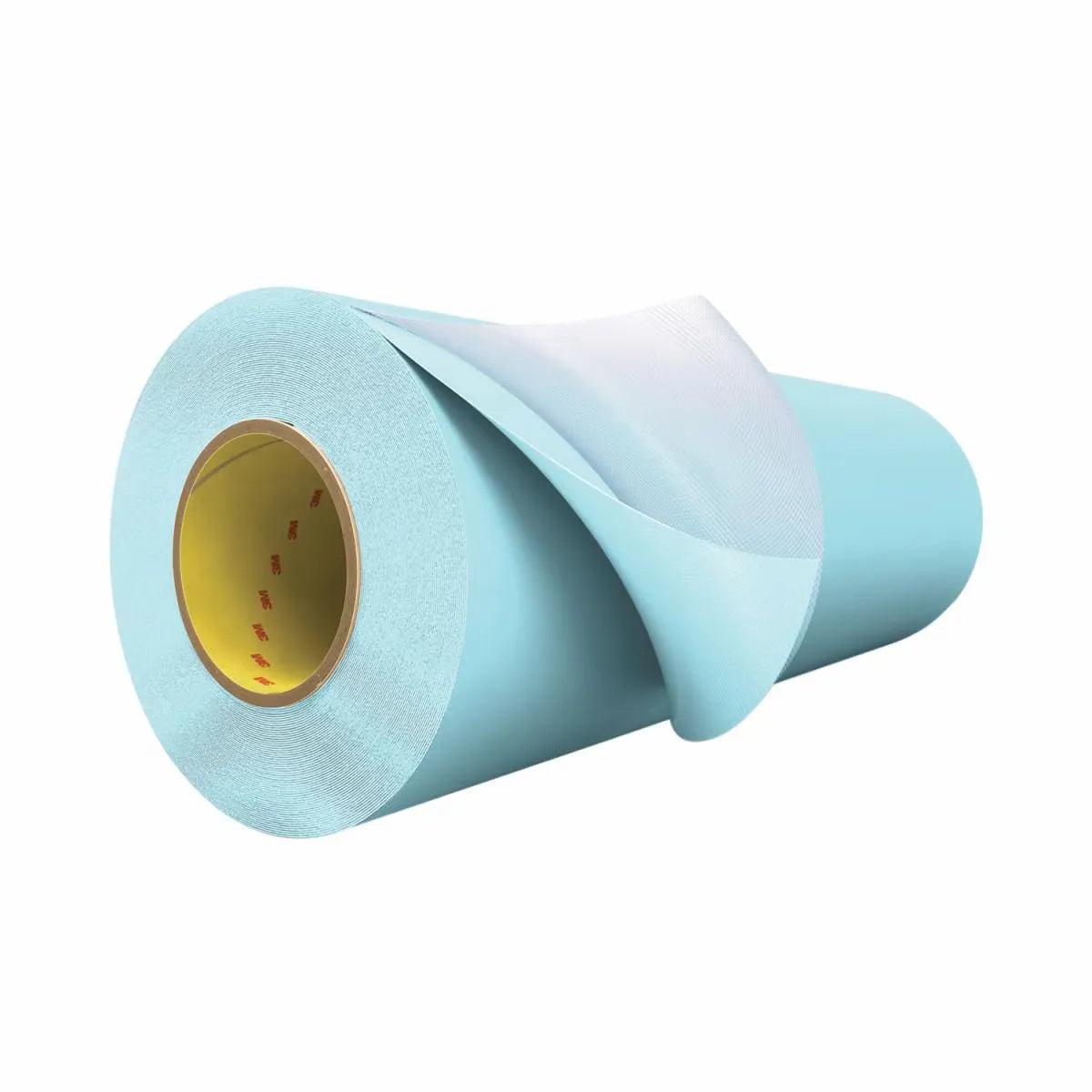

The 3M Cushion-Mount Plus Plate Mounting Tape E1815H is a premium double-coated foam tape specifically engineered for flexographic printing applications. This blue foam mounting tape features a 0.015 inch (0.38 mm) thickness with differential acrylate adhesive technology on both sides, designed to securely bond flexographic photopolymer plates to print sleeves or steel cylinders while preventing plate edge lifting during high-speed printing operations. The tape incorporates an advanced air release feature that eliminates air bubbles under the plate during mounting, ensuring bubble-free flexographic plate mounting for superior print quality.
This specialized mounting solution features a firm density foam that is ideal for printing combinations of solids and process with halftone dots, making it particularly suited for complex print jobs requiring precise registration and consistent quality. The E1815H tape measures 18 inches in width and comes in a 36-yard roll with one roll per case, providing ample material for production environments. The plate-side adhesive has been engineered for challenging print conditions involving thick plates or small print sleeves, offering higher plate-side adhesion compared to standard mounting tapes.
The tape demonstrates excellent clean removal properties, demounting from the double-coated cushioned tape without leaving adhesive residue on either the plate or the print cylinder. The grooved adhesive pattern, created by a cross-hatch design from the release liner, enhances the mounting performance and ensures clean removal when demounting. With a 24-month shelf life and 2-year warranty from date of manufacture, this industrial-grade tape is manufactured to maintain very tight caliper tolerance, allowing printers to use tape from different manufacturing lots while keeping tight print registration.
Key Features
- 0.015 inch (0.38 mm) double-coated foam tape with advanced air release feature for bubble-free mounting
- Differential acrylate adhesive system engineered for high plate-side adhesion and clean removal without residue
- Firm density foam ideal for printing combinations of solids, process colors, and halftone dots
- Designed to prevent plate edge lifting during high-speed flexographic printing operations on cylinders and sleeves
- Cross-hatch pattern adhesive grooves from release liner ensure secure mounting and easy demounting of plates
- Tight caliper tolerance allows use of tape from different manufacturing lots while maintaining precise print registration
- Blue foam color indicates firm density construction suitable for challenging print conditions with thick plates
- Compressible foam construction withstands long and high-speed print runs without degradation
Technical Specifications
| Specification |
Value |
| Product Number | E1815H |
| 3M ID | 7100314504 |
| UPC Code | 00068060005700 |
| Thickness (Imperial) | 15 mil |
| Thickness (Metric) | 0.381 mm |
| Width (Imperial) | 18 in |
| Width (Metric) | 457.2 mm |
| Length (Imperial) | 36 yd |
| Length (Metric) | 32.918 m |
| Product Color | Blue |
| Adhesive Type | Differential Acrylate |
| Backing Material | Polyethylene Foam |
| Primary Liner Material | Polycoated Polyester |
| Primary Liner Thickness (Imperial) | 4.5 mil |
| Primary Liner Thickness (Metric) | 0.11 mm |
| Print Quality | Combination Printing - Firm |
| Print Quality Series | 18 Series |
| Foam Density | Firm Density |
| Clean Removal | Yes |
| Air Release Feature | Yes |
| Shelf Life | 24 Months |
| Warranty Period | 2 Years from Date of Manufacture |
| Urethane Sleeves Compatible | Yes |
| Quantity per Case | 1 Roll |
| Industries | Print, Flexographic Printing |
| Brand | Cushion-Mount Plus |
| Application | Flexographic Plate Mounting |
Order 3M Cushion-Mount Plus Plate Mounting Tape E1815H Blue 18x36 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
