Shop 3M Cushion-Mount Plus Plate Mounting Tape E1320H Yellow 54in In Iraq Best Prices
Professional-grade 0.020 inch double-coated yellow foam tape for flexographic plate mounting with air release technology, bubble-free application, and clean removal. 54 inches wide by 36 yards long.

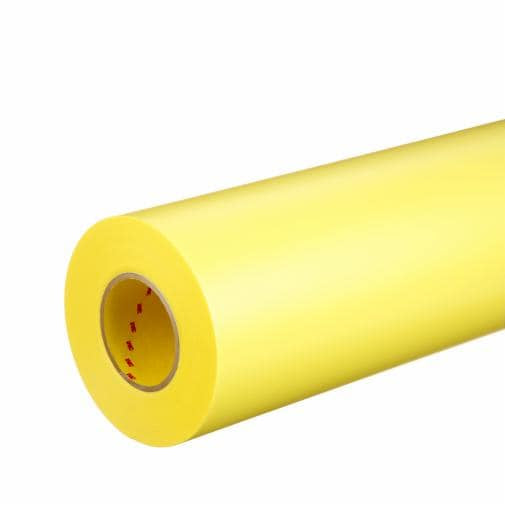

The 3M™ Cushion-Mount™ Plus Plate Mounting Tape E1320H is a professional-grade, double-coated foam tape specifically engineered for flexographic printing applications. This yellow foam mounting tape features a 0.020 inch (0.51 mm) thickness with medium soft density foam, making it ideal for printing combinations of solids and process with halftone dots. The tape is designed to securely bond flexographic photopolymer plates to print sleeves or steel cylinders while preventing plate edge lifting during high-speed printing operations.
This advanced mounting solution incorporates air release technology with a specialized plate-side adhesive system that resists edge lifting and eliminates bubble problems for virtually air-free mounting. The differential acrylate adhesive system features a unique cross-hatch pattern from the release liner that creates micro-channels, allowing entrapped air to escape and ensuring smooth, bubble-free plate application. The tape measures 54 inches wide by 36 yards long and comes as 1 roll per case, making it suitable for wide-web presses used in flexible packaging industries.
The E1320H tape is manufactured with engineered acrylic adhesives on both sides - the plate-side adhesive is optimized for mounting photopolymer plates with higher adhesion for challenging print conditions using thick plates or small print sleeves, while the sleeve/cylinder-side adhesive ensures clean removal when demounting. With a 24-month shelf life and 2-year warranty from date of manufacture, this industrial-grade tape delivers consistent performance, tight caliper tolerance, and clean plate removal without adhesive residue, making it an essential component for professional flexographic printing operations.
Key Features
- 0.020 inch (0.51 mm) double-coated foam tape with air release feature for bubble-free mounting
- Medium soft density foam ideal for printing combinations of solids and process with halftone dots
- Plate-side adhesive technology designed to resist edge lifting on flexographic print plates
- Higher plate side adhesion for challenging print conditions with thick plates or small print sleeves
- Cross-hatch pattern release liner creates micro-channels for air escape and smooth plate application
- Clean removal from both plate and sleeve/cylinder without adhesive residue
- Engineered differential acrylate adhesive system on both sides for optimal bonding
- Tight caliper tolerance for consistent print registration across different manufacturing lots
- Compressible foam withstands long and high-speed print runs
- Yellow foam color indicates medium soft density composition
Technical Specifications
| Specification |
Value |
| Product Number | E1320H |
| 3M ID | 7100314605 |
| UPC | 00068060006097 |
| Application Thickness (Imperial) | 20 mil |
| Application Thickness (Metric) | 0.5 mm |
| Overall Width (Imperial) | 54 in |
| Overall Width (Metric) | 1,371.6 mm |
| Overall Length (Imperial) | 36 yd |
| Overall Length (Metric) | 32.918 m |
| Product Color | Yellow |
| Adhesive Type | Differential Acrylate |
| Backing Material | Polyethylene Foam |
| Primary Liner | Polycoated Polyester |
| Primary Liner Thickness (Imperial) | 4.5 mil |
| Primary Liner Thickness (Metric) | 0.11 mm |
| Application | Flexographic Plate Mounting |
| Print Quality | Combination Printing - Medium Soft |
| Print Quality Series | 13 Series |
| Brand | Cushion-Mount™ |
| Clean Removal | Yes |
| Industries | Print |
| Shelf Life | 24 Months |
| Urethane Sleeves Compatible | Yes |
| Warranty Period | 2 Years from Date of Manufacture |
| Packaging | 1 Roll/Case |
Order 3M Cushion-Mount Plus Plate Mounting Tape E1320H Yellow 54in at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
