Description

Shop 3M Cushion-Mount Plus Plate Mounting Tape E1315H Yellow 15mil In Iraq Best Prices

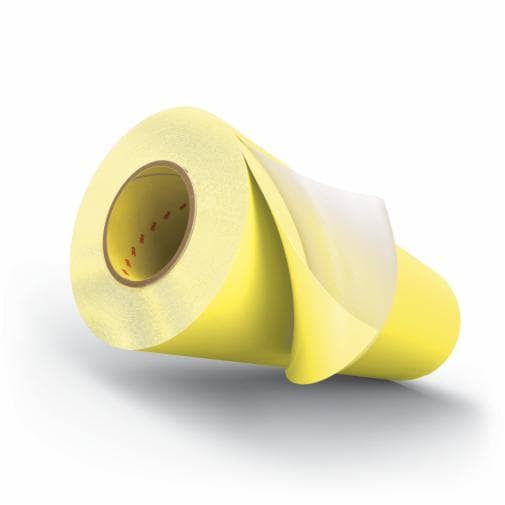

Professional-grade yellow foam plate mounting tape for flexographic printing with air release technology, medium soft density, and high plate-side adhesion for bubble-free mounting and clean removal.

The 3M™ Cushion-Mount™ Plus Plate Mounting Tape E1315H is a premium yellow foam mounting tape specifically engineered for flexographic printing applications. This 15 mil (0.38 mm) double-coated foam tape features advanced air release technology with differential acrylate adhesive on both sides, designed to securely bond flexographic photopolymer plates to print sleeves or steel cylinders while preventing edge lifting during high-speed printing operations. The medium soft density foam is ideal for printing combinations of solids and process colors with halftone dots, providing consistent print quality across narrow web presses. This professional-grade tape incorporates innovative microchannels created by a crosshatched pattern from the release liner, allowing entrapped air to escape naturally for virtually bubble-free mounting. The plate-side adhesive technology provides higher plate-side adhesion for challenging print conditions involving thick plates or small print sleeves, while the sleeve-side adhesive ensures clean removal without adhesive residue. With a manufactured target thickness of 17 mil (0.43 mm) and polyethylene foam backing protected by a 4.5 mil polycoated polyester liner, this tape delivers superior performance and reliability. Designed for industrial and occupational use only, the E1315H tape maintains tight caliper tolerance for consistent print registration across multiple manufacturing lots. The product features a 24-month shelf life and 2-year warranty from the date of manufacture, making it a dependable choice for professional printing facilities requiring high-quality, consistent results. Clean removal from both the plate and print cylinder ensures quick changeovers and minimal downtime in production environments.

Key Features

Double-coated foam tape with air release feature for bubble-free mounting
Differential acrylate adhesive system on both plate and sleeve sides
Medium soft density foam ideal for combination printing with solids and halftone dots
High plate-side adhesion for challenging print conditions with thick plates
Clean removal without adhesive residue from plates and print cylinders
Microchannels created by crosshatched pattern for enhanced air escape
Tight caliper tolerance for consistent print registration across multiple lots
Yellow foam color indicates medium soft density for easy identification
Designed for narrow web presses for tag and label printing
24-month shelf life with 2-year warranty from date of manufacture

Technical Specifications

Specification	Value
Product Number	E1315H / 1315H
3M ID	7100133117
Application Thickness (Imperial)	15 mil
Application Thickness (Metric)	0.381 mm
Manufactured Target Thickness (Imperial)	17 mil
Manufactured Target Thickness (Metric)	0.43 mm
Product Color	Yellow
Adhesive Type	Differential Acrylate
Backing Material	Polyethylene Foam
Primary Liner Material	Polycoated Polyester
Primary Liner Thickness (Imperial)	4.5 mil
Primary Liner Thickness (Metric)	0.11 mm
Air Release Feature	Yes
Print Quality	Combination Printing - Medium Soft
Print Quality Series	13 Series
Product Form	Roll
Application	Flexographic Plate Mounting
Compatible Plate Types	Photopolymeric Plates
Compatible Cylinders	Stainless Steel Cylinder, Urethane Sleeve, Composite Sleeve
Clean Removal	Yes
Overall Length (Metric)	22.86 m
Brand	Cushion-Mount™
Industries	Print
Shelf Life	24 Months
Warranty Period	2 Years from Date of Manufacture

Order 3M Cushion-Mount Plus Plate Mounting Tape E1315H Yellow 15mil at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
